Antenna Types

Summary
  • Every antenna on this page is a different answer to the same tradeoff described on the Overview page: gain vs. directionality vs. bandwidth vs. physical size.
  • Organized into the standard antenna taxonomy: Wire, Travelling Wave, Reflector, Microstrip, Log-Periodic, Aperture, Telescopes, and Other.
If you are confused...

This page assumes the parameters covered on Overview — gain, radiation pattern, polarization, bandwidth. If a term here doesn't make sense, that's the page to check first.

Wire Antennas

The simplest and most fundamental category — a wire (or wire-like conductor) shaped and sized to resonate at the target frequency.

Short Dipole

Short dipole antenna

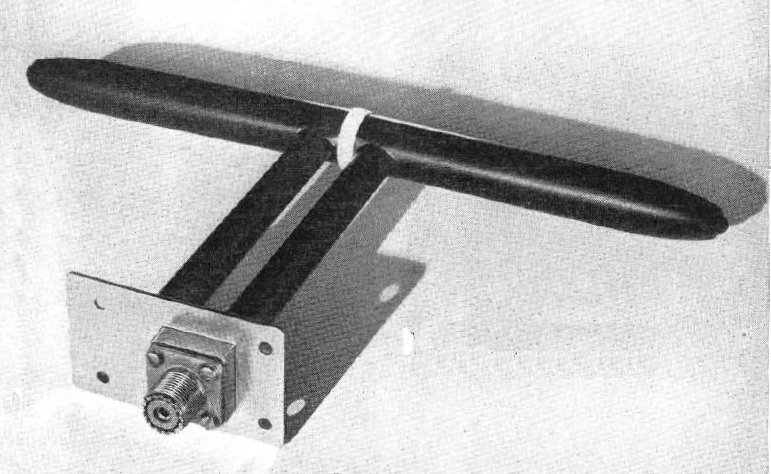

Figure 1. A short dipole — much shorter than a half-wavelength1

A dipole made much shorter than half a wavelength — electrically small, simpler to analyze, but with lower radiation resistance and efficiency than a properly resonant dipole.

Dipole Antenna

Half-wave dipole antenna

Figure 2. Dipole antenna used by the radar altimeter in an airplane2

The fundamental two-element antenna — see the full treatment under Half-Wave Dipole below.

Half-Wave Dipole

Half-wave dipole antenna

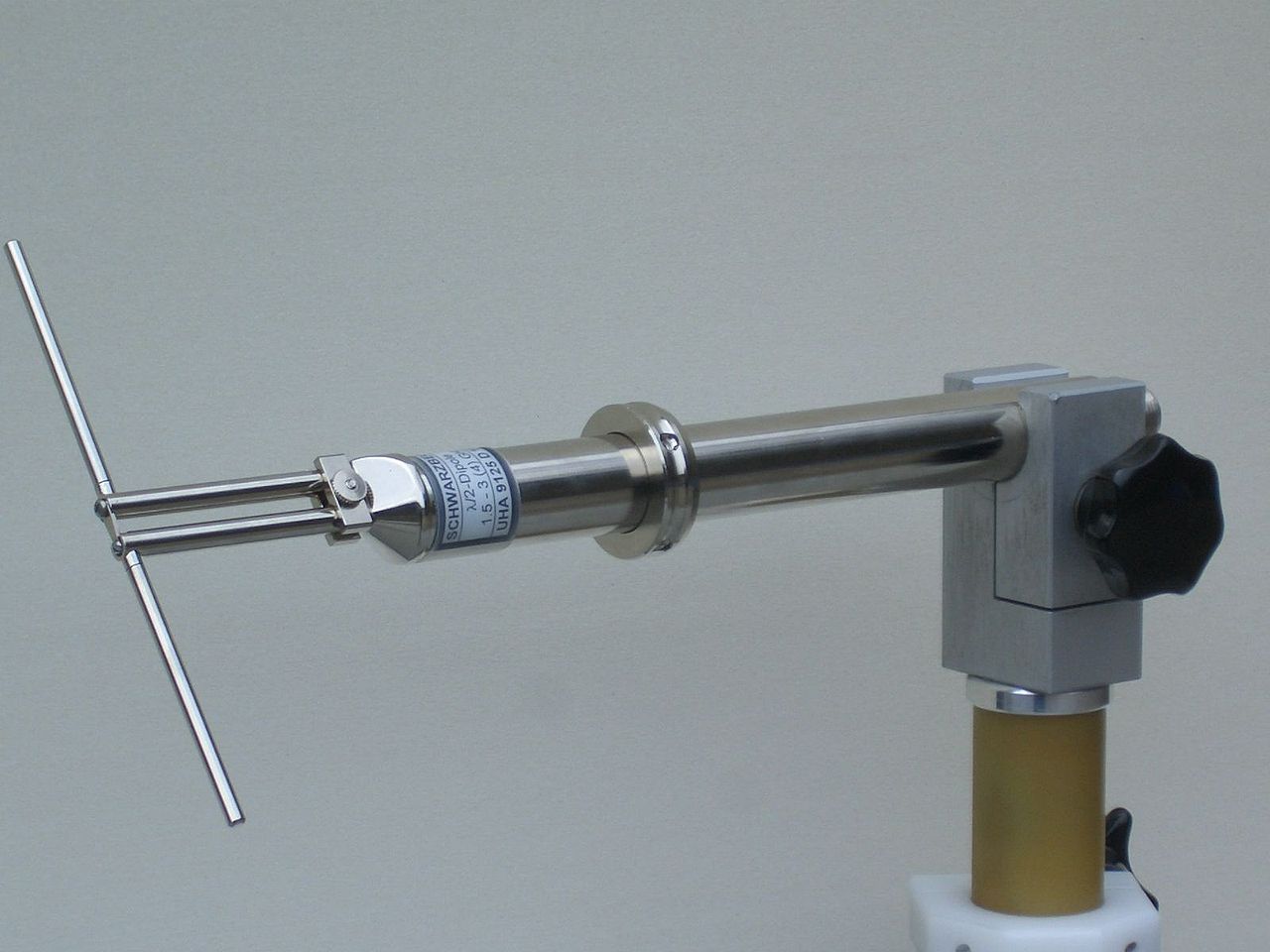

Figure 3. A half-wave dipole — two quarter-wavelength elements fed at the center2

The classic resonant length — two quarter-wavelength elements fed at the center, radiating in an omnidirectional "donut" pattern around its axis.

Broadband Dipoles

Broadband dipole antenna with fattened elements

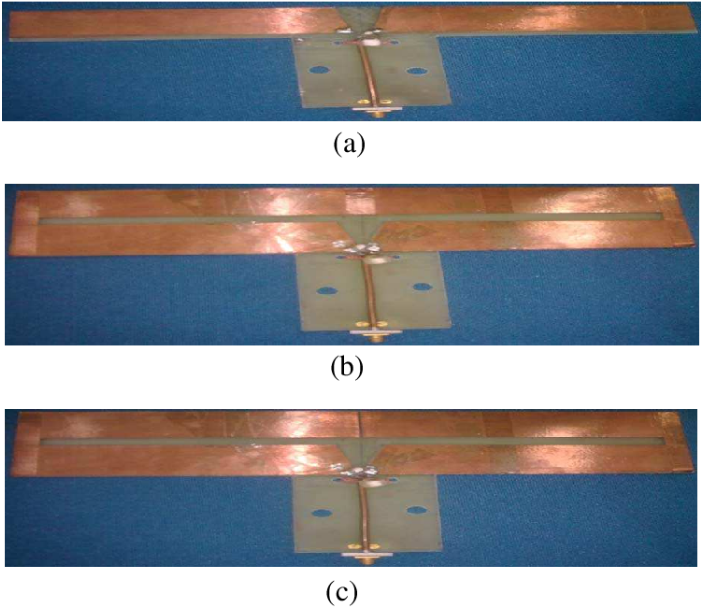

Figure 4. A broadband dipole — fattened, cylindrical, or biconical elements instead of thin wire3
(a) Photograph of broadband dipole antenna.
(b) Photograph of broadband folded dipole antenna.
(c) Photograph of broadband bent dipole antenna.

A dipole built from fattened, cylindrical, or biconical elements instead of thin wire — thickness trades some of the dipole's simplicity for meaningfully wider bandwidth.

Monopole Antenna

Monopole whip antenna

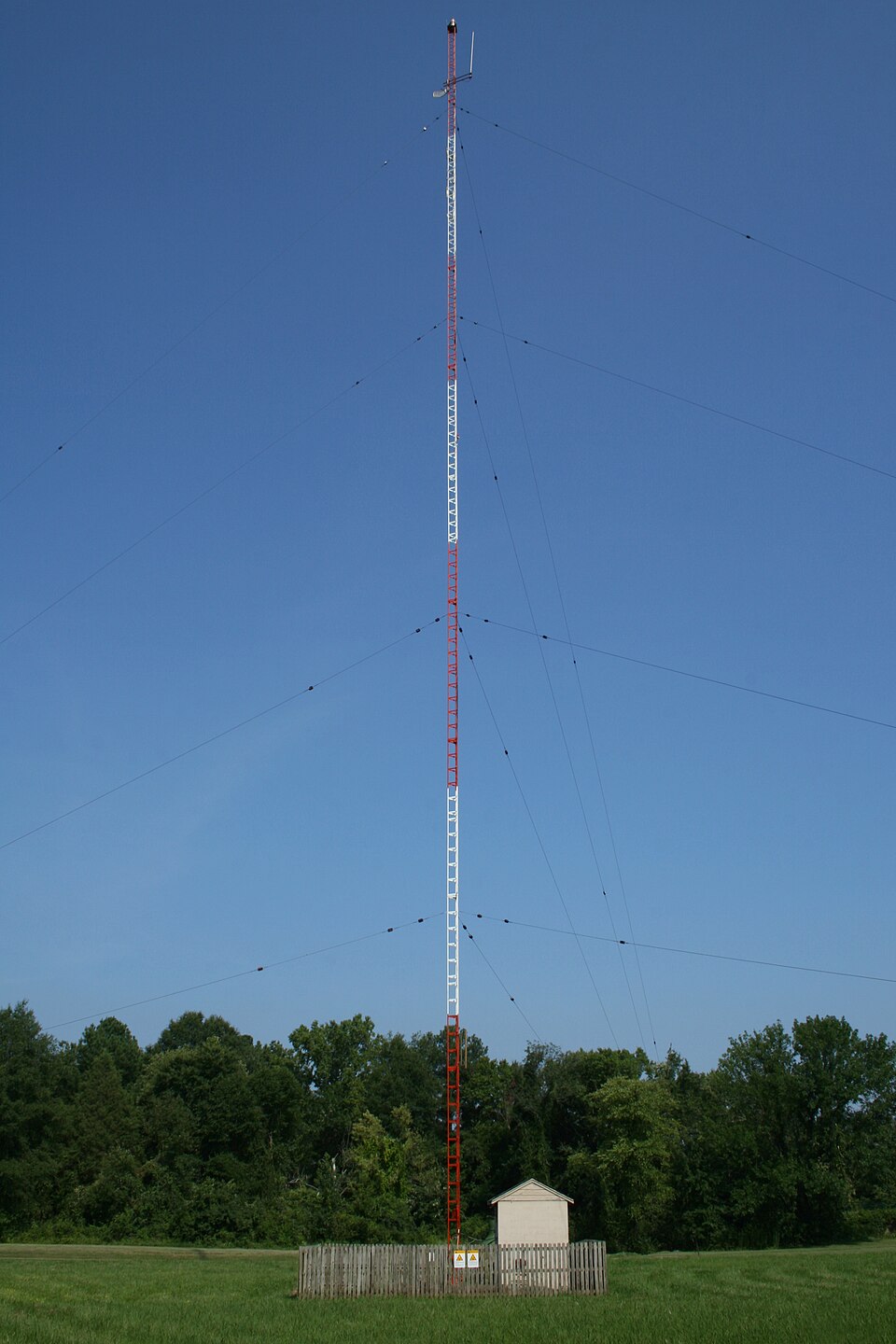

Figure 5. A typical mast radiator monopole antenna of an AM radio station in Chapel Hill, North Carolina. The metal mast itself is connected to the transmitter and radiates the radio waves. It is mounted on a ceramic insulator to isolate it from the ground. The other terminal of the transmitter is connected to a radial ground system consisting of cables buried under the field.4

Effectively half a dipole — a single quarter-wavelength element over a ground plane, which mirrors the missing half. The classic car/handheld "whip" antenna, at half the physical length of an equivalent dipole.

Folded Dipole Antenna

Folded dipole antenna

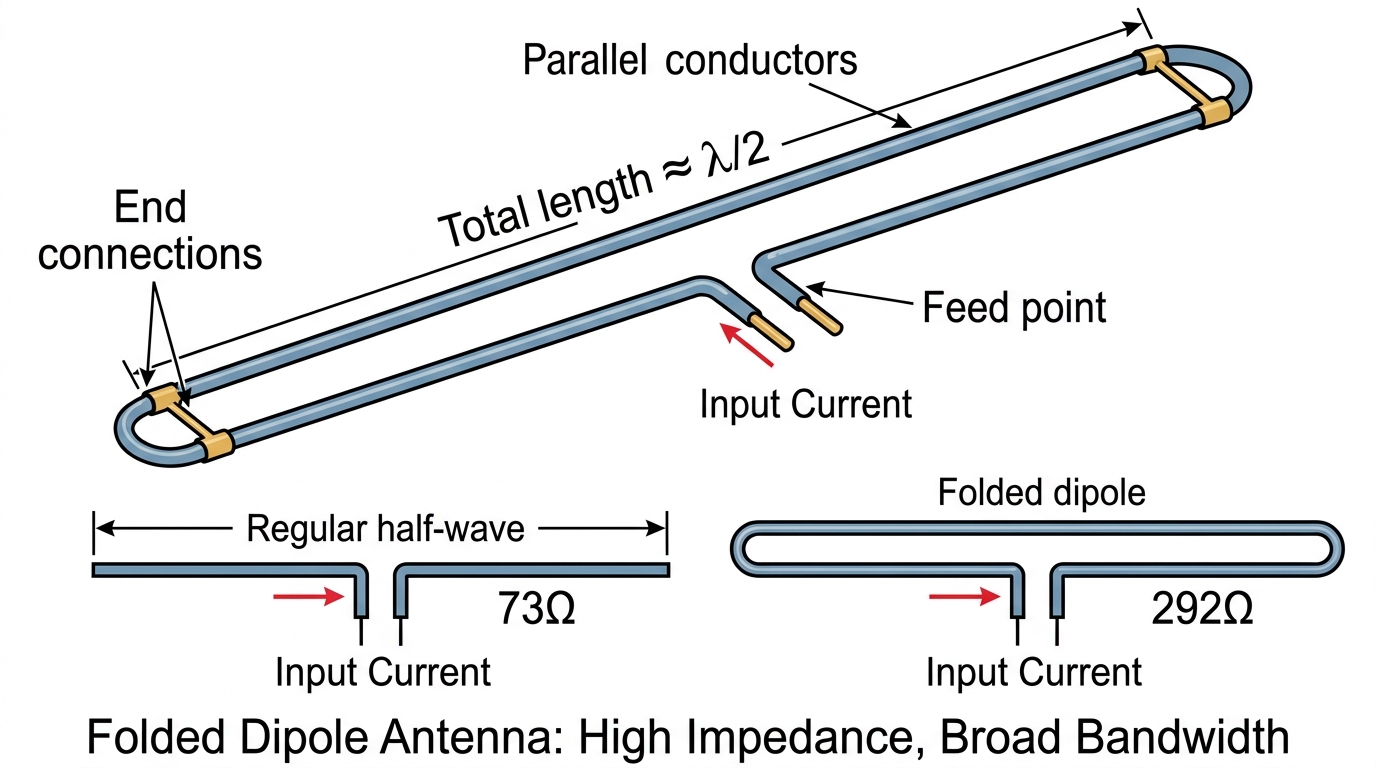

Figure 6. A folded dipole — two parallel conductors joined at both ends

A dipole folded back on itself into two parallel conductors joined at both ends — raises the feedpoint impedance (~300 Ω vs. a standard dipole's ~73 Ω) and widens bandwidth. The standard driven element in a Yagi-Uda.

Loop Antenna

Loop antenna

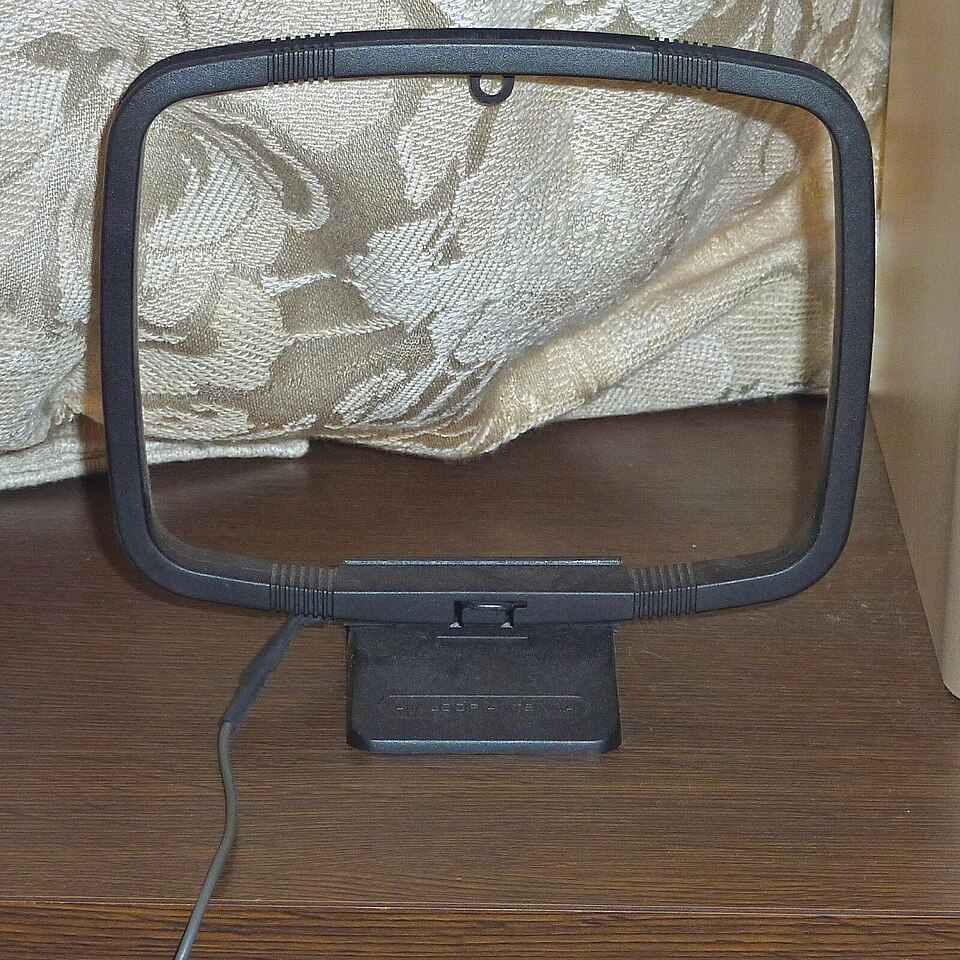

Figure 7. A loop antenna: Small loop antenna used for receiving, consisting of about 10 turns around a 12-by-10-centimeter (4.5-by-4-inch) rectangle.5

A closed conductive loop. Small loops (circumference ≪ wavelength) respond primarily to the magnetic field component — common in AM radio receivers and RFID. Large loops (circumference ≈ 1 wavelength) behave more like a folded dipole.

Cloverleaf Antenna

Cloverleaf antenna

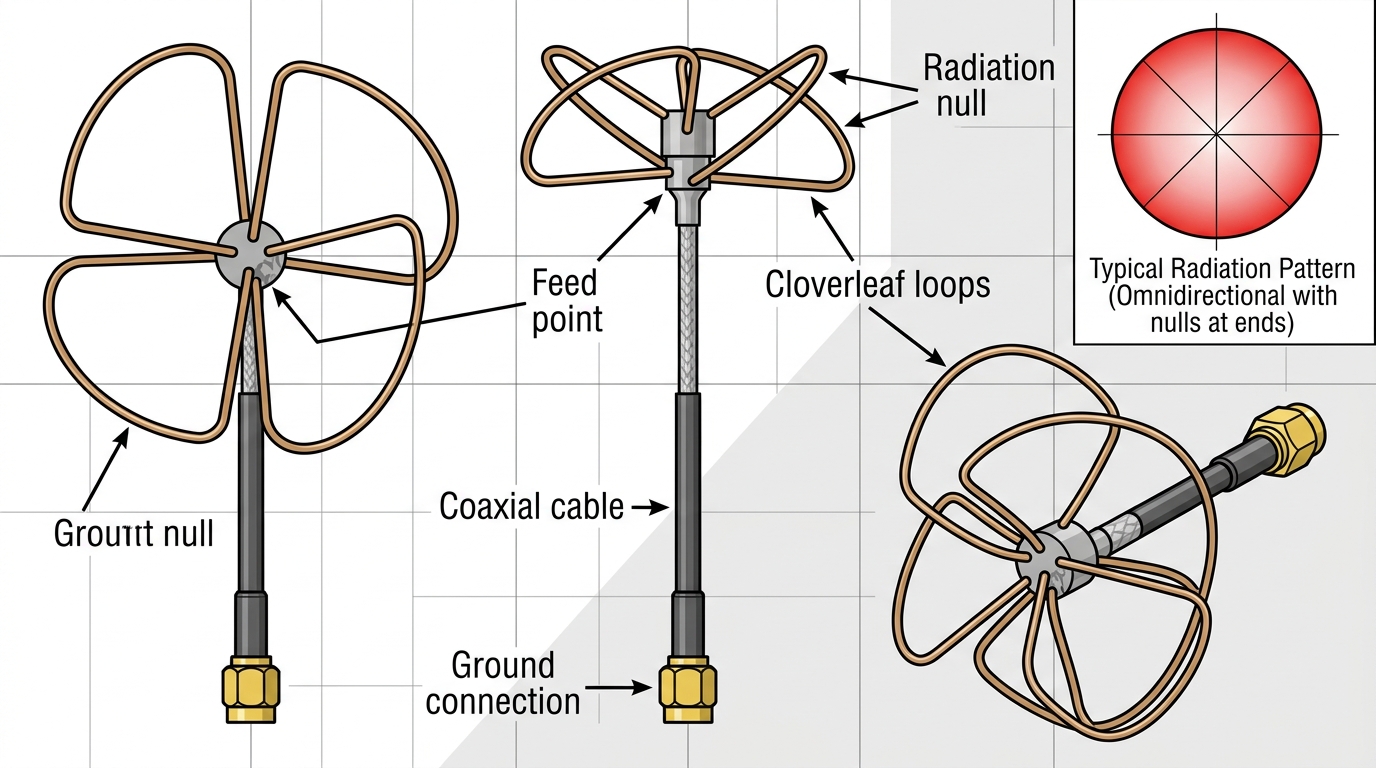

Figure 8. A cloverleaf antenna — multiple small loops arranged radially

Multiple small loop elements arranged in a circular, clover-like pattern to produce circular polarization with a broad, near-omnidirectional pattern — a common choice for FPV drone video links.

Travelling Wave Antennas

Antennas where the current wave travels progressively along the structure, rather than setting up a simple standing-wave resonance the way a basic dipole does.

Helical Antennas

Helical antenna

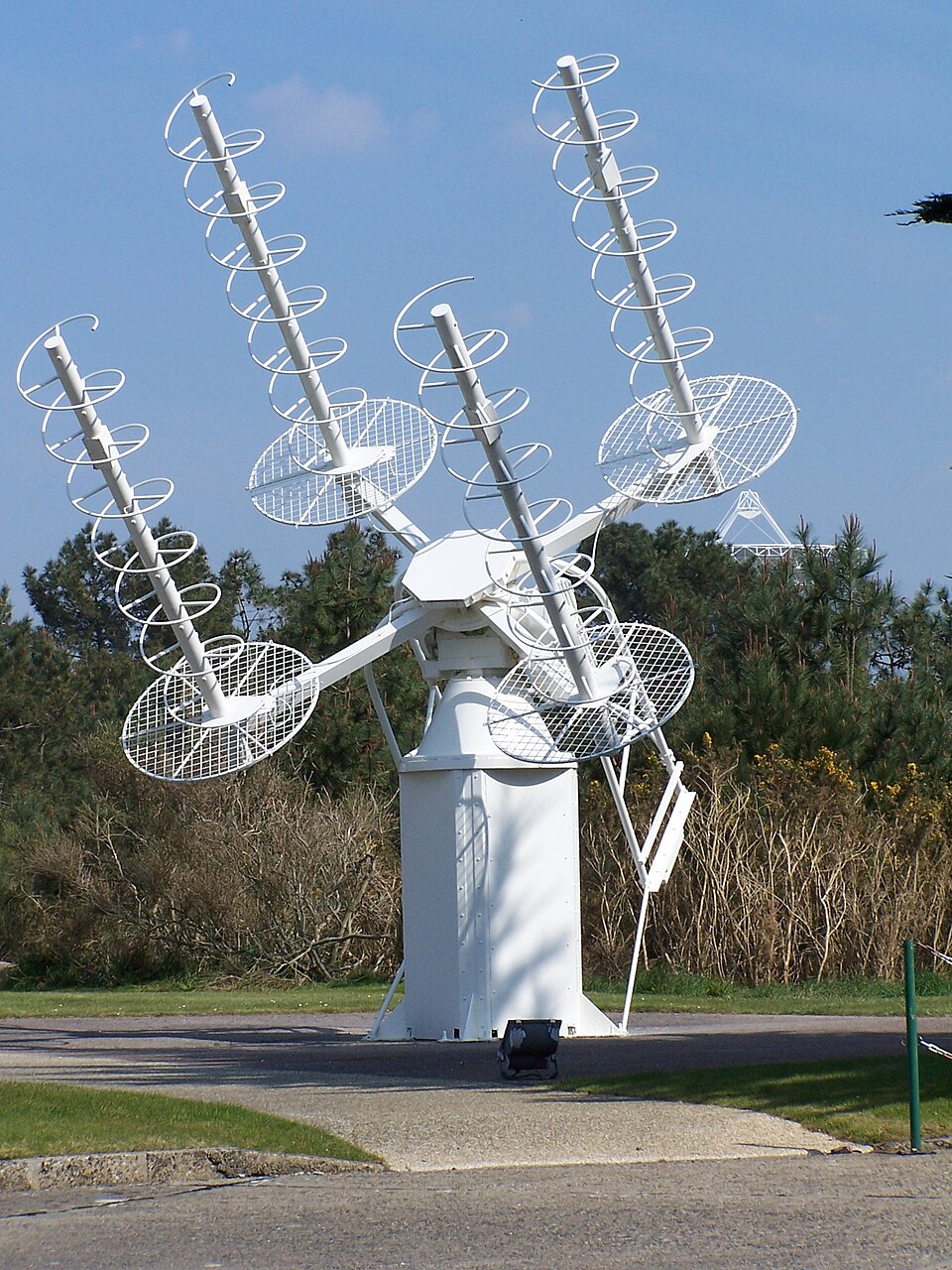

Figure 9. Array of four axial-mode helical antennas used as a satellite tracking-acquisition antenna, Pleumeur-Bodou, France6

A wire wound into a helix. In normal mode (helix small vs. wavelength), it behaves like a short dipole — omnidirectional. In axial mode (helix circumference ≈ 1 wavelength), it radiates a directional, circularly polarized beam along its axis — the standard choice for satellite and GPS ground antennas.

Yagi-Uda Antennas

Yagi-Uda directional antenna

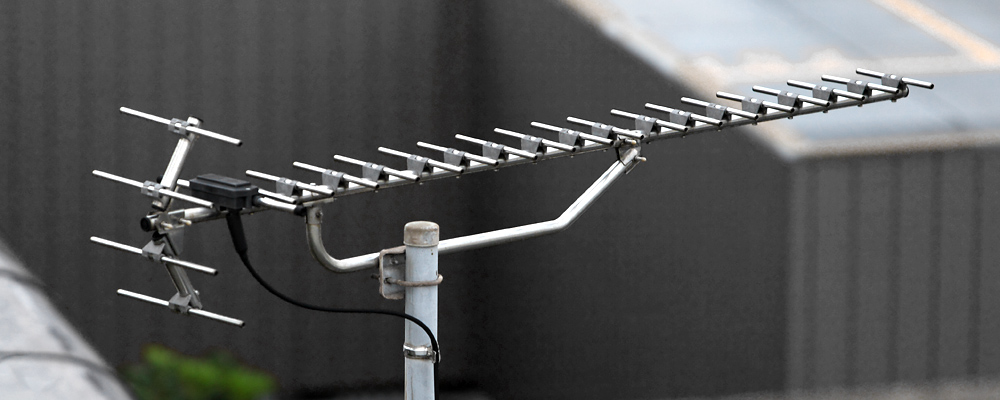

Figure 10. A modern high-gain UHF Yagi television antenna with 17 directors, and one reflector (made of four rods) shaped as a corner reflector7

A driven folded dipole, a reflector element behind it, and one or more director elements in front, combining to concentrate gain into one direction. More directors generally means more gain and a narrower beam, at the cost of physical length. The classic rooftop TV antenna shape.

Spiral Antennas

Spiral antenna

Figure 11. Two-arm, tightly-wrapped, logarithmic spiral antenna8

A conductor wound into a spiral (planar or conical). The self-similar geometry makes spirals inherently broadband and circularly polarized — common in direction-finding, electronic warfare receivers, and UWB applications.

Reflector Antennas

Antennas that use a separate reflecting structure to reshape a simpler feed antenna's pattern into something with much higher gain.

Corner Reflector

Corner reflector antenna

Figure 12. A corner reflector antenna — a dipole in front of two angled panels9

A driven dipole placed in front of two flat reflecting panels meeting at an angle (commonly 90°) — a simple, rugged way to boost a dipole's gain and directivity, common in UHF TV reception and simple radar.

Parabolic Reflector (Dish Antenna)

Parabolic dish antenna

Figure 13. A 28.5 meter parabolic satellite communications antenna at Erdfunkstelle Raisting (Raisting Earth Station), Bavaria, Germany, the biggest facility for satellite communication in the world. It has a Cassegrain-type feed, transmits at 6 Ghz and receives at 4 Ghz with a gain of 64.2 dB10

A curved paraboloid reflector that focuses received energy onto a small feed antenna at its focal point (or, in reverse, collimates energy from that feed into a narrow beam). Extremely high gain, but only within a very narrow beam — the technology behind satellite dishes and point-to-point microwave links.

Microstrip Antennas

Flat, low-profile antennas built directly onto a PCB substrate — the most manufacturable, space-efficient category, and the dominant choice wherever board space is tight.

Rectangular Microstrip (Patch) Antennas

Microstrip patch antenna on PCB

Figure 14. A microstrip antenna array for a satellite television receiver11

A flat conductive patch etched onto a PCB over a ground plane. Not the highest-gain option available, but its flat, PCB-native form factor makes it extremely practical — used standalone and very commonly as the individual radiating elements inside a larger phased array.

Planar Inverted-F Antennas (PIFA)

PIFA antenna

Figure 15.
A: printed inverted-F antenna
B: meandered printed inverted-F antenna
C: patch antenna
D: Planar inverted-F antenna (PIFA)12

A patch-like antenna with a shorting pin or wall between the patch and the ground plane, which effectively folds the resonant path and shrinks the physical footprint compared to a plain patch at the same frequency. The dominant antenna type inside smartphones, thanks to that compact size and better proximity-to-body (SAR) behavior.

Log-Periodic Antennas

Antennas built from a family of elements sized on a repeating, logarithmic scale — trading some gain for exceptionally wide bandwidth, since only a subset of elements is actively resonant at any given frequency.

Bow Tie Antennas

Bow tie antenna

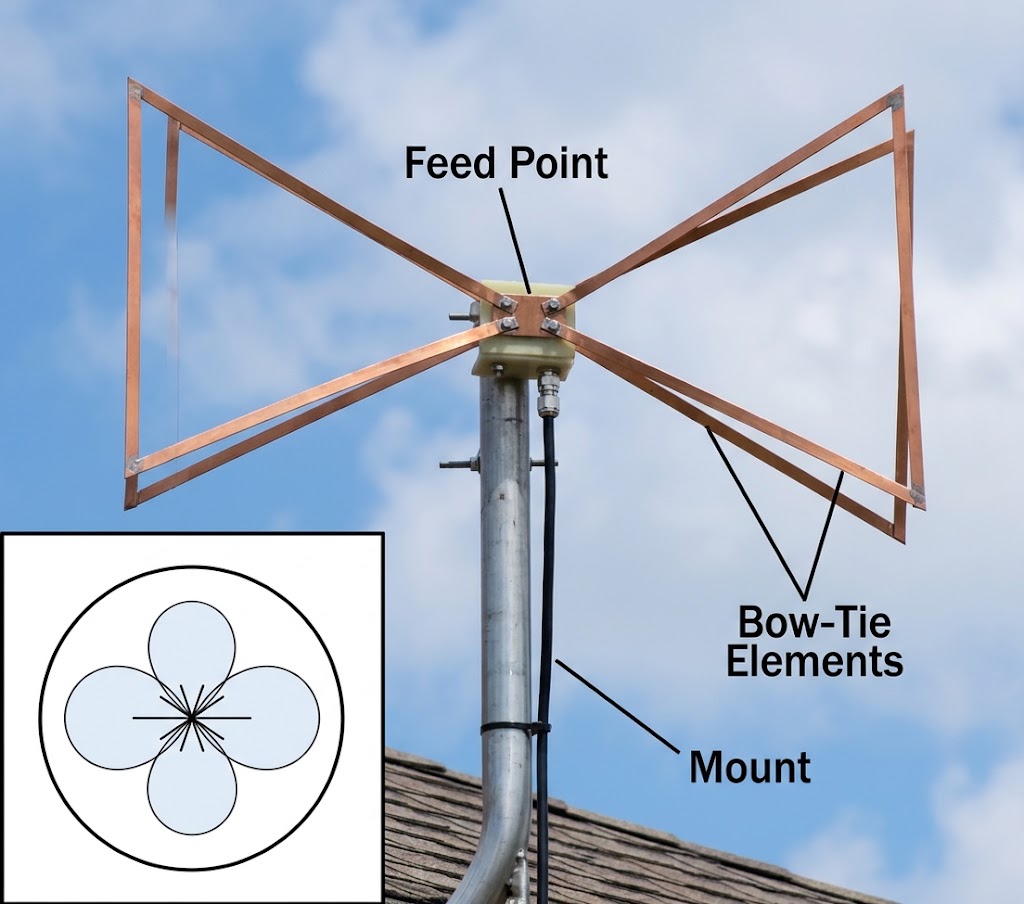

Figure 16. A bow tie antenna

Two triangular ("bow tie" shaped) elements — the flared, self-complementary geometry is inherently broadband. Common in UHF TV reception and as feed elements for reflector antennas.

Log-Periodic Dipole Array (LPDA)

Log-periodic dipole array antenna

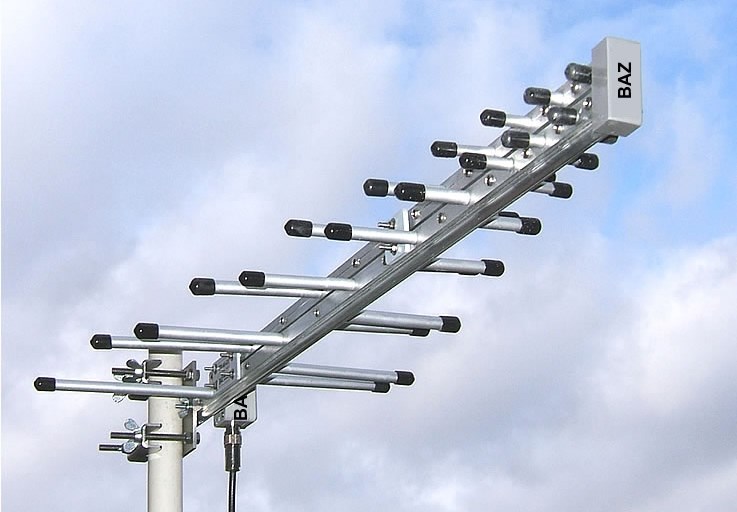

Figure 17. Log-periodic antenna, 400–4000 MHz13

An array of dipole elements with progressively varying length and spacing, scaled by a constant logarithmic factor. At any given operating frequency, only a small "active region" of elements radiates efficiently — the rest stay comparatively inactive — which is what gives an LPDA bandwidth spanning many octaves. Common in EMC testing and multi-band HF/VHF communications.

Aperture Antennas

Antennas that radiate through an opening (an "aperture") in a conductive surface or waveguide, rather than through a resonant wire or patch structure.

Slot Antenna

Slot antenna

Figure 18. Cross section of similar marine radar antenna with part of plastic radome removed, showing slots in waveguide.14

A slot cut into a conductive sheet or waveguide wall. Radiates similarly to a dipole (a complementary structure, by Babinet's principle) but with rotated polarization — common on aircraft skins and in slotted-waveguide arrays.

Cavity-Backed Slot Antenna

Cavity-backed slot antenna

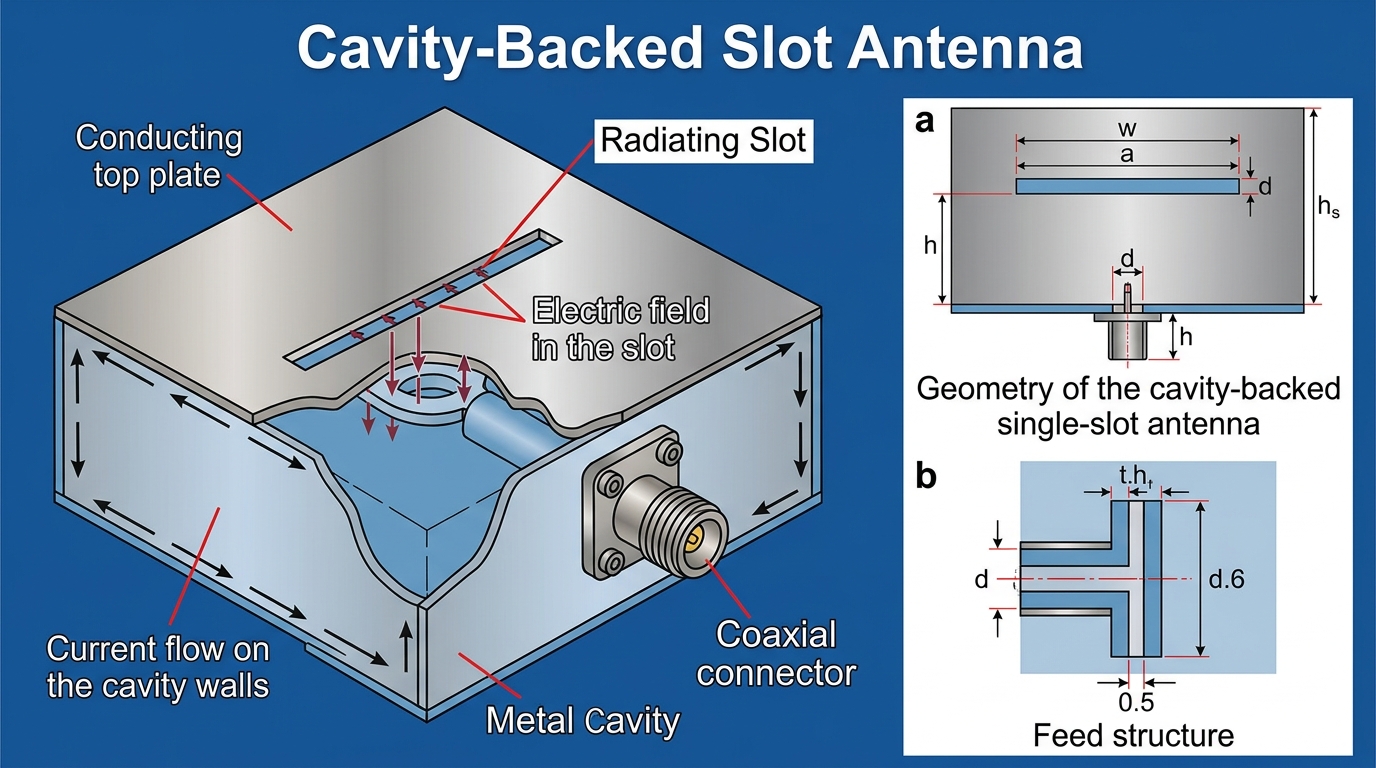

Figure 19. A cavity-backed slot antenna

A slot antenna backed by an enclosed cavity, which makes it unidirectional — radiating only from the open slot side — instead of bidirectional like a plain slot, and improves front-to-back ratio.

Inverted-F Antenna (IFA)

Inverted-F antenna

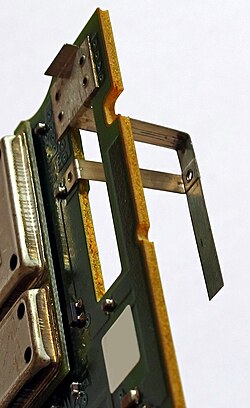

Figure 20. An inverted-F antenna in a DECT (a technology used for cordless phones and similar devices) base station12

A monopole folded into an "F" shape with an added short/ground stub for impedance matching. PIFA is essentially the planar (flat, 2D) version of this same idea.

Slotted Waveguide Antenna

Slot antenna

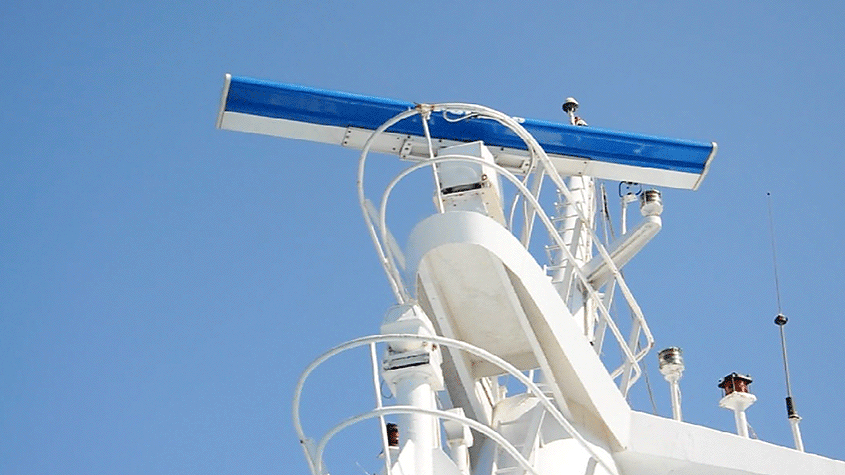

Figure 21. X-band slotted waveguide marine radar antenna on ship, 8–12 GHz. The antenna radiates a narrow vertical fan-shaped beam of microwaves, scanning the entire 360° water surface around the ship with each rotation.14

An array of slots cut along a waveguide, each radiating a small portion of the guided energy; combined, they form a directional, high-gain array — the classic antenna shape behind marine and airport surveillance radar.

Horn Antenna

Horn antenna on waveguide

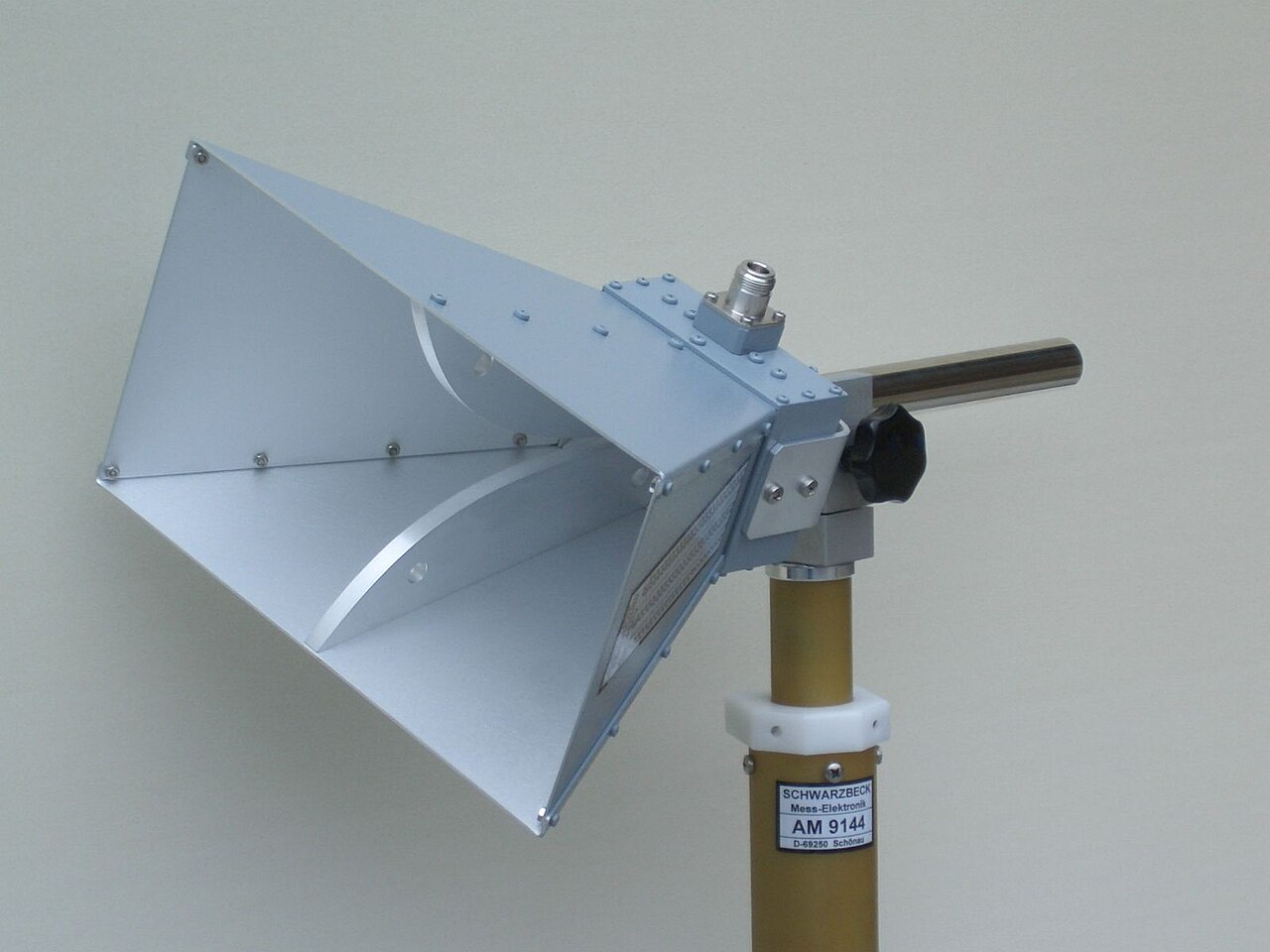

Figure 22. Pyramidal microwave horn antenna, with a bandwidth of 0.8 to 18 GHz. A coaxial cable feedline attaches to the connector visible at top. This type is called a ridged horn; the curving fins visible inside the mouth of the horn increase the antenna's bandwidth.15

A flared waveguide opening that gradually transitions a guided wave into free-space radiation, minimizing reflections in the process. Common in microwave/satellite ground equipment and as a calibrated reference antenna in RF test labs.

Vivaldi Antenna

Vivaldi tapered-slot antenna

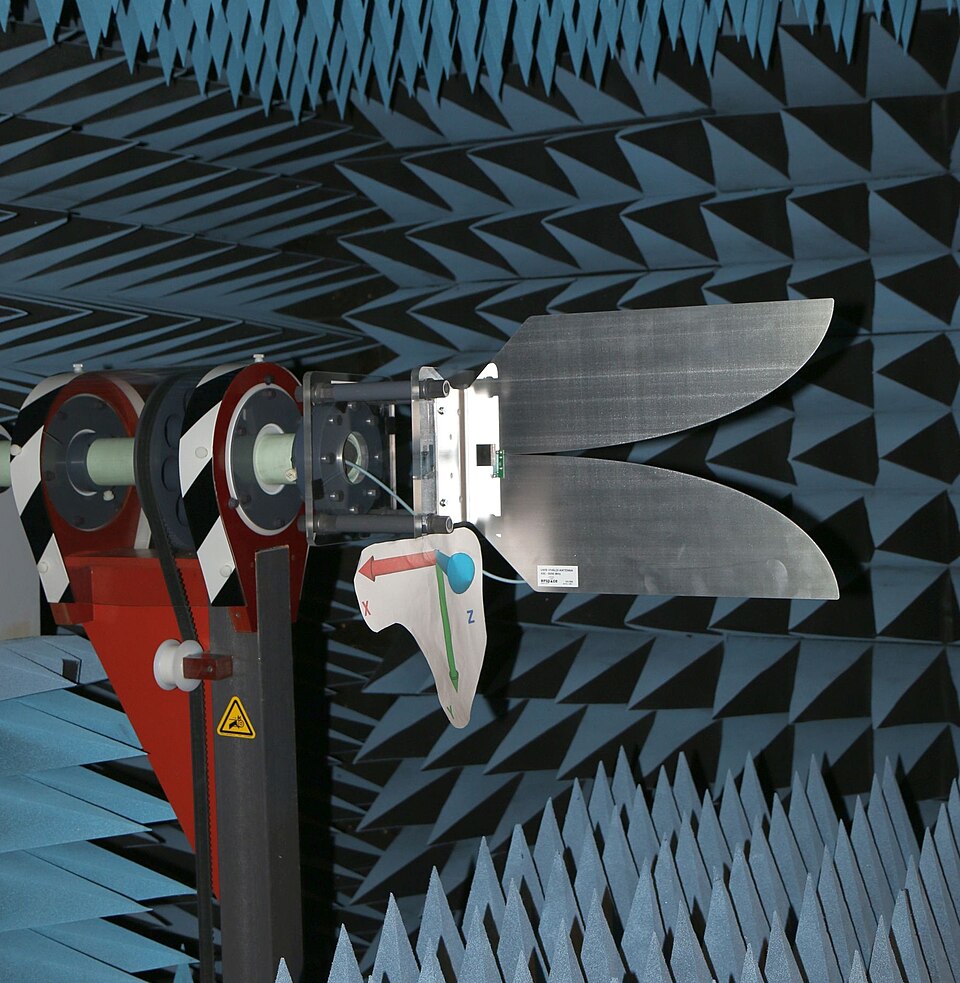

Figure 23. A single-piece sheet metal Vivaldi antenna being tested in an anechoic chamber16

A planar, tapered-slot antenna where the slot flares exponentially — a flat, low-profile shape that gives exceptionally wide (UWB) bandwidth. Used in UWB radar, ground-penetrating radar, and as wideband phased array elements.

Radio Telescopes

Radio telescope dish array

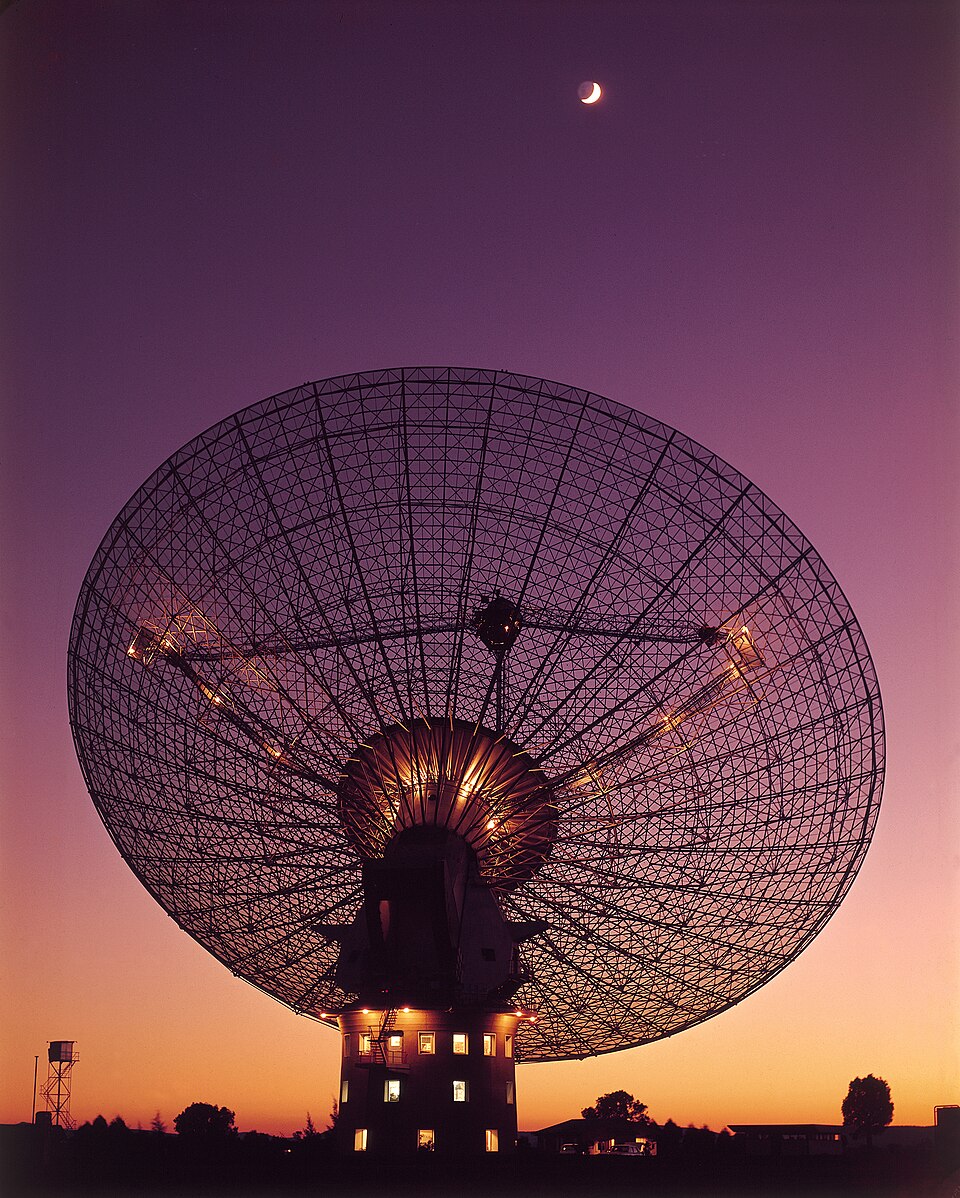

Figure 24. The 64-meter radio telescope at Parkes Observatory as seen in 1969, when it was used to receive live televised video from Apollo 1117

Radio telescopes aren't really a distinct antenna geometry so much as an application area — they're typically built as extremely large parabolic reflectors, or as massive phased arrays (e.g., LOFAR, the Square Kilometre Array), optimized for extreme sensitivity to very weak astronomical signals rather than for efficient transmission.

Other Antennas

Specialized designs that don't fit neatly into the categories above.

NFC Antennas

NFC loop antenna

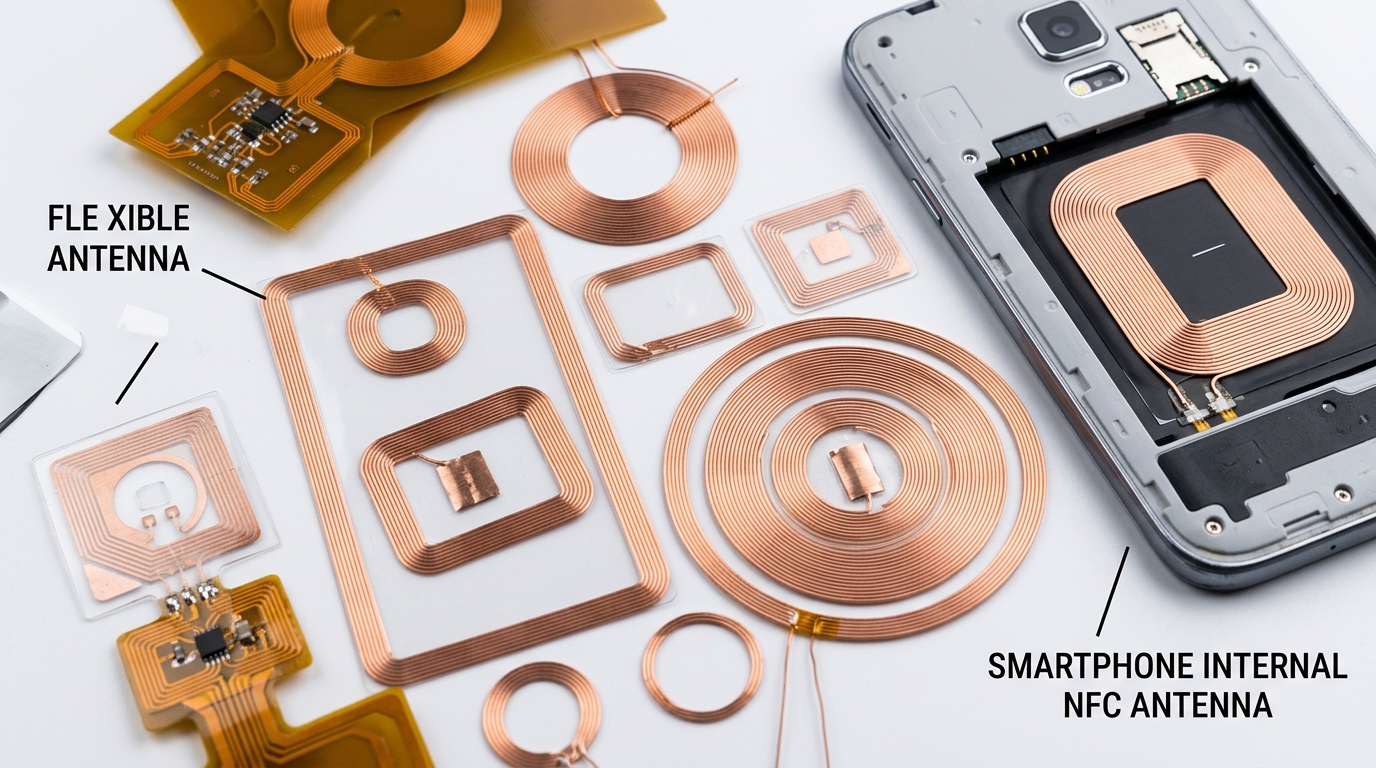

Figure 25. An NFC loop antenna

Loop antennas operating at 13.56 MHz, working through near-field magnetic inductive coupling between two closely-spaced coils rather than true far-field radiation — the technology behind contactless payment and access badges.

Fractal Antennas

Fractal antenna

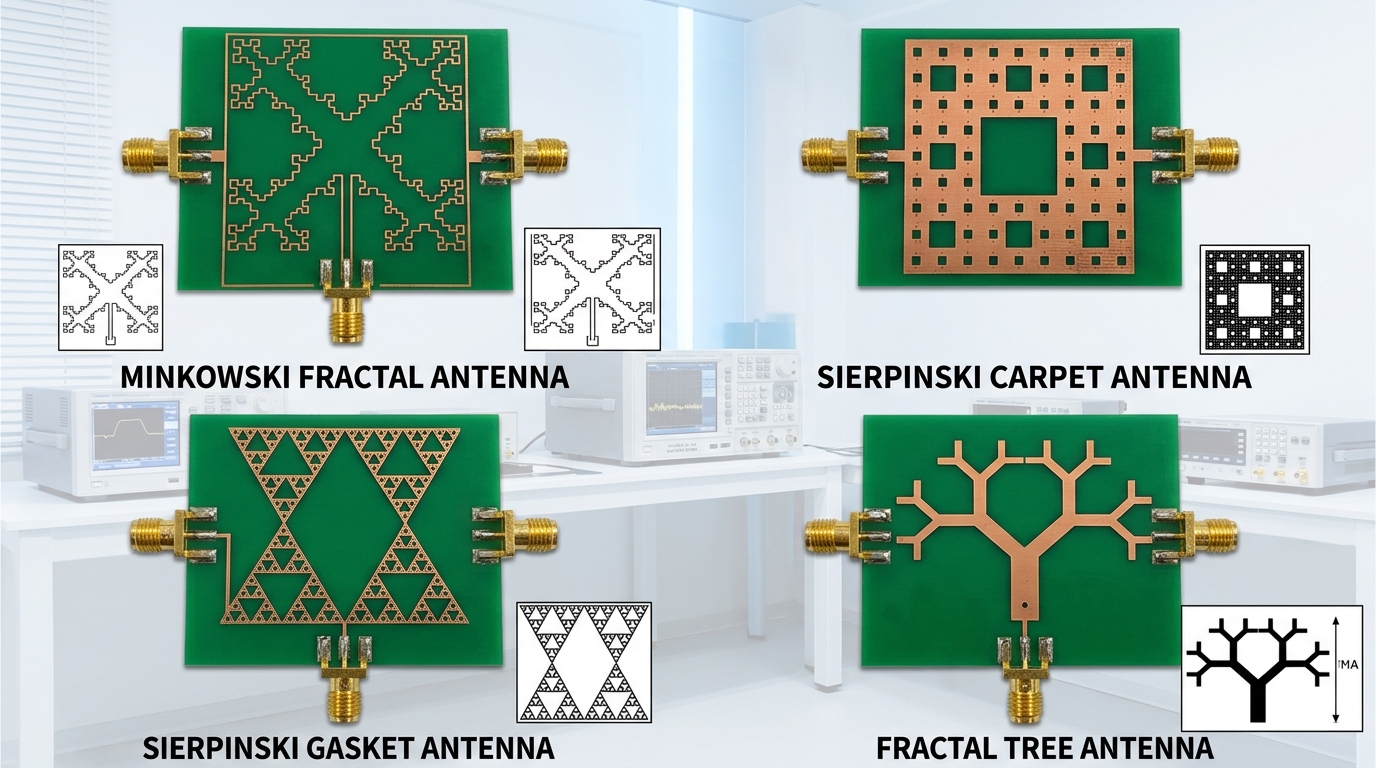

Figure 26. A fractal antenna

Elements shaped using fractal (self-similar, repeating-at-multiple-scales) geometry — that self-similarity naturally supports multiple resonant frequencies, giving multi-band or wideband behavior in a compact area.

Wearable Antennas

Wearable textile antenna

Figure 27. A wearable/textile antenna

Antennas built into or onto clothing/textiles/flexible substrates, with design challenges specific to that context: bending, close body proximity (detuning and SAR/absorption), and washability.

Useful Resources

  • Antenna Theory — a well-regarded, freely available antenna fundamentals reference
  • Overview — antenna basics and the key parameters referenced throughout this page
