RRC¶
Summary
- RRC (Radio Resource Control) is the control-plane protocol between the UE and the gNB. It sits above PDCP, RLC, and MAC in the NR Access Stratum.
-
It's responsible for:6
- Broadcast of System Information related to AS and NAS;
- Paging initiated by CN or RAN;
- Establishment, maintenance and release of an RRC connection between the UE and NR RAN including:
- Addition, modification and release of carrier aggregation;
- Addition, modification and release of Dual Connectivity in NR or between LTE and NR [FFS: or between NR and WLAN];
- Security functions including key management;
- Establishment, configuration, maintenance and release of signalling radio bearers and data radio bearers;
- Mobility functions including:
- Handover;
- UE cell selection and reselection and control of cell selection and reselection;
- Context transfer at handover.
- QoS management functions;
- UE measurement reporting and control of the reporting;
- NAS message transfer to/from NAS from/to UE.
-
RRC governs which of three states a UE is in at any given moment —
RRC_IDLE,RRC_INACTIVE, orRRC_CONNECTED— and everything the UE is allowed to do depends on that state.
Think of RRC as:
"The paperwork and rulebook layer — it's what decides whether you're connected, how you're connected, and what you're allowed to do at any given moment."
If you are confused...
To see this more clearly, you can follow the hands-on tutorial with Open5GS and UERANSIM in Try 5G Yourself.
RRC States¶

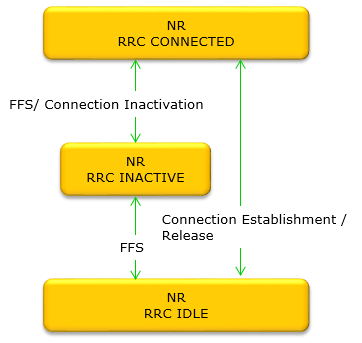

Figure 1. RRC_IDLE / RRC_INACTIVE / RRC_CONNECTED and their transitions1
| State | UE Mobility | AS Context | Typical Use |
|---|---|---|---|
| RRC_IDLE |
|
Not held by network or UE (no AS context stored) | Powered on, no active traffic, battery saving |
| RRC_INACTIVE |
|
Preserved at both UE and last serving gNB | Bursty/intermittent traffic — fast resume to RRC_CONNECTED without a full setup |
| RRC_CONNECTED |
|
Fully established and active at both UE and gNB | Active data transfer or signaling |
Table 1. RRC States
Why RRC_INACTIVE exists?
LTE only had two states — Idle and Connected — and modern smartphone traffic patterns (frequent small bursts of data) meant devices were constantly bouncing between them, generating heavy signalling load and adding latency each time. 5G NR added RRC_INACTIVE as a middle ground: the UE's AS context is preserved at both ends, so resuming to RRC_CONNECTED is a much lighter procedure than a full setup from RRC_IDLE.2
RRC_INACTIVE only applies when the UE is connected to the 5G Core — in Non-Standalone (NSA) deployments, only RRC_CONNECTED is applicable for the NR cell.2
RRC State Transitions¶
| Transition | Triggering Message |
|---|---|
RRC_IDLE → RRC_CONNECTED |
RRC Setup |
RRC_CONNECTED → RRC_IDLE |
RRC Release (no suspend config) |
RRC_CONNECTED → RRC_INACTIVE |
RRC Release (with suspendConfig) |
RRC_INACTIVE → RRC_CONNECTED |
RRC Resume |
RRC_INACTIVE → RRC_IDLE |
RRC Release (received while inactive) |
RRC_CONNECTED → RRC_CONNECTED (recovery) |
RRC Re-establishment (after radio link failure) |
Table 2. RRC State Transitions
Every arrow into RRC_CONNECTED needs RACH first
Setup, Resume, and Re-establishment all require the UE to first go through the RACH procedure — the RRC request message itself (RRCSetupRequest, RRCResumeRequest, or RRCReestablishmentRequest) is what actually gets carried as the payload of Msg3 or MsgA.
RRC Connection Establishment¶
| Step | Message | Direction | Carried Over |
|---|---|---|---|
| 1 | RRCSetupRequest |
UE → gNB | CCCH, inside RACH Msg3/MsgA |
| 2 | RRCSetup |
gNB → UE | CCCH, configures SRB1 |
| 3 | RRCSetupComplete |
UE → gNB | SRB1 — includes the NAS Registration Request |
Table 3. RRC Connection Establishment
This same three-message exchange is what you'll see summarized in an SA registration call flow.3
Purpose
- "I'd like to connect — here's a temporary reason why."
- "Sure, here's your basic radio bearer config."
- "Got it, and by the way, here's my NAS message for the core network."
For how this fits into the bigger picture — SSB, RACH, and RRC working together — see the 5G Overview page.
This is CBRA territory
Initial RRCSetupRequest almost always rides on a contention-based RACH attempt — the network has no idea this UE exists yet, so it can't have reserved a dedicated preamble for it.
RRC Reconfiguration¶
RRCReconfiguration is the single most flexible message in RRC — it's used to add, modify, or release radio bearers; configure measurements; add/remove SCells or secondary cell groups (carrier aggregation, dual connectivity); and, critically, to perform handover.
Reconfiguration with sync (handover)
When RRCReconfiguration includes a reconfigurationWithSync field, it's telling the UE to synchronize to a new cell — this is how NR handover works at the RRC level. Because the target cell already knows this specific UE is coming, the RACH attempt to the new cell is typically contention-free, using a preamble the target gNB reserved in advance.
The UE confirms successful application of the new configuration with RRCReconfigurationComplete.
Purpose
- "Here's your updated configuration — bearers, measurements, maybe even a new cell to synchronize to."
- "Done, and it's working."
RRC Connection Release, Suspend & Resume¶
RRCRelease moves the UE out of RRC_CONNECTED, but how depends on whether it carries a suspendConfig:
- Without
suspendConfig→ the UE goes toRRC_IDLE, and both sides discard the AS context. - With
suspendConfig→ the UE goes toRRC_INACTIVE, keeps its AS context, and is assigned an I-RNTI to identify that stored context for a later resume.
To come back to RRC_CONNECTED from RRC_INACTIVE, the UE sends RRCResumeRequest (carrying its I-RNTI, again via RACH Msg3/MsgA), and the network responds with RRCResume — a much lighter message than RRCSetup, since most configuration is simply restored from the preserved context — followed by RRCResumeComplete.4
Resume vs. Re-establishment
Don't confuse RRC Resume (planned, from RRC_INACTIVE, using a stored context and I-RNTI) with RRC Re-establishment (a recovery attempt after a radio link failure while still notionally in RRC_CONNECTED, using the C-RNTI the UE already had).
RRC Information Elements¶
QXDM Tip
If you're looking at a real device log in QXDM or QCAT, every message in the catalog below shows up under log code 0xB821 — "NR5G RRC OTA Packet". Filtering on that code and decoding the payload will show you the message type field and each IE, in a form that maps directly onto the ASN.1 structures you fill in below.
RRC Message Catalog¶
Before diving into the ASN.1 itself, here's a quick reference for every RRC message defined in the spec, in roughly the order you'd encounter them across a UE's lifecycle — from broadcast, through establishment, through connected-state signalling, to mobility and release.5
Abbreviations
RLC-SAP modes: TM = Transparent Mode, UM = Unacknowledged Mode, AM = Acknowledged Mode. Direction follows the spec's own wording ("UE to Network" / "Network to UE") rather than naming a specific node, since technically it's the NG-RAN, not just the gNB.
Message |
SRB RLC-SAP Logical-channel Direction |
Description |
|---|---|---|
MIB |
No SRB TM BCCH Network → UE | The MIB includes the system information transmitted on BCH. |
SIB1 |
No SRB TM BCCH Network → UE | SIB1 contains information relevant when evaluating if a UE is allowed to access a cell and defines the scheduling of other system information. It also contains radio resource configuration information that is common for all UEs and barring information applied to the unified access control. |
SystemInformation |
No SRB TM BCCH Network → UE | The SystemInformation message is used to convey one or more System Information Blocks or Positioning System Information Blocks. All the SIBs or posSIBs included are transmitted with the same periodicity. |
Paging |
No SRB TM PCCH Network → UE | The Paging message is used for the notification of one or more UEs. |
RRCSystemInfoRequest |
SRB0 TM CCCH UE → Network | The RRCSystemInfoRequest message is used to request SI message(s) required by the UE as specified in clause 5.2.2.3.3 and 5.2.2.3.3a. |
RRCSetupRequest |
SRB0 TM CCCH UE → Network | The RRCSetupRequest message is used to request the establishment of an RRC connection. |
RRCReject |
SRB0 TM CCCH Network → UE | The RRCReject message is used to reject an RRC connection establishment or an RRC connection resumption. |
RRCSetup |
SRB0 TM CCCH Network → UE | The RRCSetup message is used to establish SRB1. |
RRCSetupComplete |
SRB1 AM DCCH UE → Network | The RRCSetupComplete message is used to confirm the successful completion of an RRC connection establishment. |
SecurityModeCommand |
SRB1 AM DCCH Network → UE | The SecurityModeCommand message is used to command the activation of AS security. |
SecurityModeComplete |
SRB1 AM DCCH UE → Network | The SecurityModeComplete message is used to confirm the successful completion of a security mode command. |
SecurityModeFailure |
SRB1 AM DCCH UE → Network | The SecurityModeFailure message is used to indicate an unsuccessful completion of a security mode command. |
UECapabilityEnquiry |
SRB1 AM DCCH Network → UE | The UECapabilityEnquiry message is used to request UE radio access capabilities for NR as well as for other RATs. |
UECapabilityInformation |
SRB1 AM DCCH UE → Network | The IE UECapabilityInformation message is used to transfer UE radio access capabilities requested by the network. |
RRCReconfigurationComplete |
SRB1/SRB3 AM DCCH UE → Network | The RRCReconfigurationComplete message is used to confirm the successful completion of an RRC connection reconfiguration. |
DLInformationTransfer |
SRB1/SRB2 AM DCCH Network → UE | The DLInformationTransfer message is used for the downlink transfer of NAS dedicated information, timing information for the 5G internal system clock, or IAB-DU specific F1-C related information. |
ULInformationTransfer |
SRB1/SRB2 AM DCCH UE → Network | The ULInformationTransfer message is used for the uplink transfer of NAS or non-3GPP dedicated information, or IAB-DU specific F1-C related information. |
DLInformationTransferMRDC |
SRB3 AM DCCH Network → UE | The DLInformationTransferMRDC message is used for the downlink transfer of RRC messages during fast MCG link recovery. |
ULInformationTransferMRDC |
SRB1, SRB3 AM DCCH UE → Network | The ULInformationTransferMRDC message is used for the uplink transfer of MR-DC dedicated information (e.g. for transferring the NR or E-UTRA RRC MeasurementReport message, the FailureInformation message, the UEAssistanceInformation message, the RRCReconfigurationComplete message, the IABOtherInformation message or the NR or E-UTRA RRC MCGFailureInformation message). |
ULInformationTransferIRAT |
SRB1 AM DCCH UE → Network | The ULInformationTransferIRAT message is used for the uplink transfer of information terminated at NR MCG but specified by another RAT. In this version of the specification, the message is used for V2X sidelink communication messages specified in TS 36.331 [10]. |
MeasurementReport |
SRB1, SRB3 AM DCCH UE → Network | The MeasurementReport message is used for the indication of measurement results. |
MeasurementReportAppLayer |
SRB4 AM DCCH UE → Network | The MeasurementReportAppLayer message is used for sending application layer measurement report. |
UEAssistanceInformation |
SRB1, SRB3 AM DCCH UE → Network | The UEAssistanceInformation message is used for the indication of UE assistance information to the network. |
CounterCheck |
SRB1 AM DCCH Network → UE | The CounterCheck message is used by the network to indicate the current COUNT MSB values associated to each DRB and to request the UE to compare these to its COUNT MSB values and to report the comparison results to the network. |
CounterCheckResponse |
SRB1 AM DCCH UE → Network | The CounterCheckResponse message is used by the UE to respond to a CounterCheck message. |
LocationMeasurementIndication |
SRB1 AM DCCH UE → Network | The LocationMeasurementIndication message is used to indicate that the UE is going to either start or stop location related measurement which requires measurement gaps. |
FailureInformation |
SRB1/SRB3 AM DCCH UE → Network | The FailureInformation message is used to inform the network about a failure detected by the UE. |
MCGFailureInformation |
SRB1 AM DCCH UE → Network | The MCGFailureInformation message is used to provide information regarding NR MCG failures detected by the UE. |
SCGFailureInformation |
SRB1 AM DCCH UE → Network | The SCGFailureInformation message is used to provide information regarding NR SCG failures detected by the UE. |
SCGFailureInformationEUTR |
SRB1 AM DCCH UE → Network | The SCGFailureInformationEUTRA message is used to provide information regarding E-UTRA SCG failures detected by the UE. |
UEInformationRequest |
SRB1 AM DCCH Network → UE | The UEInformationRequest message is used by the network to retrieve information from the UE. |
UEInformationResponse |
SRB1, SRB2 AM DCCH UE → Network | The UEInformationResponse message is used by the UE to transfer information requested by the network. |
LoggedMeasurementConfiguration |
SRB1 AM DCCH Network → UE | The LoggedMeasurementConfiguration message is used to perform logging of measurement results while in RRC_IDLE or RRC_INACTIVE. It is used to transfer the logged measurement configuration for network performance optimisation. |
DedicatedSIBRequest |
SRB1 AM DCCH UE → Network | The DedicatedSIBRequest message is used to request SIB(s) required by the UE in RRC_CONNECTED as specified in clause 5.2.2.3.5. |
UEPositioningAssistanceInfo |
SRB1 AM DCCH UE → Network | The UEPositioningAssistanceInfo message is used to provide positioning assistance information as requested by the Network. |
MBSInterestIndication |
SRB1 AM DCCH UE → Network | The MBSInterestIndication message is used to inform network that the UE is receiving/ interested to receive or no longer receiving/ interested to receive MBS broadcast service(s) via a broadcast MRB. |
MBSBroadcastConfiguration |
No SRB UM MCCH Network → UE | The MBSBroadcastConfiguration message contains the control information applicable for MBS broadcast services transmitted via broadcast MRB. |
SidelinkUEInformationNR |
SRB1 AM DCCH UE → Network | The SidelinkUEinformationNR message is used for the indication of NR sidelink UE information to the network. |
IABOtherInformation |
SRB1/SRB3 AM DCCH UE → Network | The IABOtherInformation message is used by IAB-MT to request the network to allocate IP addresses for the collocated IAB-DU or inform the network about IP addresses allocated to the collocated IAB-DU. |
ULDedicatedMessageSegment |
SRB1/SRB4 AM DCCH UE → Network | The ULDedicatedMessageSegment message is used to transfer segments of the UECapabilityInformation or MeasurementReportAppLayer message. SRB1 is used at transfer of segments of UECapabilityInformation and SRB4 is used at transfer of segments of MeasurementReportAppLayer. |
DLDedicatedMessageSegment |
SRB1 AM DCCH Network → UE | The DLDedicatedMessageSegment message is used to transfer one segment of the RRCResume or RRCReconfiguration messages. |
MobilityFromNRCommand |
SRB1 AM DCCH Network → UE | The MobilityFromNRCommand message is used to command handover from NR to E-UTRA/EPC, E-UTRA/5GC or UTRA-FDD. |
RRCReestablishmentRequest |
SRB0 TM CCCH UE → Network | The RRCReestablishmentRequest message is used to request the reestablishment of an RRC connection. |
RRCReestablishment |
SRB1 TM DCCH Network → UE | The RRCReestablishment message is used to re-establish SRB1. |
RRCReestablishmentComplete |
SRB1 AM DCCH UE → Network | The RRCReestablishmentComplete message is used to confirm the successful completion of an RRC connection re-establishment. |
RRCResumeRequest |
SRB0 TM CCCH UE → Network | The RRCResumeRequest message is used to request the resumption of a suspended RRC connection or perform an RNA update. |
RRCResumeRequest1 |
SRB0 TM CCCH1 UE → Network | The RRCResumeRequest1 message is used to request the resumption of a suspended RRC connection or perform an RNA update. |
RRCResume |
SRB1 AM DCCH Network → UE | The RRCResume message is used to resume the suspended RRC connection. |
RRCResumeComplete |
SRB1 AM DCCH UE → Network | The RRCResumeComplete message is used to confirm the successful completion of an RRC connection resumption. |
RRCRelease |
SRB1 AM DCCH Network → UE | The RRCRelease message is used to command the release of an RRC connection or the suspension of the RRC connection. |
Table 4. RRC Message Catalog
RRC Message ASN.1 Examples¶
MIB
MIB ::= SEQUENCE {
systemFrameNumber BIT STRING (SIZE (6)),
subCarrierSpacingCommon ENUMERATED {scs15or60, scs30or120},
ssb-SubcarrierOffset INTEGER (0..15),
dmrs-TypeA-Position ENUMERATED {pos2, pos3},
pdcch-ConfigSIB1 PDCCH-ConfigSIB1,
cellBarred ENUMERATED {barred, notBarred},
intraFreqReselection ENUMERATED {allowed, notAllowed},
spare BIT STRING (SIZE (1))
}
SIB1
SIB1 ::= SEQUENCE {
cellSelectionInfo SEQUENCE {
q-RxLevMin Q-RxLevMin,
q-RxLevMinOffset INTEGER (1..8) OPTIONAL, -- Need S
q-RxLevMinSUL Q-RxLevMin OPTIONAL, -- Need R
q-QualMin Q-QualMin OPTIONAL, -- Need S
q-QualMinOffset INTEGER (1..8) OPTIONAL -- Need S
} OPTIONAL, -- Cond Standalone
cellAccessRelatedInfo CellAccessRelatedInfo,
connEstFailureControl ConnEstFailureControl OPTIONAL, -- Need R
si-SchedulingInfo SI-SchedulingInfo OPTIONAL, -- Need R
servingCellConfigCommon ServingCellConfigCommonSIB OPTIONAL, -- Need R
ims-EmergencySupport ENUMERATED {true} OPTIONAL, -- Need R
eCallOverIMS-Support ENUMERATED {true} OPTIONAL, -- Need R
ue-TimersAndConstants UE-TimersAndConstants OPTIONAL, -- Need R
uac-BarringInfo SEQUENCE {
uac-BarringForCommon UAC-BarringPerCatList OPTIONAL, -- Need S
uac-BarringPerPLMN-List UAC-BarringPerPLMN-List OPTIONAL, -- Need S
uac-BarringInfoSetList UAC-BarringInfoSetList,
uac-AccessCategory1-SelectionAssistanceInfo CHOICE {
plmnCommon UAC-AccessCategory1-SelectionAssistanceInfo,
individualPLMNList SEQUENCE (SIZE (2..maxPLMN)) OF UAC-AccessCategory1-SelectionAssistanceInfo
} OPTIONAL -- Need S
} OPTIONAL, -- Need R
useFullResumeID ENUMERATED {true} OPTIONAL, -- Need R
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SIB1-v1610-IEs OPTIONAL
}
SIB1-v1610-IEs ::= SEQUENCE {
idleModeMeasurementsEUTRA-r16 ENUMERATED{true} OPTIONAL, -- Need R
idleModeMeasurementsNR-r16 ENUMERATED{true} OPTIONAL, -- Need R
posSI-SchedulingInfo-r16 PosSI-SchedulingInfo-r16 OPTIONAL, -- Need R
nonCriticalExtension SIB1-v1630-IEs OPTIONAL
}
SIB1-v1630-IEs ::= SEQUENCE {
uac-BarringInfo-v1630 SEQUENCE {
uac-AC1-SelectAssistInfo-r16 SEQUENCE (SIZE (2..maxPLMN)) OF UAC-AC1-SelectAssistInfo-r16
} OPTIONAL, -- Need R
nonCriticalExtension SIB1-v1700-IEs OPTIONAL
}
SIB1-v1700-IEs ::= SEQUENCE {
hsdn-Cell-r17 ENUMERATED {true} OPTIONAL, -- Need R
uac-BarringInfo-v1700 SEQUENCE {
uac-BarringInfoSetList-v1700 UAC-BarringInfoSetList-v1700
} OPTIONAL, -- Cond MINT
sdt-ConfigCommon-r17 SDT-ConfigCommonSIB-r17 OPTIONAL, -- Need R
redCap-ConfigCommon-r17 RedCap-ConfigCommonSIB-r17 OPTIONAL, -- Need R
featurePriorities-r17 SEQUENCE {
redCapPriority-r17 FeaturePriority-r17 OPTIONAL, -- Need R
slicingPriority-r17 FeaturePriority-r17 OPTIONAL, -- Need R
msg3-Repetitions-Priority-r17 FeaturePriority-r17 OPTIONAL, -- Need R
sdt-Priority-r17 FeaturePriority-r17 OPTIONAL -- Need R
} OPTIONAL, -- Need R
si-SchedulingInfo-v1700 SI-SchedulingInfo-v1700 OPTIONAL, -- Need R
hyperSFN-r17 BIT STRING (SIZE (10)) OPTIONAL, -- Need R
eDRX-AllowedIdle-r17 ENUMERATED {true} OPTIONAL, -- Need R
eDRX-AllowedInactive-r17 ENUMERATED {true} OPTIONAL, -- Cond EDRX-RC
intraFreqReselectionRedCap-r17 ENUMERATED {allowed, notAllowed} OPTIONAL, -- Need S
cellBarredNTN-r17 ENUMERATED {barred, notBarred} OPTIONAL, -- Need S
nonCriticalExtension SIB1-v1740-IEs OPTIONAL
}
SIB1-v1740-IEs ::= SEQUENCE {
si-SchedulingInfo-v1740 SI-SchedulingInfo-v1740 OPTIONAL, -- Need R
nonCriticalExtension SEQUENCE {} OPTIONAL
}
UAC-AccessCategory1-SelectionAssistanceInfo ::= ENUMERATED {a, b, c}
UAC-AC1-SelectAssistInfo-r16 ::= ENUMERATED {a, b, c, notConfigured}
SDT-ConfigCommonSIB-r17 ::= SEQUENCE {
sdt-RSRP-Threshold-r17 RSRP-Range OPTIONAL, -- Need R
sdt-LogicalChannelSR-DelayTimer-r17 ENUMERATED { sf20, sf40, sf64, sf128, sf512, sf1024, sf2560, spare1} OPTIONAL, -- Need R
sdt-DataVolumeThreshold-r17 ENUMERATED {byte32, byte100, byte200, byte400, byte600, byte800, byte1000, byte2000, byte4000,
byte8000, byte9000, byte10000, byte12000, byte24000, byte48000, byte96000},
t319a-r17 ENUMERATED { ms100, ms200, ms300, ms400, ms600, ms1000, ms2000,
ms3000, ms4000, spare7, spare6, spare5, spare4, spare3, spare2, spare1}
}
RedCap-ConfigCommonSIB-r17 ::= SEQUENCE {
halfDuplexRedCapAllowed-r17 ENUMERATED {true} OPTIONAL, -- Need R
cellBarredRedCap-r17 SEQUENCE {
cellBarredRedCap1Rx-r17 ENUMERATED {barred, notBarred},
cellBarredRedCap2Rx-r17 ENUMERATED {barred, notBarred}
} OPTIONAL, -- Need R
...
}
FeaturePriority-r17 ::= INTEGER (0..7)
SystemInformation
SystemInformation ::= SEQUENCE {
criticalExtensions CHOICE {
systemInformation SystemInformation-IEs,
criticalExtensionsFuture-r16 CHOICE {
posSystemInformation-r16 PosSystemInformation-r16-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
}
SystemInformation-IEs ::= SEQUENCE {
sib-TypeAndInfo SEQUENCE (SIZE (1..maxSIB)) OF CHOICE {
sib2 SIB2,
sib3 SIB3,
sib4 SIB4,
sib5 SIB5,
sib6 SIB6,
sib7 SIB7,
sib8 SIB8,
sib9 SIB9,
...,
sib10-v1610 SIB10-r16,
sib11-v1610 SIB11-r16,
sib12-v1610 SIB12-r16,
sib13-v1610 SIB13-r16,
sib14-v1610 SIB14-r16,
sib15-v1700 SIB15-r17,
sib16-v1700 SIB16-r17,
sib17-v1700 SIB17-r17,
sib18-v1700 SIB18-r17,
sib19-v1700 SIB19-r17,
sib20-v1700 SIB20-r17,
sib21-v1700 SIB21-r17
},
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
Paging
Paging ::= SEQUENCE {
pagingRecordList PagingRecordList OPTIONAL, -- Need N
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension Paging-v1700-IEs OPTIONAL
}
Paging-v1700-IEs ::= SEQUENCE {
pagingRecordList-v1700 PagingRecordList-v1700 OPTIONAL, -- Need N
pagingGroupList-r17 PagingGroupList-r17 OPTIONAL, -- Need N
nonCriticalExtension SEQUENCE {} OPTIONAL
}
PagingRecordList ::= SEQUENCE (SIZE(1..maxNrofPageRec)) OF PagingRecord
PagingRecordList-v1700 ::= SEQUENCE (SIZE(1..maxNrofPageRec)) OF PagingRecord-v1700
PagingGroupList-r17 ::= SEQUENCE (SIZE(1..maxNrofPageGroup-r17)) OF TMGI-r17
PagingRecord ::= SEQUENCE {
ue-Identity PagingUE-Identity,
accessType ENUMERATED {non3GPP} OPTIONAL, -- Need N
...
}
PagingRecord-v1700 ::= SEQUENCE {
pagingCause-r17 ENUMERATED {voice} OPTIONAL -- Need N
}
PagingUE-Identity ::= CHOICE {
ng-5G-S-TMSI NG-5G-S-TMSI,
fullI-RNTI I-RNTI-Value,
...
}
RRCSystemInfoRequest
RRCSystemInfoRequest ::= SEQUENCE {
criticalExtensions CHOICE {
rrcSystemInfoRequest RRCSystemInfoRequest-IEs,
criticalExtensionsFuture-r16 CHOICE {
rrcPosSystemInfoRequest-r16 RRC-PosSystemInfoRequest-r16-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
}
RRCSystemInfoRequest-IEs ::= SEQUENCE {
requested-SI-List BIT STRING (SIZE (maxSI-Message)), --32bits
spare BIT STRING (SIZE (12))
}
RRC-PosSystemInfoRequest-r16-IEs ::= SEQUENCE {
requestedPosSI-List BIT STRING (SIZE (maxSI-Message)), --32bits
spare BIT STRING (SIZE (11))
}
RRCSetupRequest
RRCSetupRequest ::= SEQUENCE {
rrcSetupRequest RRCSetupRequest-IEs
}
RRCSetupRequest-IEs ::= SEQUENCE {
ue-Identity InitialUE-Identity,
establishmentCause EstablishmentCause,
spare BIT STRING (SIZE (1))
}
InitialUE-Identity ::= CHOICE {
ng-5G-S-TMSI-Part1 BIT STRING (SIZE (39)),
randomValue BIT STRING (SIZE (39))
}
EstablishmentCause ::= ENUMERATED {
emergency, highPriorityAccess, mt-Access, mo-Signalling,
mo-Data, mo-VoiceCall, mo-VideoCall, mo-SMS, mps-PriorityAccess, mcs-PriorityAccess,
spare6, spare5, spare4, spare3, spare2, spare1}
RRCReject
RRCSetup
RRCSetup ::= SEQUENCE {
rrc-TransactionIdentifier RRC-TransactionIdentifier,
criticalExtensions CHOICE {
rrcSetup RRCSetup-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
RRCSetup-IEs ::= SEQUENCE {
radioBearerConfig RadioBearerConfig,
masterCellGroup OCTET STRING (CONTAINING CellGroupConfig),
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension RRCSetup-v1700-IEs OPTIONAL
}
RRCSetup-v1700-IEs ::= SEQUENCE {
sl-ConfigDedicatedNR-r17 SL-ConfigDedicatedNR-r16 OPTIONAL, -- Cond L2RemoteUE
sl-L2RemoteUE-Config-r17 SL-L2RemoteUE-Config-r17 OPTIONAL, -- Cond L2RemoteUE
nonCriticalExtension SEQUENCE {} OPTIONAL
}
RRCSetupComplete
RRCSetupComplete ::= SEQUENCE {
rrc-TransactionIdentifier RRC-TransactionIdentifier,
criticalExtensions CHOICE {
rrcSetupComplete RRCSetupComplete-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
RRCSetupComplete-IEs ::= SEQUENCE {
selectedPLMN-Identity INTEGER (1..maxPLMN),
registeredAMF RegisteredAMF OPTIONAL,
guami-Type ENUMERATED {native, mapped} OPTIONAL,
s-NSSAI-List SEQUENCE (SIZE (1..maxNrofS-NSSAI)) OF S-NSSAI OPTIONAL,
dedicatedNAS-Message DedicatedNAS-Message,
ng-5G-S-TMSI-Value CHOICE {
ng-5G-S-TMSI NG-5G-S-TMSI,
ng-5G-S-TMSI-Part2 BIT STRING (SIZE (9))
} OPTIONAL,
lateNonCriticalExtension OCTET STRING (CONTAINING RRCSetupComplete-v15s0-IEs) OPTIONAL,
nonCriticalExtension RRCSetupComplete-v1610-IEs OPTIONAL
}
-- Regular non-critical extensions:
RRCSetupComplete-v1610-IEs ::= SEQUENCE {
iab-NodeIndication-r16 ENUMERATED {true} OPTIONAL,
idleMeasAvailable-r16 ENUMERATED {true} OPTIONAL,
ue-MeasurementsAvailable-r16 UE-MeasurementsAvailable-r16 OPTIONAL,
mobilityHistoryAvail-r16 ENUMERATED {true} OPTIONAL,
mobilityState-r16 ENUMERATED {normal, medium, high, spare} OPTIONAL,
nonCriticalExtension RRCSetupComplete-v1690-IEs OPTIONAL
}
RRCSetupComplete-v1690-IEs ::= SEQUENCE {
ul-RRC-Segmentation-r16 ENUMERATED {true} OPTIONAL,
nonCriticalExtension RRCSetupComplete-v1700-IEs OPTIONAL
}
RRCSetupComplete-v1700-IEs ::= SEQUENCE {
onboardingRequest-r17 ENUMERATED {true} OPTIONAL,
nonCriticalExtension SEQUENCE{} OPTIONAL
}
-- Late non-critical extensions:
RRCSetupComplete-v15s0-IEs ::= SEQUENCE {
-- Following field is only for REL-15 late non-critical extensions
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension RRCSetupComplete-v16j0-IEs OPTIONAL
}
RRCSetupComplete-v16j0-IEs ::= SEQUENCE {
-- Following field is only for REL-16 late non-critical extensions
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension RRCSetupComplete-v17b0-IEs OPTIONAL
}
RRCSetupComplete-v17b0-IEs ::= SEQUENCE {
ul-RRC-MaxCapaSegments-r17 ENUMERATED {true} OPTIONAL,
nonCriticalExtension SEQUENCE{} OPTIONAL
}
RegisteredAMF ::= SEQUENCE {
plmn-Identity PLMN-Identity OPTIONAL,
amf-Identifier AMF-Identifier
}
SecurityModeCommand
SecurityModeCommand ::= SEQUENCE {
rrc-TransactionIdentifier RRC-TransactionIdentifier,
criticalExtensions CHOICE {
securityModeCommand SecurityModeCommand-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
SecurityModeCommand-IEs ::= SEQUENCE {
securityConfigSMC SecurityConfigSMC,
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE{} OPTIONAL
}
SecurityConfigSMC ::= SEQUENCE {
securityAlgorithmConfig SecurityAlgorithmConfig,
...
}
SecurityModeComplete
SecurityModeComplete ::= SEQUENCE {
rrc-TransactionIdentifier RRC-TransactionIdentifier,
criticalExtensions CHOICE {
securityModeComplete SecurityModeComplete-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
SecurityModeComplete-IEs ::= SEQUENCE {
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE{} OPTIONAL
}
SecurityModeFailure
SecurityModeFailure ::= SEQUENCE {
rrc-TransactionIdentifier RRC-TransactionIdentifier,
criticalExtensions CHOICE {
securityModeFailure SecurityModeFailure-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
SecurityModeFailure-IEs ::= SEQUENCE {
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE{} OPTIONAL
}
UECapabilityEnquiry
UECapabilityEnquiry ::= SEQUENCE {
rrc-TransactionIdentifier RRC-TransactionIdentifier,
criticalExtensions CHOICE {
ueCapabilityEnquiry UECapabilityEnquiry-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
UECapabilityEnquiry-IEs ::= SEQUENCE {
ue-CapabilityRAT-RequestList UE-CapabilityRAT-RequestList,
lateNonCriticalExtension OCTET STRING OPTIONAL,
ue-CapabilityEnquiryExt OCTET STRING (CONTAINING UECapabilityEnquiry-v1560-IEs) OPTIONAL -- Need N
}
UECapabilityEnquiry-v1560-IEs ::= SEQUENCE {
capabilityRequestFilterCommon UE-CapabilityRequestFilterCommon OPTIONAL, -- Need N
nonCriticalExtension UECapabilityEnquiry-v1610-IEs OPTIONAL
}
UECapabilityEnquiry-v1610-IEs ::= SEQUENCE {
rrc-SegAllowed-r16 ENUMERATED {enabled} OPTIONAL, -- Need N
nonCriticalExtension UECapabilityEnquiry-v17b0-IEs OPTIONAL
}
UECapabilityEnquiry-v17b0-IEs ::= SEQUENCE {
rrc-MaxCapaSegAllowed-r17 INTEGER (2..16) OPTIONAL, -- Need N
nonCriticalExtension SEQUENCE {} OPTIONAL
}
UECapabilityInformation
UECapabilityInformation ::= SEQUENCE {
rrc-TransactionIdentifier RRC-TransactionIdentifier,
criticalExtensions CHOICE {
ueCapabilityInformation UECapabilityInformation-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
UECapabilityInformation-IEs ::= SEQUENCE {
ue-CapabilityRAT-ContainerList UE-CapabilityRAT-ContainerList OPTIONAL,
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE{} OPTIONAL
}
RRCReconfiguration
RRCReconfiguration ::= SEQUENCE {
rrc-TransactionIdentifier RRC-TransactionIdentifier,
criticalExtensions CHOICE {
rrcReconfiguration RRCReconfiguration-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
RRCReconfiguration-IEs ::= SEQUENCE {
radioBearerConfig RadioBearerConfig OPTIONAL, -- Need M
secondaryCellGroup OCTET STRING (CONTAINING CellGroupConfig) OPTIONAL, -- Cond SCG
measConfig MeasConfig OPTIONAL, -- Need M
lateNonCriticalExtension OCTET STRING (CONTAINING RRCReconfiguration-v15t0-IEs) OPTIONAL,
nonCriticalExtension RRCReconfiguration-v1530-IEs OPTIONAL
}
-- Regular non-critical extensions:
RRCReconfiguration-v1530-IEs ::= SEQUENCE {
masterCellGroup OCTET STRING (CONTAINING CellGroupConfig) OPTIONAL, -- Need M
fullConfig ENUMERATED {true} OPTIONAL, -- Cond FullConfig
dedicatedNAS-MessageList SEQUENCE (SIZE(1..maxDRB)) OF DedicatedNAS-Message OPTIONAL, -- Cond nonHO
masterKeyUpdate MasterKeyUpdate OPTIONAL, -- Cond MasterKeyChange
dedicatedSIB1-Delivery OCTET STRING (CONTAINING SIB1) OPTIONAL, -- Need N
dedicatedSystemInformationDelivery OCTET STRING (CONTAINING SystemInformation) OPTIONAL, -- Need N
otherConfig OtherConfig OPTIONAL, -- Need M
nonCriticalExtension RRCReconfiguration-v1540-IEs OPTIONAL
}
RRCReconfiguration-v1540-IEs ::= SEQUENCE {
otherConfig-v1540 OtherConfig-v1540 OPTIONAL, -- Need M
nonCriticalExtension RRCReconfiguration-v1560-IEs OPTIONAL
}
RRCReconfiguration-v1560-IEs ::= SEQUENCE {
mrdc-SecondaryCellGroupConfig SetupRelease { MRDC-SecondaryCellGroupConfig } OPTIONAL, -- Need M
radioBearerConfig2 OCTET STRING (CONTAINING RadioBearerConfig) OPTIONAL, -- Need M
sk-Counter SK-Counter OPTIONAL, -- Need N
nonCriticalExtension RRCReconfiguration-v1610-IEs OPTIONAL
}
RRCReconfiguration-v1610-IEs ::= SEQUENCE {
otherConfig-v1610 OtherConfig-v1610 OPTIONAL, -- Need M
bap-Config-r16 SetupRelease { BAP-Config-r16 } OPTIONAL, -- Need M
iab-IP-AddressConfigurationList-r16 IAB-IP-AddressConfigurationList-r16 OPTIONAL, -- Need M
conditionalReconfiguration-r16 ConditionalReconfiguration-r16 OPTIONAL, -- Need M
daps-SourceRelease-r16 ENUMERATED{true} OPTIONAL, -- Need N
t316-r16 SetupRelease {T316-r16} OPTIONAL, -- Need M
needForGapsConfigNR-r16 SetupRelease {NeedForGapsConfigNR-r16} OPTIONAL, -- Need M
onDemandSIB-Request-r16 SetupRelease { OnDemandSIB-Request-r16 } OPTIONAL, -- Need M
dedicatedPosSysInfoDelivery-r16 OCTET STRING (CONTAINING PosSystemInformation-r16-IEs) OPTIONAL, -- Need N
sl-ConfigDedicatedNR-r16 SetupRelease {SL-ConfigDedicatedNR-r16} OPTIONAL, -- Need M
sl-ConfigDedicatedEUTRA-Info-r16 SetupRelease {SL-ConfigDedicatedEUTRA-Info-r16} OPTIONAL, -- Need M
targetCellSMTC-SCG-r16 SSB-MTC OPTIONAL, -- Need S
nonCriticalExtension RRCReconfiguration-v1700-IEs OPTIONAL
}
RRCReconfiguration-v1700-IEs ::= SEQUENCE {
otherConfig-v1700 OtherConfig-v1700 OPTIONAL, -- Need M
sl-L2RelayUE-Config-r17 SetupRelease { SL-L2RelayUE-Config-r17 } OPTIONAL, -- Need M
sl-L2RemoteUE-Config-r17 SetupRelease { SL-L2RemoteUE-Config-r17 } OPTIONAL, -- Need M
dedicatedPagingDelivery-r17 OCTET STRING (CONTAINING Paging) OPTIONAL, -- Cond PagingRelay
needForGapNCSG-ConfigNR-r17 SetupRelease {NeedForGapNCSG-ConfigNR-r17} OPTIONAL, -- Need M
needForGapNCSG-ConfigEUTRA-r17 SetupRelease {NeedForGapNCSG-ConfigEUTRA-r17} OPTIONAL, -- Need M
musim-GapConfig-r17 SetupRelease {MUSIM-GapConfig-r17} OPTIONAL, -- Need M
ul-GapFR2-Config-r17 SetupRelease { UL-GapFR2-Config-r17 } OPTIONAL, -- Need M
scg-State-r17 ENUMERATED { deactivated } OPTIONAL, -- Need S
appLayerMeasConfig-r17 AppLayerMeasConfig-r17 OPTIONAL, -- Need M
ue-TxTEG-RequestUL-TDOA-Config-r17 SetupRelease {UE-TxTEG-RequestUL-TDOA-Config-r17} OPTIONAL, -- Need M
nonCriticalExtension SEQUENCE {} OPTIONAL
}
-- Late non-critical Rel-15 extensions:
RRCReconfiguration-v15t0-IEs ::= SEQUENCE {
-- Following field is only to be used for late REL-15 extensions
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension RRCReconfiguration-v16k0-IEs OPTIONAL
}
RRCReconfiguration-v16k0-IEs ::= SEQUENCE {
sl-ConfigDedicatedNR-v16k0 SetupRelease {SL-ConfigDedicatedNR-v16k0} OPTIONAL, -- Need M
nonCriticalExtension SEQUENCE{} OPTIONAL
}
MRDC-SecondaryCellGroupConfig ::= SEQUENCE {
mrdc-ReleaseAndAdd ENUMERATED {true} OPTIONAL, -- Need N
mrdc-SecondaryCellGroup CHOICE {
nr-SCG OCTET STRING (CONTAINING RRCReconfiguration),
eutra-SCG OCTET STRING
}
}
BAP-Config-r16 ::= SEQUENCE {
bap-Address-r16 BIT STRING (SIZE (10)) OPTIONAL, -- Need M
defaultUL-BAP-RoutingID-r16 BAP-RoutingID-r16 OPTIONAL, -- Need M
defaultUL-BH-RLC-Channel-r16 BH-RLC-ChannelID-r16 OPTIONAL, -- Need M
flowControlFeedbackType-r16 ENUMERATED {perBH-RLC-Channel, perRoutingID, both} OPTIONAL, -- Need R
...
}
MasterKeyUpdate ::= SEQUENCE {
keySetChangeIndicator BOOLEAN,
nextHopChainingCount NextHopChainingCount,
nas-Container OCTET STRING OPTIONAL, -- Cond securityNASC
...
}
OnDemandSIB-Request-r16 ::= SEQUENCE {
onDemandSIB-RequestProhibitTimer-r16 ENUMERATED {s0, s0dot5, s1, s2, s5, s10, s20, s30}
}
T316-r16 ::= ENUMERATED {ms50, ms100, ms200, ms300, ms400, ms500, ms600, ms1000, ms1500, ms2000}
IAB-IP-AddressConfigurationList-r16 ::= SEQUENCE {
iab-IP-AddressToAddModList-r16 SEQUENCE (SIZE(1..maxIAB-IP-Address-r16)) OF IAB-IP-AddressConfiguration-r16 OPTIONAL, -- Need N
iab-IP-AddressToReleaseList-r16 SEQUENCE (SIZE(1..maxIAB-IP-Address-r16)) OF IAB-IP-AddressIndex-r16 OPTIONAL, -- Need N
...
}
IAB-IP-AddressConfiguration-r16 ::= SEQUENCE {
iab-IP-AddressIndex-r16 IAB-IP-AddressIndex-r16,
iab-IP-Address-r16 IAB-IP-Address-r16 OPTIONAL, -- Need M
iab-IP-Usage-r16 IAB-IP-Usage-r16 OPTIONAL, -- Need M
iab-donor-DU-BAP-Address-r16 BIT STRING (SIZE(10)) OPTIONAL, -- Need M
...
}
SL-ConfigDedicatedEUTRA-Info-r16 ::= SEQUENCE {
sl-ConfigDedicatedEUTRA-r16 OCTET STRING OPTIONAL, -- Need M
sl-TimeOffsetEUTRA-List-r16 SEQUENCE (SIZE (8)) OF SL-TimeOffsetEUTRA-r16 OPTIONAL -- Need M
}
SL-TimeOffsetEUTRA-r16 ::= ENUMERATED {ms0, ms0dot25, ms0dot5, ms0dot625, ms0dot75, ms1, ms1dot25, ms1dot5, ms1dot75,
ms2, ms2dot5, ms3, ms4, ms5, ms6, ms8, ms10, ms20}
UE-TxTEG-RequestUL-TDOA-Config-r17 ::= CHOICE {
oneShot-r17 NULL,
periodicReporting-r17 ENUMERATED { ms160, ms320, ms1280, ms2560, ms61440, ms81920, ms368640, ms737280 }
}
RRCReconfigurationComplete
RRCReconfigurationComplete ::= SEQUENCE {
rrc-TransactionIdentifier RRC-TransactionIdentifier,
criticalExtensions CHOICE {
rrcReconfigurationComplete RRCReconfigurationComplete-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
RRCReconfigurationComplete-IEs ::= SEQUENCE {
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension RRCReconfigurationComplete-v1530-IEs OPTIONAL
}
RRCReconfigurationComplete-v1530-IEs ::= SEQUENCE {
uplinkTxDirectCurrentList UplinkTxDirectCurrentList OPTIONAL,
nonCriticalExtension RRCReconfigurationComplete-v1560-IEs OPTIONAL
}
RRCReconfigurationComplete-v1560-IEs ::= SEQUENCE {
scg-Response CHOICE {
nr-SCG-Response OCTET STRING (CONTAINING RRCReconfigurationComplete),
eutra-SCG-Response OCTET STRING
} OPTIONAL,
nonCriticalExtension RRCReconfigurationComplete-v1610-IEs OPTIONAL
}
RRCReconfigurationComplete-v1610-IEs ::= SEQUENCE {
ue-MeasurementsAvailable-r16 UE-MeasurementsAvailable-r16 OPTIONAL,
needForGapsInfoNR-r16 NeedForGapsInfoNR-r16 OPTIONAL,
nonCriticalExtension RRCReconfigurationComplete-v1640-IEs OPTIONAL
}
RRCReconfigurationComplete-v1640-IEs ::= SEQUENCE {
uplinkTxDirectCurrentTwoCarrierList-r16 UplinkTxDirectCurrentTwoCarrierList-r16 OPTIONAL,
nonCriticalExtension RRCReconfigurationComplete-v1700-IEs OPTIONAL
}
RRCReconfigurationComplete-v1700-IEs ::= SEQUENCE {
needForGapNCSG-InfoNR-r17 NeedForGapNCSG-InfoNR-r17 OPTIONAL,
needForGapNCSG-InfoEUTRA-r17 NeedForGapNCSG-InfoEUTRA-r17 OPTIONAL,
selectedCondRRCReconfig-r17 CondReconfigId-r16 OPTIONAL,
nonCriticalExtension RRCReconfigurationComplete-v1720-IEs OPTIONAL
}
RRCReconfigurationComplete-v1720-IEs ::= SEQUENCE {
uplinkTxDirectCurrentMoreCarrierList-r17 UplinkTxDirectCurrentMoreCarrierList-r17 OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
DLInformationTransfer
DLInformationTransfer ::= SEQUENCE {
rrc-TransactionIdentifier RRC-TransactionIdentifier,
criticalExtensions CHOICE {
dlInformationTransfer DLInformationTransfer-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
DLInformationTransfer-IEs ::= SEQUENCE {
dedicatedNAS-Message DedicatedNAS-Message OPTIONAL, -- Need N
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension DLInformationTransfer-v1610-IEs OPTIONAL
}
DLInformationTransfer-v1610-IEs ::= SEQUENCE {
referenceTimeInfo-r16 ReferenceTimeInfo-r16 OPTIONAL, -- Need N
nonCriticalExtension DLInformationTransfer-v1700-IEs OPTIONAL
}
DLInformationTransfer-v1700-IEs ::= SEQUENCE {
dedicatedInfoF1c-r17 DedicatedInfoF1c-r17 OPTIONAL, -- Need N
rxTxTimeDiff-gNB-r17 RxTxTimeDiff-r17 OPTIONAL, -- Need N
ta-PDC-r17 ENUMERATED {activate,deactivate} OPTIONAL, -- Need N
sib9Fallback-r17 ENUMERATED {true} OPTIONAL, -- Need N
nonCriticalExtension SEQUENCE {} OPTIONAL
}
ULInformationTransfer
ULInformationTransfer ::= SEQUENCE {
criticalExtensions CHOICE {
ulInformationTransfer ULInformationTransfer-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
ULInformationTransfer-IEs ::= SEQUENCE {
dedicatedNAS-Message DedicatedNAS-Message OPTIONAL,
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension ULInformationTransfer-v1700-IEs OPTIONAL
}
ULInformationTransfer-v1700-IEs ::= SEQUENCE {
dedicatedInfoF1c-r17 DedicatedInfoF1c-r17 OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
DLInformationTransferMRDC
DLInformationTransferMRDC-r16 ::= SEQUENCE {
criticalExtensions CHOICE {
c1 CHOICE {
dlInformationTransferMRDC-r16 DLInformationTransferMRDC-r16-IEs,
spare3 NULL, spare2 NULL, spare1 NULL
},
criticalExtensionsFuture SEQUENCE {}
}
}
DLInformationTransferMRDC-r16-IEs::= SEQUENCE {
dl-DCCH-MessageNR-r16 OCTET STRING OPTIONAL, -- Need N
dl-DCCH-MessageEUTRA-r16 OCTET STRING OPTIONAL, -- Need N
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
ULInformationTransferMRDC
ULInformationTransferMRDC ::= SEQUENCE {
criticalExtensions CHOICE {
c1 CHOICE {
ulInformationTransferMRDC ULInformationTransferMRDC-IEs,
spare3 NULL, spare2 NULL, spare1 NULL
},
criticalExtensionsFuture SEQUENCE {}
}
}
ULInformationTransferMRDC-IEs::= SEQUENCE {
ul-DCCH-MessageNR OCTET STRING OPTIONAL,
ul-DCCH-MessageEUTRA OCTET STRING OPTIONAL,
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
ULInformationTransferIRAT
ULInformationTransferIRAT-r16 ::= SEQUENCE {
criticalExtensions CHOICE {
c1 CHOICE {
ulInformationTransferIRAT-r16 ULInformationTransferIRAT-r16-IEs,
spare3 NULL, spare2 NULL, spare1 NULL
},
criticalExtensionsFuture SEQUENCE {}
}
}
ULInformationTransferIRAT-r16-IEs ::= SEQUENCE {
ul-DCCH-MessageEUTRA-r16 OCTET STRING OPTIONAL,
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
MeasurementReport
MeasurementReportAppLayer
MeasurementReportAppLayer-r17 ::= SEQUENCE {
criticalExtensions CHOICE {
measurementReportAppLayer-r17 MeasurementReportAppLayer-r17-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
MeasurementReportAppLayer-r17-IEs ::= SEQUENCE {
measurementReportAppLayerList-r17 MeasurementReportAppLayerList-r17,
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE{} OPTIONAL
}
MeasurementReportAppLayerList-r17 ::= SEQUENCE (SIZE (1..maxNrofAppLayerMeas-r17)) OF MeasReportAppLayer-r17
MeasReportAppLayer-r17 ::= SEQUENCE {
measConfigAppLayerId-r17 MeasConfigAppLayerId-r17,
measReportAppLayerContainer-r17 OCTET STRING OPTIONAL,
appLayerSessionStatus-r17 ENUMERATED {start, stop} OPTIONAL,
ran-VisibleMeasurements-r17 RAN-VisibleMeasurements-r17 OPTIONAL
}
RAN-VisibleMeasurements-r17 ::= SEQUENCE {
appLayerBufferLevelList-r17 SEQUENCE (SIZE (1..8)) OF AppLayerBufferLevel-r17 OPTIONAL,
playoutDelayForMediaStartup-r17 INTEGER (0..30000) OPTIONAL,
pdu-SessionIdList-r17 SEQUENCE (SIZE (1..maxNrofPDU-Sessions-r17)) OF PDU-SessionID OPTIONAL,
...
}
AppLayerBufferLevel-r17 ::= INTEGER (0..30000)
UEAssistanceInformation
UEAssistanceInformation ::= SEQUENCE {
criticalExtensions CHOICE {
ueAssistanceInformation UEAssistanceInformation-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
UEAssistanceInformation-IEs ::= SEQUENCE {
delayBudgetReport DelayBudgetReport OPTIONAL,
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension UEAssistanceInformation-v1540-IEs OPTIONAL
}
DelayBudgetReport::= CHOICE {
type1 ENUMERATED {
msMinus1280, msMinus640, msMinus320, msMinus160,msMinus80, msMinus60, msMinus40,
msMinus20, ms0, ms20,ms40, ms60, ms80, ms160, ms320, ms640, ms1280},
...
}
UEAssistanceInformation-v1540-IEs ::= SEQUENCE {
overheatingAssistance OverheatingAssistance OPTIONAL,
nonCriticalExtension UEAssistanceInformation-v1610-IEs OPTIONAL
}
OverheatingAssistance ::= SEQUENCE {
reducedMaxCCs ReducedMaxCCs-r16 OPTIONAL,
reducedMaxBW-FR1 ReducedMaxBW-FRx-r16 OPTIONAL,
reducedMaxBW-FR2 ReducedMaxBW-FRx-r16 OPTIONAL,
reducedMaxMIMO-LayersFR1 SEQUENCE {
reducedMIMO-LayersFR1-DL MIMO-LayersDL,
reducedMIMO-LayersFR1-UL MIMO-LayersUL
} OPTIONAL,
reducedMaxMIMO-LayersFR2 SEQUENCE {
reducedMIMO-LayersFR2-DL MIMO-LayersDL,
reducedMIMO-LayersFR2-UL MIMO-LayersUL
} OPTIONAL
}
OverheatingAssistance-r17 ::= SEQUENCE {
reducedMaxBW-FR2-2-r17 SEQUENCE {
reducedBW-FR2-2-DL-r17 ReducedAggregatedBandwidth-r17,
reducedBW-FR2-2-UL-r17 ReducedAggregatedBandwidth-r17
} OPTIONAL,
reducedMaxMIMO-LayersFR2-2 SEQUENCE {
reducedMIMO-LayersFR2-2-DL MIMO-LayersDL,
reducedMIMO-LayersFR2-2-UL MIMO-LayersUL
} OPTIONAL
}
ReducedAggregatedBandwidth ::= ENUMERATED {mhz0, mhz10, mhz20, mhz30, mhz40, mhz50, mhz60, mhz80, mhz100, mhz200, mhz300, mhz400}
ReducedAggregatedBandwidth-r17 ::= ENUMERATED {mhz0, mhz100, mhz200, mhz400, mhz800, mhz1200, mhz1600, mhz2000}
UEAssistanceInformation-v1610-IEs ::= SEQUENCE {
idc-Assistance-r16 IDC-Assistance-r16 OPTIONAL,
drx-Preference-r16 DRX-Preference-r16 OPTIONAL,
maxBW-Preference-r16 MaxBW-Preference-r16 OPTIONAL,
maxCC-Preference-r16 MaxCC-Preference-r16 OPTIONAL,
maxMIMO-LayerPreference-r16 MaxMIMO-LayerPreference-r16 OPTIONAL,
minSchedulingOffsetPreference-r16 MinSchedulingOffsetPreference-r16 OPTIONAL,
releasePreference-r16 ReleasePreference-r16 OPTIONAL,
sl-UE-AssistanceInformationNR-r16 SL-UE-AssistanceInformationNR-r16 OPTIONAL,
referenceTimeInfoPreference-r16 BOOLEAN OPTIONAL,
nonCriticalExtension UEAssistanceInformation-v1700-IEs OPTIONAL
}
UEAssistanceInformation-v1700-IEs ::= SEQUENCE {
ul-GapFR2-Preference-r17 UL-GapFR2-Preference-r17 OPTIONAL,
musim-Assistance-r17 MUSIM-Assistance-r17 OPTIONAL,
overheatingAssistance-r17 OverheatingAssistance-r17 OPTIONAL,
maxBW-PreferenceFR2-2-r17 MaxBW-PreferenceFR2-2-r17 OPTIONAL,
maxMIMO-LayerPreferenceFR2-2-r17 MaxMIMO-LayerPreferenceFR2-2-r17 OPTIONAL,
minSchedulingOffsetPreferenceExt-r17 MinSchedulingOffsetPreferenceExt-r17 OPTIONAL,
rlm-MeasRelaxationState-r17 BOOLEAN OPTIONAL,
bfd-MeasRelaxationState-r17 BIT STRING (SIZE (1..maxNrofServingCells)) OPTIONAL,
nonSDT-DataIndication-r17 SEQUENCE {
resumeCause-r17 ResumeCause OPTIONAL
} OPTIONAL,
scg-DeactivationPreference-r17 ENUMERATED { scg-DeactivationPreferred, noPreference } OPTIONAL,
uplinkData-r17 ENUMERATED { true } OPTIONAL,
rrm-MeasRelaxationFulfilment-r17 BOOLEAN OPTIONAL,
propagationDelayDifference-r17 PropagationDelayDifference-r17 OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
IDC-Assistance-r16 ::= SEQUENCE {
affectedCarrierFreqList-r16 AffectedCarrierFreqList-r16 OPTIONAL,
affectedCarrierFreqCombList-r16 AffectedCarrierFreqCombList-r16 OPTIONAL,
...
}
AffectedCarrierFreqList-r16 ::= SEQUENCE (SIZE (1.. maxFreqIDC-r16)) OF AffectedCarrierFreq-r16
AffectedCarrierFreq-r16 ::= SEQUENCE {
carrierFreq-r16 ARFCN-ValueNR,
interferenceDirection-r16 ENUMERATED {nr, other, both, spare}
}
AffectedCarrierFreqCombList-r16 ::= SEQUENCE (SIZE (1..maxCombIDC-r16)) OF AffectedCarrierFreqComb-r16
AffectedCarrierFreqComb-r16 ::= SEQUENCE {
affectedCarrierFreqComb-r16 SEQUENCE (SIZE (2..maxNrofServingCells)) OF ARFCN-ValueNR OPTIONAL,
victimSystemType-r16 VictimSystemType-r16
}
VictimSystemType-r16 ::= SEQUENCE {
gps-r16 ENUMERATED {true} OPTIONAL,
glonass-r16 ENUMERATED {true} OPTIONAL,
bds-r16 ENUMERATED {true} OPTIONAL,
galileo-r16 ENUMERATED {true} OPTIONAL,
navIC-r16 ENUMERATED {true} OPTIONAL,
wlan-r16 ENUMERATED {true} OPTIONAL,
bluetooth-r16 ENUMERATED {true} OPTIONAL,
...
}
DRX-Preference-r16 ::= SEQUENCE {
preferredDRX-InactivityTimer-r16 ENUMERATED {
ms0, ms1, ms2, ms3, ms4, ms5, ms6, ms8, ms10, ms20, ms30, ms40, ms50, ms60, ms80,
ms100, ms200, ms300, ms500, ms750, ms1280, ms1920, ms2560, spare9, spare8,
spare7, spare6, spare5, spare4, spare3, spare2, spare1} OPTIONAL,
preferredDRX-LongCycle-r16 ENUMERATED {
ms10, ms20, ms32, ms40, ms60, ms64, ms70, ms80, ms128, ms160, ms256, ms320, ms512,
ms640, ms1024, ms1280, ms2048, ms2560, ms5120, ms10240, spare12, spare11, spare10,
spare9, spare8, spare7, spare6, spare5, spare4, spare3, spare2, spare1 } OPTIONAL,
preferredDRX-ShortCycle-r16 ENUMERATED {
ms2, ms3, ms4, ms5, ms6, ms7, ms8, ms10, ms14, ms16, ms20, ms30, ms32,
ms35, ms40, ms64, ms80, ms128, ms160, ms256, ms320, ms512, ms640, spare9,
spare8, spare7, spare6, spare5, spare4, spare3, spare2, spare1 } OPTIONAL,
preferredDRX-ShortCycleTimer-r16 INTEGER (1..16) OPTIONAL
}
MaxBW-Preference-r16 ::= SEQUENCE {
reducedMaxBW-FR1-r16 ReducedMaxBW-FRx-r16 OPTIONAL,
reducedMaxBW-FR2-r16 ReducedMaxBW-FRx-r16 OPTIONAL
}
MaxBW-PreferenceFR2-2-r17 ::= SEQUENCE {
reducedMaxBW-FR2-2-r17 SEQUENCE {
reducedBW-FR2-2-DL-r17 ReducedAggregatedBandwidth-r17 OPTIONAL,
reducedBW-FR2-2-UL-r17 ReducedAggregatedBandwidth-r17 OPTIONAL
} OPTIONAL
}
MaxCC-Preference-r16 ::= SEQUENCE {
reducedMaxCCs-r16 ReducedMaxCCs-r16 OPTIONAL
}
MaxMIMO-LayerPreference-r16 ::= SEQUENCE {
reducedMaxMIMO-LayersFR1-r16 SEQUENCE {
reducedMIMO-LayersFR1-DL-r16 INTEGER (1..8),
reducedMIMO-LayersFR1-UL-r16 INTEGER (1..4)
} OPTIONAL,
reducedMaxMIMO-LayersFR2-r16 SEQUENCE {
reducedMIMO-LayersFR2-DL-r16 INTEGER (1..8),
reducedMIMO-LayersFR2-UL-r16 INTEGER (1..4)
} OPTIONAL
}
MaxMIMO-LayerPreferenceFR2-2-r17 ::= SEQUENCE {
reducedMaxMIMO-LayersFR2-2-r17 SEQUENCE {
reducedMIMO-LayersFR2-2-DL-r17 INTEGER (1..8),
reducedMIMO-LayersFR2-2-UL-r17 INTEGER (1..4)
} OPTIONAL
}
MinSchedulingOffsetPreference-r16 ::= SEQUENCE {
preferredK0-r16 SEQUENCE {
preferredK0-SCS-15kHz-r16 ENUMERATED {sl1, sl2, sl4, sl6} OPTIONAL,
preferredK0-SCS-30kHz-r16 ENUMERATED {sl1, sl2, sl4, sl6} OPTIONAL,
preferredK0-SCS-60kHz-r16 ENUMERATED {sl2, sl4, sl8, sl12} OPTIONAL,
preferredK0-SCS-120kHz-r16 ENUMERATED {sl2, sl4, sl8, sl12} OPTIONAL
} OPTIONAL,
preferredK2-r16 SEQUENCE {
preferredK2-SCS-15kHz-r16 ENUMERATED {sl1, sl2, sl4, sl6} OPTIONAL,
preferredK2-SCS-30kHz-r16 ENUMERATED {sl1, sl2, sl4, sl6} OPTIONAL,
preferredK2-SCS-60kHz-r16 ENUMERATED {sl2, sl4, sl8, sl12} OPTIONAL,
preferredK2-SCS-120kHz-r16 ENUMERATED {sl2, sl4, sl8, sl12} OPTIONAL
} OPTIONAL
}
MinSchedulingOffsetPreferenceExt-r17 ::= SEQUENCE {
preferredK0-r17 SEQUENCE {
preferredK0-SCS-480kHz-r17 ENUMERATED {sl8, sl16, sl32, sl48} OPTIONAL,
preferredK0-SCS-960kHz-r17 ENUMERATED {sl8, sl16, sl32, sl48} OPTIONAL
} OPTIONAL,
preferredK2-r17 SEQUENCE {
preferredK2-SCS-480kHz-r17 ENUMERATED {sl8, sl16, sl32, sl48} OPTIONAL,
preferredK2-SCS-960kHz-r17 ENUMERATED {sl8, sl16, sl32, sl48} OPTIONAL
} OPTIONAL
}
MUSIM-Assistance-r17 ::= SEQUENCE {
musim-PreferredRRC-State-r17 ENUMERATED {idle, inactive, outOfConnected} OPTIONAL,
musim-GapPreferenceList-r17 MUSIM-GapPreferenceList-r17 OPTIONAL
}
MUSIM-GapPreferenceList-r17 ::= SEQUENCE (SIZE (1..4)) OF MUSIM-GapInfo-r17
ReleasePreference-r16 ::= SEQUENCE {
preferredRRC-State-r16 ENUMERATED {idle, inactive, connected, outOfConnected}
}
ReducedMaxBW-FRx-r16 ::= SEQUENCE {
reducedBW-DL-r16 ReducedAggregatedBandwidth,
reducedBW-UL-r16 ReducedAggregatedBandwidth
}
ReducedMaxCCs-r16 ::= SEQUENCE {
reducedCCsDL-r16 INTEGER (0..31),
reducedCCsUL-r16 INTEGER (0..31)
}
SL-UE-AssistanceInformationNR-r16 ::= SEQUENCE (SIZE (1..maxNrofTrafficPattern-r16)) OF SL-TrafficPatternInfo-r16
SL-TrafficPatternInfo-r16::= SEQUENCE {
trafficPeriodicity-r16 ENUMERATED {ms20, ms50, ms100, ms200, ms300, ms400, ms500, ms600, ms700, ms800, ms900, ms1000},
timingOffset-r16 INTEGER (0..10239),
messageSize-r16 BIT STRING (SIZE (8)),
sl-QoS-FlowIdentity-r16 SL-QoS-FlowIdentity-r16
}
UL-GapFR2-Preference-r17::= SEQUENCE {
ul-GapFR2-PatternPreference-r17 INTEGER (0..3) OPTIONAL
}
PropagationDelayDifference-r17 ::= SEQUENCE (SIZE (1..4)) OF INTEGER (-270..270)
CounterCheck
CounterCheck ::= SEQUENCE {
rrc-TransactionIdentifier RRC-TransactionIdentifier,
criticalExtensions CHOICE {
counterCheck CounterCheck-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
CounterCheck-IEs ::= SEQUENCE {
drb-CountMSB-InfoList DRB-CountMSB-InfoList,
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
DRB-CountMSB-InfoList ::= SEQUENCE (SIZE (1..maxDRB)) OF DRB-CountMSB-Info
DRB-CountMSB-Info ::= SEQUENCE {
drb-Identity DRB-Identity,
countMSB-Uplink INTEGER(0..33554431),
countMSB-Downlink INTEGER(0..33554431)
}
CounterCheckResponse
CounterCheckResponse ::= SEQUENCE {
rrc-TransactionIdentifier RRC-TransactionIdentifier,
criticalExtensions CHOICE {
counterCheckResponse CounterCheckResponse-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
CounterCheckResponse-IEs ::= SEQUENCE {
drb-CountInfoList DRB-CountInfoList,
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
DRB-CountInfoList ::= SEQUENCE (SIZE (0..maxDRB)) OF DRB-CountInfo
DRB-CountInfo ::= SEQUENCE {
drb-Identity DRB-Identity,
count-Uplink INTEGER(0..4294967295),
count-Downlink INTEGER(0..4294967295)
}
LocationMeasurementIndication
LocationMeasurementIndication ::= SEQUENCE {
criticalExtensions CHOICE {
locationMeasurementIndication LocationMeasurementIndication-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
LocationMeasurementIndication-IEs ::= SEQUENCE {
measurementIndication SetupRelease {LocationMeasurementInfo},
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE{} OPTIONAL
}
FailureInformation
FailureInformation ::= SEQUENCE {
criticalExtensions CHOICE {
failureInformation FailureInformation-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
FailureInformation-IEs ::= SEQUENCE {
failureInfoRLC-Bearer FailureInfoRLC-Bearer OPTIONAL,
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension FailureInformation-v1610-IEs OPTIONAL
}
FailureInfoRLC-Bearer ::= SEQUENCE {
cellGroupId CellGroupId,
logicalChannelIdentity LogicalChannelIdentity,
failureType ENUMERATED {rlc-failure, spare3, spare2, spare1}
}
FailureInformation-v1610-IEs ::= SEQUENCE {
failureInfoDAPS-r16 FailureInfoDAPS-r16 OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
FailureInfoDAPS-r16 ::= SEQUENCE {
failureType-r16 ENUMERATED {daps-failure, spare3, spare2, spare1}
}
MCGFailureInformation
MCGFailureInformation-r16 ::= SEQUENCE {
criticalExtensions CHOICE {
mcgFailureInformation-r16 MCGFailureInformation-r16-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
MCGFailureInformation-r16-IEs ::= SEQUENCE {
failureReportMCG-r16 FailureReportMCG-r16 OPTIONAL,
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
FailureReportMCG-r16 ::= SEQUENCE {
failureType-r16 ENUMERATED {t310-Expiry, randomAccessProblem, rlc-MaxNumRetx,
t312-Expiry-r16, lbt-Failure-r16, beamFailureRecoveryFailure-r16,
bh-RLF-r16, spare1} OPTIONAL,
measResultFreqList-r16 MeasResultList2NR OPTIONAL,
measResultFreqListEUTRA-r16 MeasResultList2EUTRA OPTIONAL,
measResultSCG-r16 OCTET STRING (CONTAINING MeasResultSCG-Failure) OPTIONAL,
measResultSCG-EUTRA-r16 OCTET STRING OPTIONAL,
measResultFreqListUTRA-FDD-r16 MeasResultList2UTRA OPTIONAL,
...
}
MeasResultList2UTRA ::= SEQUENCE (SIZE (1..maxFreq)) OF MeasResult2UTRA-FDD-r16
MeasResult2UTRA-FDD-r16 ::= SEQUENCE {
carrierFreq-r16 ARFCN-ValueUTRA-FDD-r16,
measResultNeighCellList-r16 MeasResultListUTRA-FDD-r16
}
MeasResultList2EUTRA ::= SEQUENCE (SIZE (1..maxFreq)) OF MeasResult2EUTRA-r16
SCGFailureInformation
SCGFailureInformation ::= SEQUENCE {
criticalExtensions CHOICE {
scgFailureInformation SCGFailureInformation-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
SCGFailureInformation-IEs ::= SEQUENCE {
failureReportSCG FailureReportSCG OPTIONAL,
nonCriticalExtension SCGFailureInformation-v1590-IEs OPTIONAL
}
SCGFailureInformation-v1590-IEs ::= SEQUENCE {
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
FailureReportSCG ::= SEQUENCE {
failureType ENUMERATED {
t310-Expiry, randomAccessProblem,
rlc-MaxNumRetx,
synchReconfigFailureSCG, scg-ReconfigFailure,
srb3-IntegrityFailure, other-r16, spare1},
measResultFreqList MeasResultFreqList OPTIONAL,
measResultSCG-Failure OCTET STRING (CONTAINING MeasResultSCG-Failure) OPTIONAL,
...,
[[
locationInfo-r16 LocationInfo-r16 OPTIONAL,
failureType-v1610 ENUMERATED {scg-lbtFailure-r16, beamFailureRecoveryFailure-r16,
t312-Expiry-r16, bh-RLF-r16, beamFailure-r17, spare3, spare2, spare1} OPTIONAL
]],
[[
previousPSCellId-r17 SEQUENCE {
physCellId-r17 PhysCellId,
carrierFreq-r17 ARFCN-ValueNR
} OPTIONAL,
failedPSCellId-r17 SEQUENCE {
physCellId-r17 PhysCellId,
carrierFreq-r17 ARFCN-ValueNR
} OPTIONAL,
timeSCGFailure-r17 INTEGER (0..1023) OPTIONAL,
perRAInfoList-r17 PerRAInfoList-r16 OPTIONAL
]],
[[
perRAInfoList-v17b0 PerRAInfoList-v1660 OPTIONAL
]]
}
MeasResultFreqList ::= SEQUENCE (SIZE (1..maxFreq)) OF MeasResult2NR
SCGFailureInformationEUTRA
SCGFailureInformationEUTRA ::= SEQUENCE {
criticalExtensions CHOICE {
scgFailureInformationEUTRA SCGFailureInformationEUTRA-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
SCGFailureInformationEUTRA-IEs ::= SEQUENCE {
failureReportSCG-EUTRA FailureReportSCG-EUTRA OPTIONAL,
nonCriticalExtension SCGFailureInformationEUTRA-v1590-IEs OPTIONAL
}
SCGFailureInformationEUTRA-v1590-IEs ::= SEQUENCE {
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
FailureReportSCG-EUTRA ::= SEQUENCE {
failureType ENUMERATED {
t313-Expiry, randomAccessProblem,rlc-MaxNumRetx,
scg-ChangeFailure, spare4,
spare3, spare2, spare1},
measResultFreqListMRDC MeasResultFreqListFailMRDC OPTIONAL,
measResultSCG-FailureMRDC OCTET STRING OPTIONAL,
...,
[[
locationInfo-r16 LocationInfo-r16 OPTIONAL
]]
}
MeasResultFreqListFailMRDC ::= SEQUENCE (SIZE (1.. maxFreq)) OF MeasResult2EUTRA
UEInformationRequest
UEInformationRequest-r16 ::= SEQUENCE {
rrc-TransactionIdentifier RRC-TransactionIdentifier,
criticalExtensions CHOICE {
ueInformationRequest-r16 UEInformationRequest-r16-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
UEInformationRequest-r16-IEs ::= SEQUENCE {
idleModeMeasurementReq-r16 ENUMERATED{true} OPTIONAL, -- Need N
logMeasReportReq-r16 ENUMERATED {true} OPTIONAL, -- Need N
connEstFailReportReq-r16 ENUMERATED {true} OPTIONAL, -- Need N
ra-ReportReq-r16 ENUMERATED {true} OPTIONAL, -- Need N
rlf-ReportReq-r16 ENUMERATED {true} OPTIONAL, -- Need N
mobilityHistoryReportReq-r16 ENUMERATED {true} OPTIONAL, -- Need N
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension UEInformationRequest-v1700-IEs OPTIONAL
}
UEInformationRequest-v1700-IEs ::= SEQUENCE {
successHO-ReportReq-r17 ENUMERATED {true} OPTIONAL, -- Need N
coarseLocationRequest-r17 ENUMERATED {true} OPTIONAL, -- Need N
nonCriticalExtension SEQUENCE {} OPTIONAL
}
UEInformationResponse
UEInformationResponse-r16 ::= SEQUENCE {
rrc-TransactionIdentifier RRC-TransactionIdentifier,
criticalExtensions CHOICE {
ueInformationResponse-r16 UEInformationResponse-r16-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
UEInformationResponse-r16-IEs ::= SEQUENCE {
measResultIdleEUTRA-r16 MeasResultIdleEUTRA-r16 OPTIONAL,
measResultIdleNR-r16 MeasResultIdleNR-r16 OPTIONAL,
logMeasReport-r16 LogMeasReport-r16 OPTIONAL,
connEstFailReport-r16 ConnEstFailReport-r16 OPTIONAL,
ra-ReportList-r16 RA-ReportList-r16 OPTIONAL,
rlf-Report-r16 RLF-Report-r16 OPTIONAL,
mobilityHistoryReport-r16 MobilityHistoryReport-r16 OPTIONAL,
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension UEInformationResponse-v1700-IEs OPTIONAL
}
UEInformationResponse-v1700-IEs ::= SEQUENCE {
successHO-Report-r17 SuccessHO-Report-r17 OPTIONAL,
connEstFailReportList-r17 ConnEstFailReportList-r17 OPTIONAL,
coarseLocationInfo-r17 OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
LogMeasReport-r16 ::= SEQUENCE {
absoluteTimeStamp-r16 AbsoluteTimeInfo-r16,
traceReference-r16 TraceReference-r16,
traceRecordingSessionRef-r16 OCTET STRING (SIZE (2)),
tce-Id-r16 OCTET STRING (SIZE (1)),
logMeasInfoList-r16 LogMeasInfoList-r16,
logMeasAvailable-r16 ENUMERATED {true} OPTIONAL,
logMeasAvailableBT-r16 ENUMERATED {true} OPTIONAL,
logMeasAvailableWLAN-r16 ENUMERATED {true} OPTIONAL,
...
}
LogMeasInfoList-r16 ::= SEQUENCE (SIZE (1..maxLogMeasReport-r16)) OF LogMeasInfo-r16
LogMeasInfo-r16 ::= SEQUENCE {
locationInfo-r16 LocationInfo-r16 OPTIONAL,
relativeTimeStamp-r16 INTEGER (0..7200),
servCellIdentity-r16 CGI-Info-Logging-r16 OPTIONAL,
measResultServingCell-r16 MeasResultServingCell-r16 OPTIONAL,
measResultNeighCells-r16 SEQUENCE {
measResultNeighCellListNR MeasResultListLogging2NR-r16 OPTIONAL,
measResultNeighCellListEUTRA MeasResultList2EUTRA-r16 OPTIONAL
},
anyCellSelectionDetected-r16 ENUMERATED {true} OPTIONAL,
...,
[[
inDeviceCoexDetected-r17 ENUMERATED {true} OPTIONAL
]]
}
ConnEstFailReport-r16 ::= SEQUENCE {
measResultFailedCell-r16 MeasResultFailedCell-r16,
locationInfo-r16 LocationInfo-r16 OPTIONAL,
measResultNeighCells-r16 SEQUENCE {
measResultNeighCellListNR MeasResultList2NR-r16 OPTIONAL,
measResultNeighCellListEUTRA MeasResultList2EUTRA-r16 OPTIONAL
},
numberOfConnFail-r16 INTEGER (1..8),
perRAInfoList-r16 PerRAInfoList-r16,
timeSinceFailure-r16 TimeSinceFailure-r16,
...
}
ConnEstFailReportList-r17 ::= SEQUENCE (SIZE (1..maxCEFReport-r17)) OF ConnEstFailReport-r16
MeasResultServingCell-r16 ::= SEQUENCE {
resultsSSB-Cell MeasQuantityResults,
resultsSSB SEQUENCE{
best-ssb-Index SSB-Index,
best-ssb-Results MeasQuantityResults,
numberOfGoodSSB INTEGER (1..maxNrofSSBs-r16)
} OPTIONAL
}
MeasResultFailedCell-r16 ::= SEQUENCE {
cgi-Info CGI-Info-Logging-r16,
measResult-r16 SEQUENCE {
cellResults-r16 SEQUENCE{
resultsSSB-Cell-r16 MeasQuantityResults
},
rsIndexResults-r16 SEQUENCE{
resultsSSB-Indexes-r16 ResultsPerSSB-IndexList
}
}
}
RA-ReportList-r16 ::= SEQUENCE (SIZE (1..maxRAReport-r16)) OF RA-Report-r16
RA-Report-r16 ::= SEQUENCE {
cellId-r16 CHOICE {
cellGlobalId-r16 CGI-Info-Logging-r16,
pci-arfcn-r16 PCI-ARFCN-NR-r16
},
ra-InformationCommon-r16 RA-InformationCommon-r16 OPTIONAL,
raPurpose-r16 ENUMERATED {accessRelated, beamFailureRecovery, reconfigurationWithSync, ulUnSynchronized,
schedulingRequestFailure, noPUCCHResourceAvailable, requestForOtherSI,
msg3RequestForOtherSI-r17, spare8, spare7, spare6, spare5, spare4, spare3,
spare2, spare1},
...,
[[
spCellID-r17 CGI-Info-Logging-r16 OPTIONAL
]]
}
RA-InformationCommon-r16 ::= SEQUENCE {
absoluteFrequencyPointA-r16 ARFCN-ValueNR,
locationAndBandwidth-r16 INTEGER (0..37949),
subcarrierSpacing-r16 SubcarrierSpacing,
msg1-FrequencyStart-r16 INTEGER (0..maxNrofPhysicalResourceBlocks-1) OPTIONAL,
msg1-FrequencyStartCFRA-r16 INTEGER (0..maxNrofPhysicalResourceBlocks-1) OPTIONAL,
msg1-SubcarrierSpacing-r16 SubcarrierSpacing OPTIONAL,
msg1-SubcarrierSpacingCFRA-r16 SubcarrierSpacing OPTIONAL,
msg1-FDM-r16 ENUMERATED {one, two, four, eight} OPTIONAL,
msg1-FDMCFRA-r16 ENUMERATED {one, two, four, eight} OPTIONAL,
perRAInfoList-r16 PerRAInfoList-r16,
...,
[[
perRAInfoList-v1660 PerRAInfoList-v1660 OPTIONAL
]],
[[
msg1-SCS-From-prach-ConfigurationIndex-r16 ENUMERATED {kHz1dot25, kHz5, spare2, spare1} OPTIONAL
]],
[[
msg1-SCS-From-prach-ConfigurationIndexCFRA-r16 ENUMERATED {kHz1dot25, kHz5, spare2, spare1} OPTIONAL
]],
[[
msgA-RO-FrequencyStart-r17 INTEGER (0..maxNrofPhysicalResourceBlocks-1) OPTIONAL,
msgA-RO-FrequencyStartCFRA-r17 INTEGER (0..maxNrofPhysicalResourceBlocks-1) OPTIONAL,
msgA-SubcarrierSpacing-r17 SubcarrierSpacing OPTIONAL,
msgA-RO-FDM-r17 ENUMERATED {one, two, four, eight} OPTIONAL,
msgA-RO-FDMCFRA-r17 ENUMERATED {one, two, four, eight} OPTIONAL,
msgA-SCS-From-prach-ConfigurationIndex-r17 ENUMERATED {kHz1dot25, kHz5, spare2, spare1} OPTIONAL,
msgA-TransMax-r17 ENUMERATED {n1, n2, n4, n6, n8, n10, n20, n50, n100, n200} OPTIONAL,
msgA-MCS-r17 INTEGER (0..15) OPTIONAL,
nrofPRBs-PerMsgA-PO-r17 INTEGER (1..32) OPTIONAL,
msgA-PUSCH-TimeDomainAllocation-r17 INTEGER (1..maxNrofUL-Allocations) OPTIONAL,
frequencyStartMsgA-PUSCH-r17 INTEGER (0..maxNrofPhysicalResourceBlocks-1) OPTIONAL,
nrofMsgA-PO-FDM-r17 ENUMERATED {one, two, four, eight} OPTIONAL,
dlPathlossRSRP-r17 RSRP-Range OPTIONAL,
intendedSIBs-r17 SEQUENCE (SIZE (1..maxSIB)) OF SIB-Type-r17 OPTIONAL,
ssbsForSI-Acquisition-r17 SEQUENCE (SIZE (1..maxNrofSSBs-r16)) OF SSB-Index OPTIONAL,
msgA-PUSCH-PayloadSize-r17 BIT STRING (SIZE (5)) OPTIONAL,
onDemandSISuccess-r17 ENUMERATED {true} OPTIONAL
]]
}
PerRAInfoList-r16 ::= SEQUENCE (SIZE (1..200)) OF PerRAInfo-r16
PerRAInfoList-v1660 ::= SEQUENCE (SIZE (1..200)) OF PerRACSI-RSInfo-v1660
PerRAInfo-r16 ::= CHOICE {
perRASSBInfoList-r16 PerRASSBInfo-r16,
perRACSI-RSInfoList-r16 PerRACSI-RSInfo-r16
}
PerRASSBInfo-r16 ::= SEQUENCE {
ssb-Index-r16 SSB-Index,
numberOfPreamblesSentOnSSB-r16 INTEGER (1..200),
perRAAttemptInfoList-r16 PerRAAttemptInfoList-r16
}
PerRACSI-RSInfo-r16 ::= SEQUENCE {
csi-RS-Index-r16 CSI-RS-Index,
numberOfPreamblesSentOnCSI-RS-r16 INTEGER (1..200)
}
PerRACSI-RSInfo-v1660 ::= SEQUENCE {
csi-RS-Index-v1660 INTEGER (1..96) OPTIONAL
}
PerRAAttemptInfoList-r16 ::= SEQUENCE (SIZE (1..200)) OF PerRAAttemptInfo-r16
PerRAAttemptInfo-r16 ::= SEQUENCE {
contentionDetected-r16 BOOLEAN OPTIONAL,
dlRSRPAboveThreshold-r16 BOOLEAN OPTIONAL,
...,
[[
fallbackToFourStepRA-r17 ENUMERATED {true} OPTIONAL
]]
}
SIB-Type-r17 ::= ENUMERATED {sibType2, sibType3, sibType4, sibType5, sibType9, sibType10, sibType11, sibType12,
sibType13, sibType14, spare6, spare5, spare4, spare3, spare2, spare1}
RLF-Report-r16 ::= CHOICE {
nr-RLF-Report-r16 SEQUENCE {
measResultLastServCell-r16 MeasResultRLFNR-r16,
measResultNeighCells-r16 SEQUENCE {
measResultListNR-r16 MeasResultList2NR-r16 OPTIONAL,
measResultListEUTRA-r16 MeasResultList2EUTRA-r16 OPTIONAL
} OPTIONAL,
c-RNTI-r16 RNTI-Value,
previousPCellId-r16 CHOICE {
nrPreviousCell-r16 CGI-Info-Logging-r16,
eutraPreviousCell-r16 CGI-InfoEUTRALogging
} OPTIONAL,
failedPCellId-r16 CHOICE {
nrFailedPCellId-r16 CHOICE {
cellGlobalId-r16 CGI-Info-Logging-r16,
pci-arfcn-r16 PCI-ARFCN-NR-r16
},
eutraFailedPCellId-r16 CHOICE {
cellGlobalId-r16 CGI-InfoEUTRALogging,
pci-arfcn-r16 PCI-ARFCN-EUTRA-r16
}
},
reconnectCellId-r16 CHOICE {
nrReconnectCellId-r16 CGI-Info-Logging-r16,
eutraReconnectCellId-r16 CGI-InfoEUTRALogging
} OPTIONAL,
timeUntilReconnection-r16 TimeUntilReconnection-r16 OPTIONAL,
reestablishmentCellId-r16 CGI-Info-Logging-r16 OPTIONAL,
timeConnFailure-r16 INTEGER (0..1023) OPTIONAL,
timeSinceFailure-r16 TimeSinceFailure-r16,
connectionFailureType-r16 ENUMERATED {rlf, hof},
rlf-Cause-r16 ENUMERATED {t310-Expiry, randomAccessProblem, rlc-MaxNumRetx,
beamFailureRecoveryFailure, lbtFailure-r16,
bh-rlfRecoveryFailure, t312-expiry-r17, spare1},
locationInfo-r16 LocationInfo-r16 OPTIONAL,
noSuitableCellFound-r16 ENUMERATED {true} OPTIONAL,
ra-InformationCommon-r16 RA-InformationCommon-r16 OPTIONAL,
...,
[[
csi-rsRLMConfigBitmap-v1650 BIT STRING (SIZE (96)) OPTIONAL
]],
[[
lastHO-Type-r17 ENUMERATED {cho, daps, spare2, spare1} OPTIONAL,
timeConnSourceDAPS-Failure-r17 TimeConnSourceDAPS-Failure-r17 OPTIONAL,
timeSinceCHO-Reconfig-r17 TimeSinceCHO-Reconfig-r17 OPTIONAL,
choCellId-r17 CHOICE {
cellGlobalId-r17 CGI-Info-Logging-r16,
pci-arfcn-r17 PCI-ARFCN-NR-r16
} OPTIONAL,
choCandidateCellList-r17 ChoCandidateCellList-r17 OPTIONAL
]]
},
eutra-RLF-Report-r16 SEQUENCE {
failedPCellId-EUTRA CGI-InfoEUTRALogging,
measResult-RLF-Report-EUTRA-r16 OCTET STRING,
...,
[[
measResult-RLF-Report-EUTRA-v1690 OCTET STRING OPTIONAL
]]
}
}
SuccessHO-Report-r17 ::= SEQUENCE {
sourceCellInfo-r17 SEQUENCE {
sourcePCellId-r17 CGI-Info-Logging-r16,
sourceCellMeas-r17 MeasResultSuccessHONR-r17 OPTIONAL,
rlf-InSourceDAPS-r17 ENUMERATED {true} OPTIONAL
},
targetCellInfo-r17 SEQUENCE {
targetPCellId-r17 CGI-Info-Logging-r16,
targetCellMeas-r17 MeasResultSuccessHONR-r17 OPTIONAL
},
measResultNeighCells-r17 SEQUENCE {
measResultListNR-r17 MeasResultList2NR-r16 OPTIONAL,
measResultListEUTRA-r17 MeasResultList2EUTRA-r16 OPTIONAL
} OPTIONAL,
locationInfo-r17 LocationInfo-r16 OPTIONAL,
timeSinceCHO-Reconfig-r17 TimeSinceCHO-Reconfig-r17 OPTIONAL,
shr-Cause-r17 SHR-Cause-r17 OPTIONAL,
ra-InformationCommon-r17 RA-InformationCommon-r16 OPTIONAL,
upInterruptionTimeAtHO-r17 UPInterruptionTimeAtHO-r17 OPTIONAL,
c-RNTI-r17 RNTI-Value OPTIONAL,
...,
[[
targetCell-PCI-ARFCN-r17 PCI-ARFCN-NR-r16 OPTIONAL
]]
}
MeasResultList2NR-r16 ::= SEQUENCE(SIZE (1..maxFreq)) OF MeasResult2NR-r16
MeasResultList2EUTRA-r16 ::= SEQUENCE(SIZE (1..maxFreq)) OF MeasResult2EUTRA-r16
MeasResult2NR-r16 ::= SEQUENCE {
ssbFrequency-r16 ARFCN-ValueNR OPTIONAL,
refFreqCSI-RS-r16 ARFCN-ValueNR OPTIONAL,
measResultList-r16 MeasResultListNR
}
MeasResultListLogging2NR-r16 ::= SEQUENCE(SIZE (1..maxFreq)) OF MeasResultLogging2NR-r16
MeasResultLogging2NR-r16 ::= SEQUENCE {
carrierFreq-r16 ARFCN-ValueNR,
measResultListLoggingNR-r16 MeasResultListLoggingNR-r16
}
MeasResultListLoggingNR-r16 ::= SEQUENCE (SIZE (1..maxCellReport)) OF MeasResultLoggingNR-r16
MeasResultLoggingNR-r16 ::= SEQUENCE {
physCellId-r16 PhysCellId,
resultsSSB-Cell-r16 MeasQuantityResults,
numberOfGoodSSB-r16 INTEGER (1..maxNrofSSBs-r16) OPTIONAL
}
MeasResult2EUTRA-r16 ::= SEQUENCE {
carrierFreq-r16 ARFCN-ValueEUTRA,
measResultList-r16 MeasResultListEUTRA
}
MeasResultRLFNR-r16 ::= SEQUENCE {
measResult-r16 SEQUENCE {
cellResults-r16 SEQUENCE{
resultsSSB-Cell-r16 MeasQuantityResults OPTIONAL,
resultsCSI-RS-Cell-r16 MeasQuantityResults OPTIONAL
},
rsIndexResults-r16 SEQUENCE{
resultsSSB-Indexes-r16 ResultsPerSSB-IndexList OPTIONAL,
ssbRLMConfigBitmap-r16 BIT STRING (SIZE (64)) OPTIONAL,
resultsCSI-RS-Indexes-r16 ResultsPerCSI-RS-IndexList OPTIONAL,
csi-rsRLMConfigBitmap-r16 BIT STRING (SIZE (96)) OPTIONAL
} OPTIONAL
}
}
MeasResultSuccessHONR-r17::= SEQUENCE {
measResult-r17 SEQUENCE {
cellResults-r17 SEQUENCE{
resultsSSB-Cell-r17 MeasQuantityResults OPTIONAL,
resultsCSI-RS-Cell-r17 MeasQuantityResults OPTIONAL
},
rsIndexResults-r17 SEQUENCE{
resultsSSB-Indexes-r17 ResultsPerSSB-IndexList OPTIONAL,
resultsCSI-RS-Indexes-r17 ResultsPerCSI-RS-IndexList OPTIONAL
}
}
}
ChoCandidateCellList-r17 ::= SEQUENCE(SIZE (1..maxNrofCondCells-r16)) OF ChoCandidateCell-r17
ChoCandidateCell-r17 ::= CHOICE {
cellGlobalId-r17 CGI-Info-Logging-r16,
pci-arfcn-r17 PCI-ARFCN-NR-r16
}
SHR-Cause-r17 ::= SEQUENCE {
t304-cause-r17 ENUMERATED {true} OPTIONAL,
t310-cause-r17 ENUMERATED {true} OPTIONAL,
t312-cause-r17 ENUMERATED {true} OPTIONAL,
sourceDAPS-Failure-r17 ENUMERATED {true} OPTIONAL,
...
}
TimeSinceFailure-r16 ::= INTEGER (0..172800)
MobilityHistoryReport-r16 ::= VisitedCellInfoList-r16
TimeUntilReconnection-r16 ::= INTEGER (0..172800)
TimeSinceCHO-Reconfig-r17 ::= INTEGER (0..1023)
TimeConnSourceDAPS-Failure-r17 ::= INTEGER (0..1023)
UPInterruptionTimeAtHO-r17 ::= INTEGER (0..1023)
LoggedMeasurementConfiguration
LoggedMeasurementConfiguration-r16 ::= SEQUENCE {
criticalExtensions CHOICE {
loggedMeasurementConfiguration-r16 LoggedMeasurementConfiguration-r16-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
LoggedMeasurementConfiguration-r16-IEs ::= SEQUENCE {
traceReference-r16 TraceReference-r16,
traceRecordingSessionRef-r16 OCTET STRING (SIZE (2)),
tce-Id-r16 OCTET STRING (SIZE (1)),
absoluteTimeInfo-r16 AbsoluteTimeInfo-r16,
areaConfiguration-r16 AreaConfiguration-r16 OPTIONAL, --Need R
plmn-IdentityList-r16 PLMN-IdentityList2-r16 OPTIONAL, --Need R
bt-NameList-r16 SetupRelease {BT-NameList-r16} OPTIONAL, --Need M
wlan-NameList-r16 SetupRelease {WLAN-NameList-r16} OPTIONAL, --Need M
sensor-NameList-r16 SetupRelease {Sensor-NameList-r16} OPTIONAL, --Need M
loggingDuration-r16 LoggingDuration-r16,
reportType CHOICE {
periodical LoggedPeriodicalReportConfig-r16,
eventTriggered LoggedEventTriggerConfig-r16,
...
},
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension LoggedMeasurementConfiguration-v1700-IEs OPTIONAL
}
LoggedMeasurementConfiguration-v1700-IEs ::= SEQUENCE {
sigLoggedMeasType-r17 ENUMERATED {true} OPTIONAL, -- Need R
earlyMeasIndication-r17 ENUMERATED {true} OPTIONAL, -- Need R
areaConfiguration-r17 AreaConfiguration-r17 OPTIONAL, --Need R
nonCriticalExtension SEQUENCE {} OPTIONAL
}
LoggedPeriodicalReportConfig-r16 ::= SEQUENCE {
loggingInterval-r16 LoggingInterval-r16,
...
}
LoggedEventTriggerConfig-r16 ::= SEQUENCE {
eventType-r16 EventType-r16,
loggingInterval-r16 LoggingInterval-r16,
...
}
EventType-r16 ::= CHOICE {
outOfCoverage NULL,
eventL1 SEQUENCE {
l1-Threshold MeasTriggerQuantity,
hysteresis Hysteresis,
timeToTrigger TimeToTrigger
},
...
}
DedicatedSIBRequest
DedicatedSIBRequest-r16 ::= SEQUENCE {
criticalExtensions CHOICE {
dedicatedSIBRequest-r16 DedicatedSIBRequest-r16-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
DedicatedSIBRequest-r16-IEs ::= SEQUENCE {
onDemandSIB-RequestList-r16 SEQUENCE {
requestedSIB-List-r16 SEQUENCE (SIZE (1..maxOnDemandSIB-r16)) OF SIB-ReqInfo-r16 OPTIONAL,
requestedPosSIB-List-r16 SEQUENCE (SIZE (1..maxOnDemandPosSIB-r16)) OF PosSIB-ReqInfo-r16 OPTIONAL
} OPTIONAL,
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
SIB-ReqInfo-r16 ::= ENUMERATED { sib12, sib13, sib14, sib20-v1700, sib21-v1700, spare3, spare2, spare1 }
PosSIB-ReqInfo-r16 ::= SEQUENCE {
gnss-id-r16 GNSS-ID-r16 OPTIONAL,
sbas-id-r16 SBAS-ID-r16 OPTIONAL,
posSibType-r16 ENUMERATED { posSibType1-1, posSibType1-2, posSibType1-3, posSibType1-4, posSibType1-5, posSibType1-6,
posSibType1-7, posSibType1-8, posSibType2-1, posSibType2-2, posSibType2-3, posSibType2-4,
posSibType2-5, posSibType2-6, posSibType2-7, posSibType2-8, posSibType2-9, posSibType2-10,
posSibType2-11, posSibType2-12, posSibType2-13, posSibType2-14, posSibType2-15,
posSibType2-16, posSibType2-17, posSibType2-18, posSibType2-19, posSibType2-20,
posSibType2-21, posSibType2-22, posSibType2-23, posSibType3-1, posSibType4-1,
posSibType5-1, posSibType6-1, posSibType6-2, posSibType6-3,..., posSibType1-9-v1710,
posSibType1-10-v1710, posSibType2-24-v1710, posSibType2-25-v1710,
posSibType6-4-v1710, posSibType6-5-v1710, posSibType6-6-v1710, posSibType2-17a-v1770,
posSibType2-18a-v1770, posSibType2-20a-v1770 }
}
UEPositioningAssistanceInfo
UEPositioningAssistanceInfo-r17 ::= SEQUENCE {
criticalExtensions CHOICE {
uePositioningAssistanceInfo-r17 UEPositioningAssistanceInfo-r17-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
UEPositioningAssistanceInfo-r17-IEs ::= SEQUENCE {
ue-TxTEG-AssociationList-r17 UE-TxTEG-AssociationList-r17 OPTIONAL,
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension UEPositioningAssistanceInfo-v1720-IEs OPTIONAL
}
UEPositioningAssistanceInfo-v1720-IEs::= SEQUENCE {
ue-TxTEG-TimingErrorMarginValue-r17 ENUMERATED {tc0, tc2, tc4, tc6, tc8, tc12, tc16, tc20, tc24, tc32, tc40, tc48, tc56,
tc64, tc72, tc80} OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
UE-TxTEG-AssociationList-r17 ::= SEQUENCE (SIZE (1..maxNrOfTxTEGReport-r17)) OF UE-TxTEG-Association-r17
UE-TxTEG-Association-r17 ::= SEQUENCE {
ue-TxTEG-ID-r17 INTEGER (0..maxNrOfTxTEG-ID-1-r17),
nr-TimeStamp-r17 NR-TimeStamp-r17,
associatedSRS-PosResourceIdList-r17 SEQUENCE (SIZE(1..maxNrofSRS-PosResources-r16)) OF SRS-PosResourceId-r16,
servCellId-r17 ServCellIndex OPTIONAL
}
NR-TimeStamp-r17 ::= SEQUENCE {
nr-SFN-r17 INTEGER (0..1023),
nr-Slot-r17 CHOICE {
scs15-r17 INTEGER (0..9),
scs30-r17 INTEGER (0..19),
scs60-r17 INTEGER (0..39),
scs120-r17 INTEGER (0..79)
},
...
}
MBSInterestIndication
MBSInterestIndication-r17 ::= SEQUENCE {
criticalExtensions CHOICE {
mbsInterestIndication-r17 MBSInterestIndication-r17-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
MBSInterestIndication-r17-IEs ::= SEQUENCE {
mbs-FreqList-r17 CarrierFreqListMBS-r17 OPTIONAL,
mbs-Priority-r17 ENUMERATED {true} OPTIONAL,
mbs-ServiceList-r17 MBS-ServiceList-r17 OPTIONAL,
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
MBSBroadcastConfiguration
MBSBroadcastConfiguration-r17 ::= SEQUENCE {
criticalExtensions CHOICE {
mbsBroadcastConfiguration-r17 MBSBroadcastConfiguration-r17-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
MBSBroadcastConfiguration-r17-IEs ::= SEQUENCE {
mbs-SessionInfoList-r17 MBS-SessionInfoList-r17 OPTIONAL, -- Need R
mbs-NeighbourCellList-r17 MBS-NeighbourCellList-r17 OPTIONAL, -- Need S
drx-ConfigPTM-List-r17 SEQUENCE (SIZE (1..maxNrofDRX-ConfigPTM-r17)) OF DRX-ConfigPTM-r17 OPTIONAL, -- Need R
pdsch-ConfigMTCH-r17 PDSCH-ConfigBroadcast-r17 OPTIONAL, -- Need S
mtch-SSB-MappingWindowList-r17 MTCH-SSB-MappingWindowList-r17 OPTIONAL, -- Need R
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
SidelinkUEInformationNR
SidelinkUEInformationNR-r16::= SEQUENCE {
criticalExtensions CHOICE {
sidelinkUEInformationNR-r16 SidelinkUEInformationNR-r16-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
SidelinkUEInformationNR-r16-IEs ::= SEQUENCE {
sl-RxInterestedFreqList-r16 SL-InterestedFreqList-r16 OPTIONAL,
sl-TxResourceReqList-r16 SL-TxResourceReqList-r16 OPTIONAL,
sl-FailureList-r16 SL-FailureList-r16 OPTIONAL,
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SidelinkUEInformationNR-v1700-IEs OPTIONAL
}
SidelinkUEInformationNR-v1700-IEs ::= SEQUENCE {
sl-TxResourceReqList-v1700 SL-TxResourceReqList-v1700 OPTIONAL,
sl-RxDRX-ReportList-v1700 SL-RxDRX-ReportList-v1700 OPTIONAL,
sl-RxInterestedGC-BC-DestList-r17 SL-RxInterestedGC-BC-DestList-r17 OPTIONAL,
sl-RxInterestedFreqListDisc-r17 SL-InterestedFreqList-r16 OPTIONAL,
sl-TxResourceReqListDisc-r17 SL-TxResourceReqListDisc-r17 OPTIONAL,
sl-TxResourceReqListCommRelay-r17 SL-TxResourceReqListCommRelay-r17 OPTIONAL,
ue-Type-r17 ENUMERATED {relayUE, remoteUE} OPTIONAL,
sl-SourceIdentityRemoteUE-r17 SL-SourceIdentity-r17 OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
SL-InterestedFreqList-r16 ::= SEQUENCE (SIZE (1..maxNrofFreqSL-r16)) OF INTEGER (1..maxNrofFreqSL-r16)
SL-TxResourceReqList-r16 ::= SEQUENCE (SIZE (1..maxNrofSL-Dest-r16)) OF SL-TxResourceReq-r16
SL-TxResourceReq-r16 ::= SEQUENCE {
sl-DestinationIdentity-r16 SL-DestinationIdentity-r16,
sl-CastType-r16 ENUMERATED {broadcast, groupcast, unicast, spare1},
sl-RLC-ModeIndicationList-r16 SEQUENCE (SIZE (1.. maxNrofSLRB-r16)) OF SL-RLC-ModeIndication-r16 OPTIONAL,
sl-QoS-InfoList-r16 SEQUENCE (SIZE (1..maxNrofSL-QFIsPerDest-r16)) OF SL-QoS-Info-r16 OPTIONAL,
sl-TypeTxSyncList-r16 SEQUENCE (SIZE (1..maxNrofFreqSL-r16)) OF SL-TypeTxSync-r16 OPTIONAL,
sl-TxInterestedFreqList-r16 SL-TxInterestedFreqList-r16 OPTIONAL,
sl-CapabilityInformationSidelink-r16 OCTET STRING OPTIONAL
}
SL-TxResourceReqList-v1700 ::= SEQUENCE (SIZE (1..maxNrofSL-Dest-r16)) OF SL-TxResourceReq-v1700
SL-RxDRX-ReportList-v1700 ::= SEQUENCE (SIZE (1..maxNrofSL-Dest-r16)) OF SL-RxDRX-Report-v1700
SL-TxResourceReq-v1700 ::= SEQUENCE {
sl-DRX-InfoFromRxList-r17 SEQUENCE (SIZE (1..maxNrofSL-RxInfoSet-r17)) OF SL-DRX-ConfigUC-SemiStatic-r17 OPTIONAL,
sl-DRX-Indication-r17 ENUMERATED {on, off} OPTIONAL,
...
}
SL-RxDRX-Report-v1700 ::= SEQUENCE {
sl-DRX-ConfigFromTx-r17 SL-DRX-ConfigUC-SemiStatic-r17,
...}
SL-RxInterestedGC-BC-DestList-r17 ::= SEQUENCE (SIZE (1..maxNrofSL-Dest-r16)) OF SL-RxInterestedGC-BC-Dest-r17
SL-RxInterestedGC-BC-Dest-r17 ::= SEQUENCE {
sl-RxInterestedQoS-InfoList-r17 SEQUENCE (SIZE (1..maxNrofSL-QFIsPerDest-r16)) OF SL-QoS-Info-r16,
sl-DestinationIdentity-r16 SL-DestinationIdentity-r16
}
SL-TxResourceReqListDisc-r17 ::= SEQUENCE (SIZE (1..maxNrofSL-Dest-r16)) OF SL-TxResourceReqDisc-r17
SL-TxResourceReqDisc-r17 ::= SEQUENCE {
sl-DestinationIdentityDisc-r17 SL-DestinationIdentity-r16,
sl-SourceIdentityRelayUE-r17 SL-SourceIdentity-r17 OPTIONAL,
sl-CastTypeDisc-r17 ENUMERATED {broadcast, groupcast, unicast, spare1},
sl-TxInterestedFreqListDisc-r17 SL-TxInterestedFreqList-r16,
sl-TypeTxSyncListDisc-r17 SEQUENCE (SIZE (1..maxNrofFreqSL-r16)) OF SL-TypeTxSync-r16,
sl-DiscoveryType-r17 ENUMERATED {relay, non-Relay},
...
}
SL-TxResourceReqListCommRelay-r17 ::= SEQUENCE (SIZE (1..maxNrofSL-Dest-r16)) OF SL-TxResourceReqCommRelayInfo-r17
SL-TxResourceReqCommRelayInfo-r17 ::= SEQUENCE {
sl-RelayDRXConfig-r17 SL-TxResourceReq-v1700 OPTIONAL,
sl-TxResourceReqCommRelay-r17 SL-TxResourceReqCommRelay-r17
}
SL-TxResourceReqCommRelay-r17 ::= CHOICE {
sl-TxResourceReqL2U2N-Relay-r17 SL-TxResourceReqL2U2N-Relay-r17,
sl-TxResourceReqL3U2N-Relay-r17 SL-TxResourceReq-r16
}
SL-TxResourceReqL2U2N-Relay-r17 ::= SEQUENCE {
sl-DestinationIdentityL2U2N-r17 SL-DestinationIdentity-r16 OPTIONAL,
sl-TxInterestedFreqListL2U2N-r17 SL-TxInterestedFreqList-r16,
sl-TypeTxSyncListL2U2N-r17 SEQUENCE (SIZE (1..maxNrofFreqSL-r16)) OF SL-TypeTxSync-r16,
sl-LocalID-Request-r17 ENUMERATED {true} OPTIONAL,
sl-PagingIdentityRemoteUE-r17 SL-PagingIdentityRemoteUE-r17 OPTIONAL,
sl-CapabilityInformationSidelink-r17 OCTET STRING OPTIONAL,
...
}
SL-TxInterestedFreqList-r16 ::= SEQUENCE (SIZE (1..maxNrofFreqSL-r16)) OF INTEGER (1..maxNrofFreqSL-r16)
SL-QoS-Info-r16 ::= SEQUENCE {
sl-QoS-FlowIdentity-r16 SL-QoS-FlowIdentity-r16,
sl-QoS-Profile-r16 SL-QoS-Profile-r16 OPTIONAL
}
SL-RLC-ModeIndication-r16 ::= SEQUENCE {
sl-Mode-r16 CHOICE {
sl-AM-Mode-r16 NULL,
sl-UM-Mode-r16 NULL
},
sl-QoS-InfoList-r16 SEQUENCE (SIZE (1..maxNrofSL-QFIsPerDest-r16)) OF SL-QoS-Info-r16
}
SL-FailureList-r16 ::= SEQUENCE (SIZE (1..maxNrofSL-Dest-r16)) OF SL-Failure-r16
SL-Failure-r16 ::= SEQUENCE {
sl-DestinationIdentity-r16 SL-DestinationIdentity-r16,
sl-Failure-r16 ENUMERATED {rlf,configFailure, drxReject-v1710, spare5, spare4, spare3, spare2, spare1}
}
IABOtherInformation
IABOtherInformation-r16 ::= SEQUENCE {
dummy RRC-TransactionIdentifier,
criticalExtensions CHOICE {
iabOtherInformation-r16 IABOtherInformation-r16-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
IABOtherInformation-r16-IEs ::= SEQUENCE {
ip-InfoType-r16 CHOICE {
iab-IP-Request-r16 SEQUENCE {
iab-IPv4-AddressNumReq-r16 IAB-IP-AddressNumReq-r16 OPTIONAL,
iab-IPv6-AddressReq-r16 CHOICE {
iab-IPv6-AddressNumReq-r16 IAB-IP-AddressNumReq-r16,
iab-IPv6-AddressPrefixReq-r16 IAB-IP-AddressPrefixReq-r16,
...
} OPTIONAL
},
iab-IP-Report-r16 SEQUENCE {
iab-IPv4-AddressReport-r16 IAB-IP-AddressAndTraffic-r16 OPTIONAL,
iab-IPv6-Report-r16 CHOICE {
iab-IPv6-AddressReport-r16 IAB-IP-AddressAndTraffic-r16,
iab-IPv6-PrefixReport-r16 IAB-IP-PrefixAndTraffic-r16,
...
} OPTIONAL
},
...
},
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
IAB-IP-AddressNumReq-r16 ::= SEQUENCE {
all-Traffic-NumReq-r16 INTEGER (1..8) OPTIONAL,
f1-C-Traffic-NumReq-r16 INTEGER (1..8) OPTIONAL,
f1-U-Traffic-NumReq-r16 INTEGER (1..8) OPTIONAL,
non-F1-Traffic-NumReq-r16 INTEGER (1..8) OPTIONAL,
...
}
IAB-IP-AddressPrefixReq-r16 ::= SEQUENCE {
all-Traffic-PrefixReq-r16 ENUMERATED {true} OPTIONAL,
f1-C-Traffic-PrefixReq-r16 ENUMERATED {true} OPTIONAL,
f1-U-Traffic-PrefixReq-r16 ENUMERATED {true} OPTIONAL,
non-F1-Traffic-PrefixReq-r16 ENUMERATED {true} OPTIONAL,
...
}
IAB-IP-AddressAndTraffic-r16 ::= SEQUENCE {
all-Traffic-IAB-IP-Address-r16 SEQUENCE (SIZE(1..8)) OF IAB-IP-Address-r16 OPTIONAL,
f1-C-Traffic-IP-Address-r16 SEQUENCE (SIZE(1..8)) OF IAB-IP-Address-r16 OPTIONAL,
f1-U-Traffic-IP-Address-r16 SEQUENCE (SIZE(1..8)) OF IAB-IP-Address-r16 OPTIONAL,
non-F1-Traffic-IP-Address-r16 SEQUENCE (SIZE(1..8)) OF IAB-IP-Address-r16 OPTIONAL
}
IAB-IP-PrefixAndTraffic-r16 ::= SEQUENCE {
all-Traffic-IAB-IP-Address-r16 IAB-IP-Address-r16 OPTIONAL,
f1-C-Traffic-IP-Address-r16 IAB-IP-Address-r16 OPTIONAL,
f1-U-Traffic-IP-Address-r16 IAB-IP-Address-r16 OPTIONAL,
non-F1-Traffic-IP-Address-r16 IAB-IP-Address-r16 OPTIONAL
}
ULDedicatedMessageSegment
ULDedicatedMessageSegment-r16 ::= SEQUENCE {
criticalExtensions CHOICE {
ulDedicatedMessageSegment-r16 ULDedicatedMessageSegment-r16-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
ULDedicatedMessageSegment-r16-IEs ::= SEQUENCE {
segmentNumber-r16 INTEGER (0..15),
rrc-MessageSegmentContainer-r16 OCTET STRING,
rrc-MessageSegmentType-r16 ENUMERATED {notLastSegment, lastSegment},
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
DLDedicatedMessageSegment
DLDedicatedMessageSegment-r16 ::= SEQUENCE {
criticalExtensions CHOICE {
dlDedicatedMessageSegment-r16 DLDedicatedMessageSegment-r16-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
DLDedicatedMessageSegment-r16-IEs ::= SEQUENCE {
segmentNumber-r16 INTEGER(0..4),
rrc-MessageSegmentContainer-r16 OCTET STRING,
rrc-MessageSegmentType-r16 ENUMERATED {notLastSegment, lastSegment},
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
MobilityFromNRCommand
MobilityFromNRCommand ::= SEQUENCE {
rrc-TransactionIdentifier RRC-TransactionIdentifier,
criticalExtensions CHOICE {
mobilityFromNRCommand MobilityFromNRCommand-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
MobilityFromNRCommand-IEs ::= SEQUENCE {
targetRAT-Type ENUMERATED { eutra, utra-fdd-v1610, spare2, spare1, ...},
targetRAT-MessageContainer OCTET STRING,
nas-SecurityParamFromNR OCTET STRING OPTIONAL, -- Cond HO-ToEPCUTRAN
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension MobilityFromNRCommand-v1610-IEs OPTIONAL
}
MobilityFromNRCommand-v1610-IEs ::= SEQUENCE {
voiceFallbackIndication-r16 ENUMERATED {true} OPTIONAL, -- Need N
nonCriticalExtension SEQUENCE {} OPTIONAL
}
RRCReestablishmentRequest
RRCReestablishmentRequest ::= SEQUENCE {
rrcReestablishmentRequest RRCReestablishmentRequest-IEs
}
RRCReestablishmentRequest-IEs ::= SEQUENCE {
ue-Identity ReestabUE-Identity,
reestablishmentCause ReestablishmentCause,
spare BIT STRING (SIZE (1))
}
ReestabUE-Identity ::= SEQUENCE {
c-RNTI RNTI-Value,
physCellId PhysCellId,
shortMAC-I ShortMAC-I
}
ReestablishmentCause ::= ENUMERATED {reconfigurationFailure, handoverFailure, otherFailure, spare1}
RRCReestablishment
RRCReestablishment ::= SEQUENCE {
rrc-TransactionIdentifier RRC-TransactionIdentifier,
criticalExtensions CHOICE {
rrcReestablishment RRCReestablishment-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
RRCReestablishment-IEs ::= SEQUENCE {
nextHopChainingCount NextHopChainingCount,
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension RRCReestablishment-v1700-IEs OPTIONAL
}
RRCReestablishment-v1700-IEs ::= SEQUENCE {
sl-L2RemoteUE-Config-r17 SetupRelease {SL-L2RemoteUE-Config-r17} OPTIONAL, -- Cond L2RemoteUE
nonCriticalExtension SEQUENCE {} OPTIONAL
}
RRCReestablishmentComplete
RRCReestablishmentComplete ::= SEQUENCE {
rrc-TransactionIdentifier RRC-TransactionIdentifier,
criticalExtensions CHOICE {
rrcReestablishmentComplete RRCReestablishmentComplete-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
RRCReestablishmentComplete-IEs ::= SEQUENCE {
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension RRCReestablishmentComplete-v1610-IEs OPTIONAL
}
RRCReestablishmentComplete-v1610-IEs ::= SEQUENCE {
ue-MeasurementsAvailable-r16 UE-MeasurementsAvailable-r16 OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
RRCResumeRequest
RRCResumeRequest1
RRCResume
RRCResume ::= SEQUENCE {
rrc-TransactionIdentifier RRC-TransactionIdentifier,
criticalExtensions CHOICE {
rrcResume RRCResume-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
RRCResume-IEs ::= SEQUENCE {
radioBearerConfig RadioBearerConfig OPTIONAL, -- Need M
masterCellGroup OCTET STRING (CONTAINING CellGroupConfig) OPTIONAL, -- Need M
measConfig MeasConfig OPTIONAL, -- Need M
fullConfig ENUMERATED {true} OPTIONAL, -- Need N
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension RRCResume-v1560-IEs OPTIONAL
}
RRCResume-v1560-IEs ::= SEQUENCE {
radioBearerConfig2 OCTET STRING (CONTAINING RadioBearerConfig) OPTIONAL, -- Need M
sk-Counter SK-Counter OPTIONAL, -- Need N
nonCriticalExtension RRCResume-v1610-IEs OPTIONAL
}
RRCResume-v1610-IEs ::= SEQUENCE {
idleModeMeasurementReq-r16 ENUMERATED {true} OPTIONAL, -- Need N
restoreMCG-SCells-r16 ENUMERATED {true} OPTIONAL, -- Need N
restoreSCG-r16 ENUMERATED {true} OPTIONAL, -- Need N
mrdc-SecondaryCellGroup-r16 CHOICE {
nr-SCG-r16 OCTET STRING (CONTAINING RRCReconfiguration),
eutra-SCG-r16 OCTET STRING
} OPTIONAL, -- Cond RestoreSCG
needForGapsConfigNR-r16 SetupRelease {NeedForGapsConfigNR-r16} OPTIONAL, -- Need M
nonCriticalExtension RRCResume-v1700-IEs OPTIONAL
}
RRCResume-v1700-IEs ::= SEQUENCE {
sl-ConfigDedicatedNR-r17 SetupRelease {SL-ConfigDedicatedNR-r16} OPTIONAL, -- Cond L2RemoteUE
sl-L2RemoteUE-Config-r17 SetupRelease {SL-L2RemoteUE-Config-r17} OPTIONAL, -- Cond L2RemoteUE
needForGapNCSG-ConfigNR-r17 SetupRelease {NeedForGapNCSG-ConfigNR-r17} OPTIONAL, -- Need M
needForGapNCSG-ConfigEUTRA-r17 SetupRelease {NeedForGapNCSG-ConfigEUTRA-r17} OPTIONAL, -- Need M
scg-State-r17 ENUMERATED {deactivated} OPTIONAL, -- Need S
appLayerMeasConfig-r17 AppLayerMeasConfig-r17 OPTIONAL, -- Need M
nonCriticalExtension SEQUENCE {} OPTIONAL
}
RRCResumeComplete
RRCResumeComplete ::= SEQUENCE {
rrc-TransactionIdentifier RRC-TransactionIdentifier,
criticalExtensions CHOICE {
rrcResumeComplete RRCResumeComplete-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
RRCResumeComplete-IEs ::= SEQUENCE {
dedicatedNAS-Message DedicatedNAS-Message OPTIONAL,
selectedPLMN-Identity INTEGER (1..maxPLMN) OPTIONAL,
uplinkTxDirectCurrentList UplinkTxDirectCurrentList OPTIONAL,
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension RRCResumeComplete-v1610-IEs OPTIONAL
}
RRCResumeComplete-v1610-IEs ::= SEQUENCE {
idleMeasAvailable-r16 ENUMERATED {true} OPTIONAL,
measResultIdleEUTRA-r16 MeasResultIdleEUTRA-r16 OPTIONAL,
measResultIdleNR-r16 MeasResultIdleNR-r16 OPTIONAL,
scg-Response-r16 CHOICE {
nr-SCG-Response OCTET STRING (CONTAINING RRCReconfigurationComplete),
eutra-SCG-Response OCTET STRING
} OPTIONAL,
ue-MeasurementsAvailable-r16 UE-MeasurementsAvailable-r16 OPTIONAL,
mobilityHistoryAvail-r16 ENUMERATED {true} OPTIONAL,
mobilityState-r16 ENUMERATED {normal, medium, high, spare} OPTIONAL,
needForGapsInfoNR-r16 NeedForGapsInfoNR-r16 OPTIONAL,
nonCriticalExtension RRCResumeComplete-v1640-IEs OPTIONAL
}
RRCResumeComplete-v1640-IEs ::= SEQUENCE {
uplinkTxDirectCurrentTwoCarrierList-r16 UplinkTxDirectCurrentTwoCarrierList-r16 OPTIONAL,
nonCriticalExtension RRCResumeComplete-v1700-IEs OPTIONAL
}
RRCResumeComplete-v1700-IEs ::= SEQUENCE {
needForGapNCSG-InfoNR-r17 NeedForGapNCSG-InfoNR-r17 OPTIONAL,
needForGapNCSG-InfoEUTRA-r17 NeedForGapNCSG-InfoEUTRA-r17 OPTIONAL,
nonCriticalExtension RRCResumeComplete-v1720-IEs OPTIONAL
}
RRCResumeComplete-v1720-IEs ::= SEQUENCE {
uplinkTxDirectCurrentMoreCarrierList-r17 UplinkTxDirectCurrentMoreCarrierList-r17 OPTIONAL,
nonCriticalExtension SEQUENCE {} OPTIONAL
}
RRCRelease
RRCRelease ::= SEQUENCE {
rrc-TransactionIdentifier RRC-TransactionIdentifier,
criticalExtensions CHOICE {
rrcRelease RRCRelease-IEs,
criticalExtensionsFuture SEQUENCE {}
}
}
RRCRelease-IEs ::= SEQUENCE {
redirectedCarrierInfo RedirectedCarrierInfo OPTIONAL, -- Need N
cellReselectionPriorities CellReselectionPriorities OPTIONAL, -- Need R
suspendConfig SuspendConfig OPTIONAL, -- Need R
deprioritisationReq SEQUENCE {
deprioritisationType ENUMERATED {frequency, nr},
deprioritisationTimer ENUMERATED {min5, min10, min15, min30}
} OPTIONAL, -- Need N
lateNonCriticalExtension OCTET STRING OPTIONAL,
nonCriticalExtension RRCRelease-v1540-IEs OPTIONAL
}
RRCRelease-v1540-IEs ::= SEQUENCE {
waitTime RejectWaitTime OPTIONAL, -- Need N
nonCriticalExtension RRCRelease-v1610-IEs OPTIONAL
}
RRCRelease-v1610-IEs ::= SEQUENCE {
voiceFallbackIndication-r16 ENUMERATED {true} OPTIONAL, -- Need N
measIdleConfig-r16 SetupRelease {MeasIdleConfigDedicated-r16} OPTIONAL, -- Need M
nonCriticalExtension RRCRelease-v1650-IEs OPTIONAL
}
RRCRelease-v1650-IEs ::= SEQUENCE {
mpsPriorityIndication-r16 ENUMERATED {true} OPTIONAL, -- Cond Redirection2
nonCriticalExtension RRCRelease-v1710-IEs OPTIONAL
}
RRCRelease-v1710-IEs ::= SEQUENCE {
noLastCellUpdate-r17 ENUMERATED {true} OPTIONAL, -- Need S
nonCriticalExtension SEQUENCE {} OPTIONAL
}
RedirectedCarrierInfo ::= CHOICE {
nr CarrierInfoNR,
eutra RedirectedCarrierInfo-EUTRA,
...
}
RedirectedCarrierInfo-EUTRA ::= SEQUENCE {
eutraFrequency ARFCN-ValueEUTRA,
cnType ENUMERATED {epc,fiveGC} OPTIONAL -- Need N
}
CarrierInfoNR ::= SEQUENCE {
carrierFreq ARFCN-ValueNR,
ssbSubcarrierSpacing SubcarrierSpacing,
smtc SSB-MTC OPTIONAL, -- Need S
...
}
SuspendConfig ::= SEQUENCE {
fullI-RNTI I-RNTI-Value,
shortI-RNTI ShortI-RNTI-Value,
ran-PagingCycle PagingCycle,
ran-NotificationAreaInfo RAN-NotificationAreaInfo OPTIONAL, -- Need M
t380 PeriodicRNAU-TimerValue OPTIONAL, -- Need R
nextHopChainingCount NextHopChainingCount,
...,
[[
sl-UEIdentityRemote-r17 RNTI-Value OPTIONAL, -- Cond L2RemoteUE
sdt-Config-r17 SetupRelease { SDT-Config-r17 } OPTIONAL, -- Need M
srs-PosRRC-Inactive-r17 SetupRelease { SRS-PosRRC-Inactive-r17 } OPTIONAL, -- Need M
ran-ExtendedPagingCycle-r17 ExtendedPagingCycle-r17 OPTIONAL -- Cond RANPaging
]],
[[
ncd-SSB-RedCapInitialBWP-SDT-r17 SetupRelease {NonCellDefiningSSB-r17} OPTIONAL -- Need M
]]
}
PeriodicRNAU-TimerValue ::= ENUMERATED { min5, min10, min20, min30, min60, min120, min360, min720}
CellReselectionPriorities ::= SEQUENCE {
freqPriorityListEUTRA FreqPriorityListEUTRA OPTIONAL, -- Need M
freqPriorityListNR FreqPriorityListNR OPTIONAL, -- Need M
t320 ENUMERATED {min5, min10, min20, min30, min60, min120, min180, spare1} OPTIONAL, -- Need R
...,
[[
freqPriorityListDedicatedSlicing-r17 FreqPriorityListDedicatedSlicing-r17 OPTIONAL -- Need M
]]
}
PagingCycle ::= ENUMERATED {rf32, rf64, rf128, rf256}
ExtendedPagingCycle-r17 ::= ENUMERATED {rf256, rf512, rf1024, spare1}
FreqPriorityListEUTRA ::= SEQUENCE (SIZE (1..maxFreq)) OF FreqPriorityEUTRA
FreqPriorityListNR ::= SEQUENCE (SIZE (1..maxFreq)) OF FreqPriorityNR
FreqPriorityEUTRA ::= SEQUENCE {
carrierFreq ARFCN-ValueEUTRA,
cellReselectionPriority CellReselectionPriority,
cellReselectionSubPriority CellReselectionSubPriority OPTIONAL -- Need R
}
FreqPriorityNR ::= SEQUENCE {
carrierFreq ARFCN-ValueNR,
cellReselectionPriority CellReselectionPriority,
cellReselectionSubPriority CellReselectionSubPriority OPTIONAL -- Need R
}
RAN-NotificationAreaInfo ::= CHOICE {
cellList PLMN-RAN-AreaCellList,
ran-AreaConfigList PLMN-RAN-AreaConfigList,
...
}
PLMN-RAN-AreaCellList ::= SEQUENCE (SIZE (1.. maxPLMNIdentities)) OF PLMN-RAN-AreaCell
PLMN-RAN-AreaCell ::= SEQUENCE {
plmn-Identity PLMN-Identity OPTIONAL, -- Need S
ran-AreaCells SEQUENCE (SIZE (1..32)) OF CellIdentity
}
PLMN-RAN-AreaConfigList ::= SEQUENCE (SIZE (1..maxPLMNIdentities)) OF PLMN-RAN-AreaConfig
PLMN-RAN-AreaConfig ::= SEQUENCE {
plmn-Identity PLMN-Identity OPTIONAL, -- Need S
ran-Area SEQUENCE (SIZE (1..16)) OF RAN-AreaConfig
}
RAN-AreaConfig ::= SEQUENCE {
trackingAreaCode TrackingAreaCode,
ran-AreaCodeList SEQUENCE (SIZE (1..32)) OF RAN-AreaCode OPTIONAL -- Need R
}
SDT-Config-r17 ::= SEQUENCE {
sdt-DRB-List-r17 SEQUENCE (SIZE (0..maxDRB)) OF DRB-Identity OPTIONAL, -- Need M
sdt-SRB2-Indication-r17 ENUMERATED {allowed} OPTIONAL, -- Need R
sdt-MAC-PHY-CG-Config-r17 SetupRelease {SDT-CG-Config-r17} OPTIONAL, -- Need M
sdt-DRB-ContinueROHC-r17 ENUMERATED { cell, rna } OPTIONAL -- Need S
}
SDT-CG-Config-r17 ::= OCTET STRING (CONTAINING SDT-MAC-PHY-CG-Config-r17)
SDT-MAC-PHY-CG-Config-r17 ::= SEQUENCE {
-- CG-SDT specific configuration
cg-SDT-ConfigLCH-RestrictionToAddModList-r17 SEQUENCE (SIZE(1..maxLC-ID)) OF CG-SDT-ConfigLCH-Restriction-r17 OPTIONAL, -- Need N
cg-SDT-ConfigLCH-RestrictionToReleaseList-r17 SEQUENCE (SIZE(1..maxLC-ID)) OF LogicalChannelIdentity OPTIONAL, -- Need N
cg-SDT-ConfigInitialBWP-NUL-r17 SetupRelease {BWP-UplinkDedicatedSDT-r17} OPTIONAL, -- Need M
cg-SDT-ConfigInitialBWP-SUL-r17 SetupRelease {BWP-UplinkDedicatedSDT-r17} OPTIONAL, -- Need M
cg-SDT-ConfigInitialBWP-DL-r17 BWP-DownlinkDedicatedSDT-r17 OPTIONAL, -- Need M
cg-SDT-TimeAlignmentTimer-r17 TimeAlignmentTimer OPTIONAL, -- Need M
cg-SDT-RSRP-ThresholdSSB-r17 RSRP-Range OPTIONAL, -- Need M
cg-SDT-TA-ValidationConfig-r17 SetupRelease { CG-SDT-TA-ValidationConfig-r17 } OPTIONAL, -- Need M
cg-SDT-CS-RNTI-r17 RNTI-Value OPTIONAL, -- Need M
...
}
CG-SDT-TA-ValidationConfig-r17 ::= SEQUENCE {
cg-SDT-RSRP-ChangeThreshold-r17 ENUMERATED { dB2, dB4, dB6, dB8, dB10, dB14, dB18, dB22,
dB26, dB30, dB34, spare5, spare4, spare3, spare2, spare1}
}
BWP-DownlinkDedicatedSDT-r17 ::= SEQUENCE {
pdcch-Config-r17 SetupRelease { PDCCH-Config } OPTIONAL, -- Need M
pdsch-Config-r17 SetupRelease { PDSCH-Config } OPTIONAL, -- Need M
...
}
BWP-UplinkDedicatedSDT-r17 ::= SEQUENCE {
pusch-Config-r17 SetupRelease { PUSCH-Config } OPTIONAL, -- Need M
configuredGrantConfigToAddModList-r17 ConfiguredGrantConfigToAddModList-r16 OPTIONAL, -- Need N
configuredGrantConfigToReleaseList-r17 ConfiguredGrantConfigToReleaseList-r16 OPTIONAL, -- Need N
...
}
CG-SDT-ConfigLCH-Restriction-r17 ::= SEQUENCE {
logicalChannelIdentity-r17 LogicalChannelIdentity,
configuredGrantType1Allowed-r17 ENUMERATED {true} OPTIONAL, -- Need R
allowedCG-List-r17 SEQUENCE (SIZE (0.. maxNrofConfiguredGrantConfigMAC-1-r16)) OF ConfiguredGrantConfigIndexMAC-r16
OPTIONAL -- Need R
}
SRS-PosRRC-Inactive-r17 ::= OCTET STRING (CONTAINING SRS-PosRRC-InactiveConfig-r17)
SRS-PosRRC-InactiveConfig-r17 ::= SEQUENCE {
srs-PosConfigNUL-r17 SRS-PosConfig-r17 OPTIONAL, -- Need R
srs-PosConfigSUL-r17 SRS-PosConfig-r17 OPTIONAL, -- Need R
bwp-NUL-r17 BWP OPTIONAL, -- Need S
bwp-SUL-r17 BWP OPTIONAL, -- Need S
inactivePosSRS-TimeAlignmentTimer-r17 TimeAlignmentTimer OPTIONAL, -- Need M
inactivePosSRS-RSRP-ChangeThreshold-r17 RSRP-ChangeThreshold-r17 OPTIONAL -- Need M
}
RSRP-ChangeThreshold-r17 ::= ENUMERATED {dB4, dB6, dB8, dB10, dB14, dB18, dB22, dB26, dB30, dB34, spare6, spare5, spare4, spare3, spare2, spare1}
SRS-PosConfig-r17 ::= SEQUENCE {
srs-PosResourceSetToReleaseList-r17 SEQUENCE (SIZE(1..maxNrofSRS-PosResourceSets-r16)) OF SRS-PosResourceSetId-r16 OPTIONAL,-- Need N
srs-PosResourceSetToAddModList-r17 SEQUENCE (SIZE(1..maxNrofSRS-PosResourceSets-r16)) OF SRS-PosResourceSet-r16 OPTIONAL,-- Need N
srs-PosResourceToReleaseList-r17 SEQUENCE (SIZE(1..maxNrofSRS-PosResources-r16)) OF SRS-PosResourceId-r16 OPTIONAL,-- Need N
srs-PosResourceToAddModList-r17 SEQUENCE (SIZE(1..maxNrofSRS-PosResources-r16)) OF SRS-PosResource-r16 OPTIONAL -- Need N
}
Useful Resources¶
- 3GPP TS 38.331 — RRC protocol specification: message definitions, ASN.1, procedures
- 3GPP TS 38.300, Clause 9.2 — RRC states and state transitions overview
- 3GPP TS 38.321 — MAC: how RRC request messages are carried over RACH Msg3/MsgA
- 3GPP TR 38.804 — Study on New Radio Access Technology; Radio Interface Protocol Aspects (Foundational baseline for NR RRC design and states)
- ShareTechnote — 5G/NR: RRC Inactive
- ShareTechnote — 5G/NR: RRC Reconfiguration
-
Ryu, J. (n.d.). 5G/NR – RRC Overview. ShareTechnote. https://www.sharetechnote.com/html/5G/5G_RRC_Overview.html ↩
-
Swamy, K. (2019, September). 5G NR: UE RRC states and state transitions (Blog post). How LTE Stuff Works. http://howltestuffworks.blogspot.com/2019/09/5g-nr-ue-rrc-states-and-state.html ↩↩
-
Techplayon. (n.d.). 5G SA registration / 5G call flow. Techplayon. https://www.techplayon.com/5g-nr-sa-registration-attach-call-flow/ ↩
-
Ryu, J. (n.d.). 5G/NR – RRC Reconfiguration. ShareTechnote. https://www.sharetechnote.com/html/5G_RRC_Reconfiguration.html ↩
-
3GPP. (n.d.). NR; Radio Resource Control (RRC) protocol specification (Technical Specification TS 38.331). 3rd Generation Partnership Project. https://portal.3gpp.org/desktopmodules/Specifications/SpecificationDetails.aspx?specificationId=3197 ↩
-
3GPP. (n.d.). Study on New Radio Access Technology; Radio Interface Protocol Aspects (Technical Report TR 38.804). 3rd Generation Partnership Project. https://portal.3gpp.org/desktopmodules/Specifications/SpecificationDetails.aspx?specificationId=3070 ↩
