Try 5G Yourself¶

What You'll Need¶

• 2 VMs, each running Ubuntu — one for the Core (Open5GS), one for the RAN (UERANSIM)
  • Each VM: at least 2 vCPUs, 4 GB RAM
• Network connectivity between the two VMs, and outbound internet access on both (to pull packages and source)
• sudo access on both VMs
• Roughly 45–60 minutes

Throughout this guide, <CORE_VM_IP> and <RAN_VM_IP> refer to each VM's actual IP address on the network you set up below — you'll fill these in once your VMs exist.

Architecture Overview¶

Two VMs, two roles:

• Core VM — runs Open5GS: AMF, SMF, UPF, AUSF, UDM, and the rest of the 5GC.
• RAN VM — runs UERANSIM: nr-gnb simulates the base station, nr-ue simulates the device.

The two VMs talk to each other over NGAP (control plane, gNB↔AMF) and GTP-U (user plane, gNB↔UPF) — exactly the N2 and N3 reference points covered on the 5GC page, just running over a VM network instead of a real Uu/NG interface.

Virtual Machines Setup¶

I'm using Hyper-V here, but any hypervisor (VirtualBox, VMware) or two real Linux machines work the same way — the only hard requirement is that the two VMs can reach each other over the network.

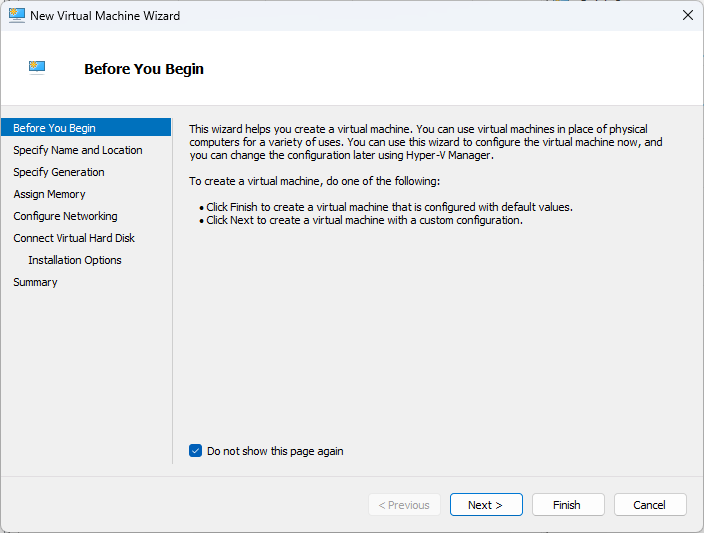

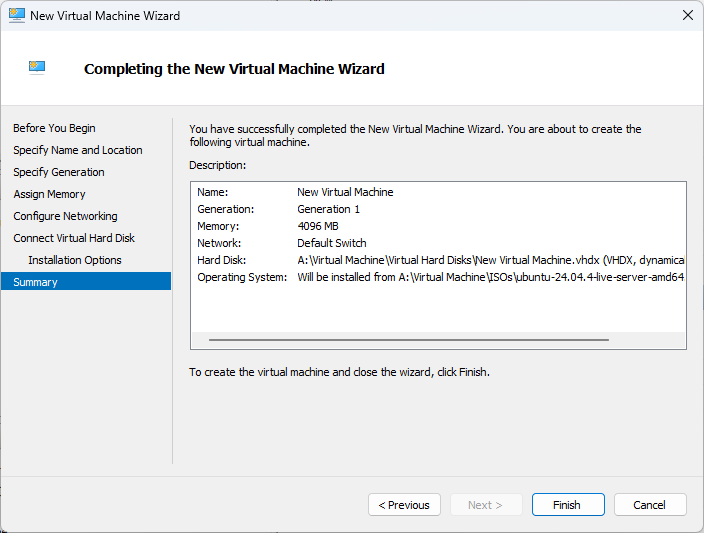

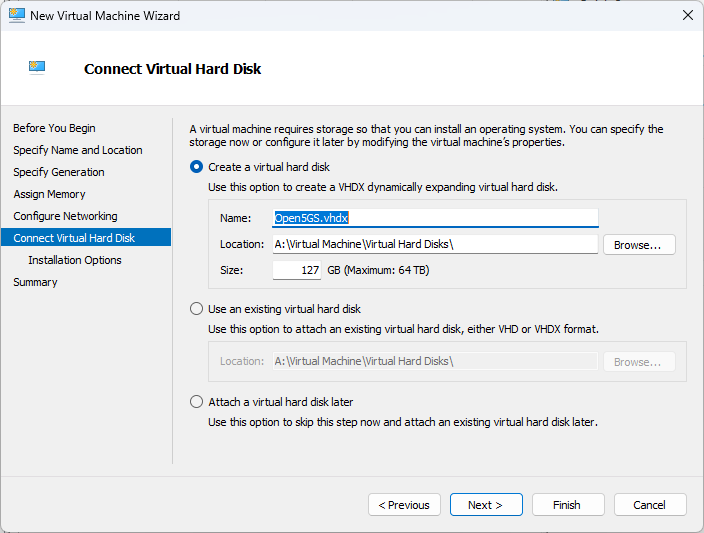

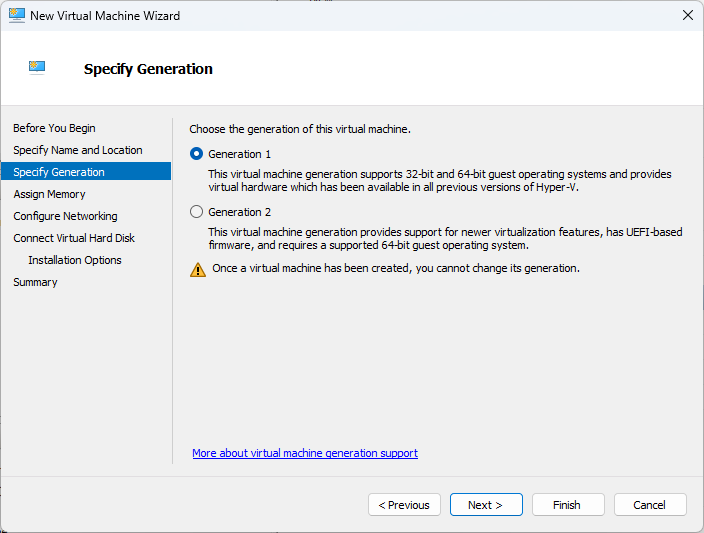

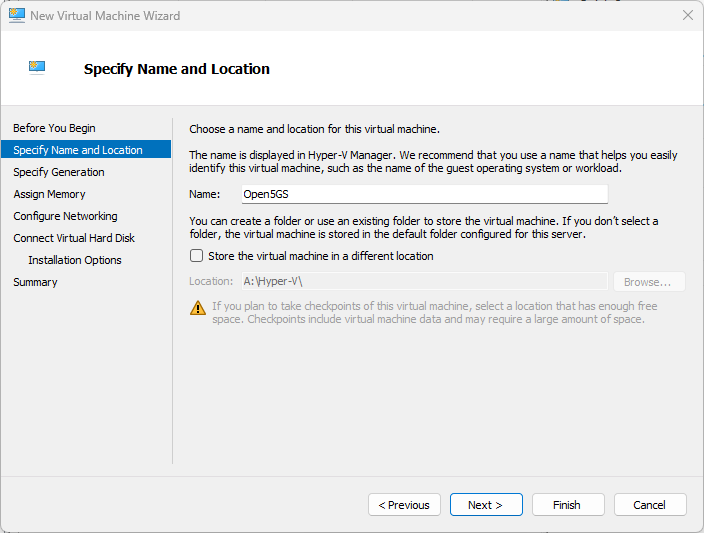

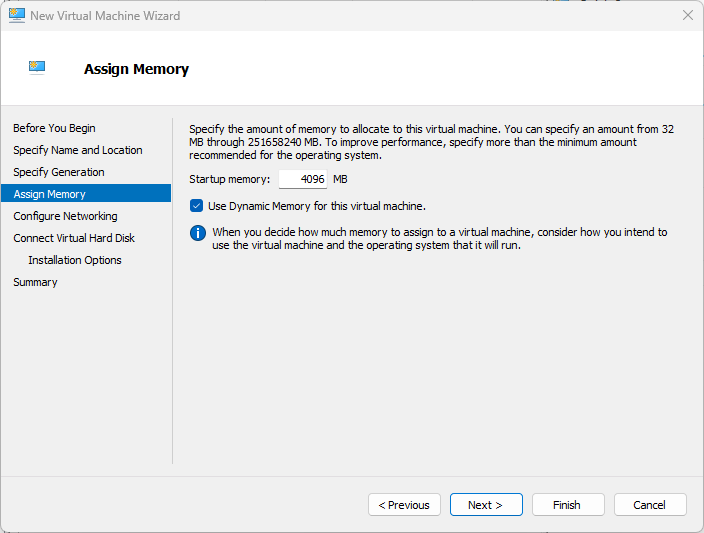

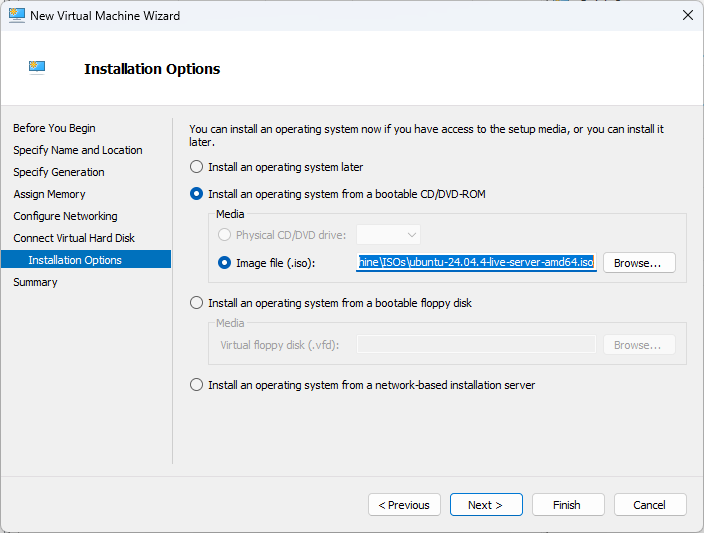

Create Hyper-V Virtual Machine¶

Configure the Server¶

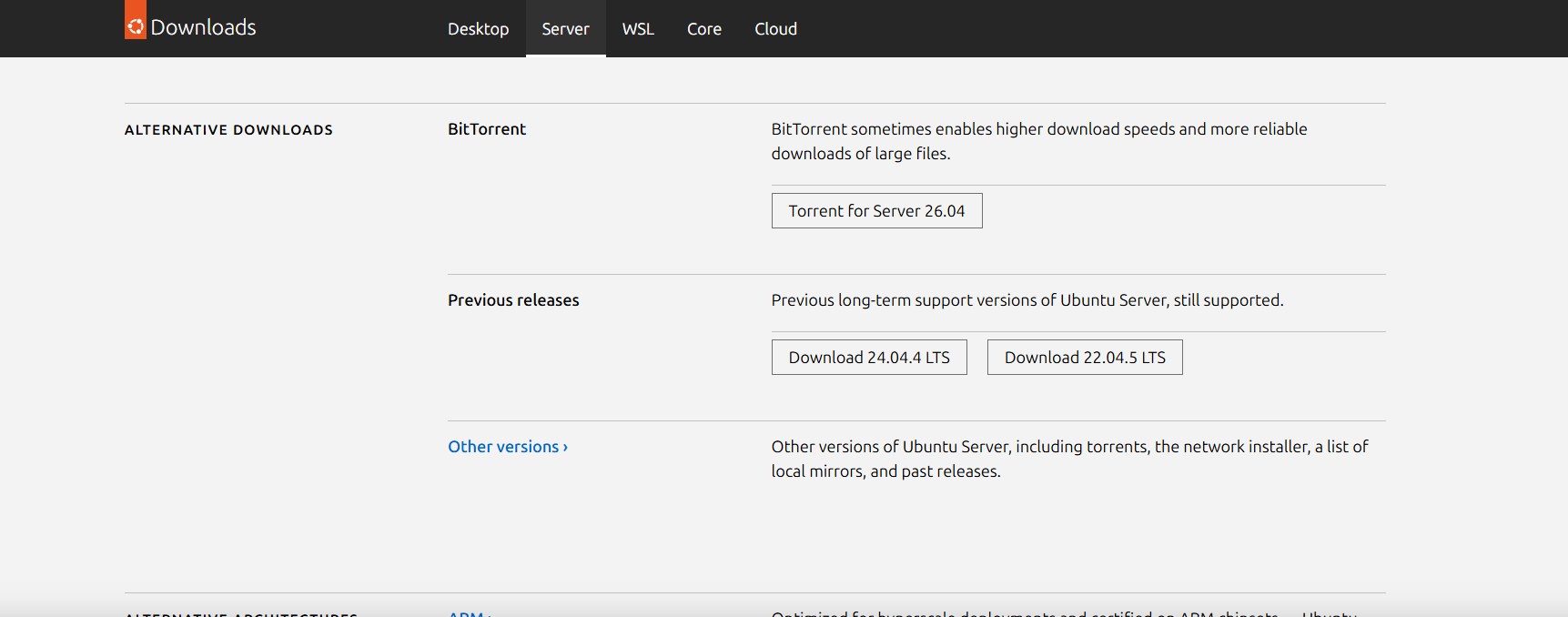

Start the server and follow the default Ubuntu Server installation flow. Everyone sets this up a little differently depending on their environment, but leaving everything at its default is fine for this lab. A reboot is required after setup completes.

Repeat this entire procedure for the second virtual machine.

Open5GS Setup¶

Step 1 — Install MongoDB¶

cat /etc/lsb-release

sudo apt-get install gnupg curl
curl -fsSL https://pgp.mongodb.com/server-8.0.asc | \
    sudo gpg -o /usr/share/keyrings/mongodb-server-8.0.gpg \
    --dearmor
echo "deb [ arch=amd64,arm64 signed-by=/usr/share/keyrings/mongodb-server-8.0.gpg ] https://repo.mongodb.org/apt/ubuntu noble/mongodb-org/8.0 multiverse" | sudo tee /etc/apt/sources.list.d/mongodb-org-8.0.list
sudo apt-get update
sudo apt-get install -y mongodb-org

sudo apt-get install gnupg curl
curl -fsSL https://pgp.mongodb.com/server-8.0.asc | \
    sudo gpg -o /usr/share/keyrings/mongodb-server-8.0.gpg \
    --dearmor
echo "deb [ arch=amd64,arm64 signed-by=/usr/share/keyrings/mongodb-server-8.0.gpg ] https://repo.mongodb.org/apt/ubuntu jammy/mongodb-org/8.0 multiverse" | sudo tee /etc/apt/sources.list.d/mongodb-org-8.0.list
sudo apt-get update
sudo apt-get install -y mongodb-org

sudo apt-get install gnupg curl
curl -fsSL https://pgp.mongodb.com/server-8.0.asc | \
    sudo gpg -o /usr/share/keyrings/mongodb-server-8.0.gpg \
    --dearmor
echo "deb [ arch=amd64,arm64 signed-by=/usr/share/keyrings/mongodb-server-8.0.gpg ] https://repo.mongodb.org/apt/ubuntu focal/mongodb-org/8.0 multiverse" | sudo tee /etc/apt/sources.list.d/mongodb-org-8.0.list
sudo apt-get update
sudo apt-get install -y mongodb-org

Start MongoDB and check its status:

sudo systemctl start mongod
sudo systemctl status mongod

For a customized or more detailed installation, see MongoDB's official Ubuntu install guide.⁴

Step 2 — Install Open5GS¶

sudo add-apt-repository ppa:open5gs/latest
sudo apt update
sudo apt install open5gs

Step 3 — Install the WebUI¶

The WebUI lets you interactively edit subscriber data — not essential (a CLI tool exists for advanced users), but much easier when starting out.

Install Node.js:

sudo apt update
sudo apt install -y ca-certificates curl gnupg
sudo mkdir -p /etc/apt/keyrings
curl -fsSL https://deb.nodesource.com/gpgkey/nodesource-repo.gpg.key | sudo gpg --dearmor -o /etc/apt/keyrings/nodesource.gpg
NODE_MAJOR=20
echo "deb [signed-by=/etc/apt/keyrings/nodesource.gpg] https://deb.nodesource.com/node_$NODE_MAJOR.x nodistro main" | sudo tee /etc/apt/sources.list.d/nodesource.list
sudo apt update
sudo apt install nodejs -y

Install the WebUI itself:

curl -fsSL https://open5gs.org/open5gs../assets/webui/install | sudo -E bash -

By default the WebUI listens on http://localhost:9999. To change the bind host/port permanently, edit the systemd service file:

sudo vim /lib/systemd/system/open5gs-webui.service

# /lib/systemd/system/open5gs-webui.service
[Unit]
Description=Open5GS WebUI
Wants=mongodb.service mongod.service

[Service]
Type=simple
WorkingDirectory=/usr/lib/node_modules/open5gs
Environment=NODE_ENV=production HOSTNAME=0.0.0.0 PORT=3000
ExecStart=/usr/bin/node server/index.js
Restart=always
RestartSec=2

[Install]
WantedBy=multi-user.target

Then reload and restart:

sudo systemctl daemon-reload
sudo systemctl restart open5gs-webui.service
sudo systemctl status open5gs-webui.service

You should see Ready on http://0.0.0.0:3000 (or whatever host/port you configured) in the status output.

Once it's running, open the WebUI in your browser at http://<CORE_VM_IP>:3000.

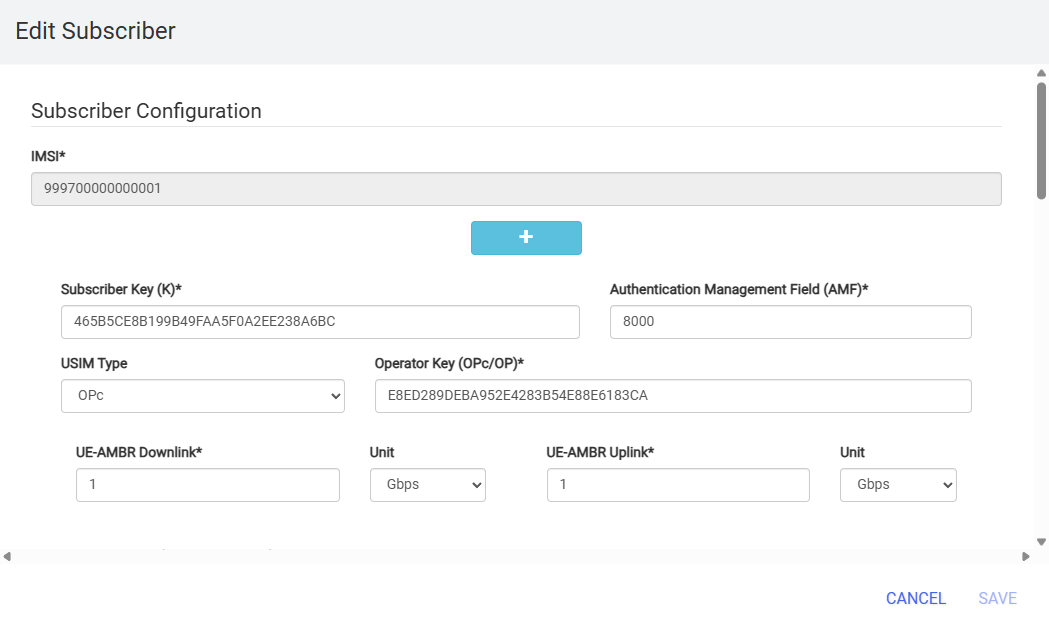

Step 4 — Register a Test Subscriber¶

UERANSIM's bundled UE config (open5gs-ue.yaml) ships with a fixed test identity and key set,² so the simplest path is to register a subscriber in the WebUI that matches it exactly:

1. Open the WebUI (http://<CORE_VM_IP>:9999, or http://localhost:9999 if you're on the Core VM itself) and log in with the default credentials admin / 1423.

2. Click + to add a new subscriber and enter:

   Field	Value
   IMSI	999700000000001
   Key	465B5CE8B199B49FAA5F0A2EE238A6BC
   OPC value	E8ED289DEBA952E4283B54E88E6183CA
   AMF	8000 (default)

3. Add a session/slice profile with DNN internet (Open5GS's default APN).

4. Save the subscriber.

This is the subscriber that Step 7's config table and the Troubleshooting section below both refer to.

Step 5 — Expose the Core to the RAN VM¶

By default, Open5GS binds its AMF (NGAP) and UPF (GTP-U) to loopback addresses (127.0.0.5 and 127.0.0.4), which only work for a single-machine setup. For two VMs, both need to bind to the Core VM's real, reachable IP instead.

Edit /etc/open5gs/amf.yaml and change the NGAP server address:

...

ngap:
  server:
    - address: <CORE_VM_IP>

...

Edit /etc/open5gs/upf.yaml and change the GTP-U server address the same way:

...

gtpu:
  server:
    - address: <CORE_VM_IP>

...

Restart both:

sudo systemctl restart open5gs-amfd
sudo systemctl restart open5gs-upfd

Step 6 — Add a Route for the UE to Reach the Internet¶

To bridge between the UPF and the WAN (internet), you must enable IP forwarding and add a NAT rule to your iptables.

Enable IPv4/IPv6 forwarding:

sudo sysctl -w net.ipv4.ip_forward=1
sudo sysctl -w net.ipv6.conf.all.forwarding=1

Add the NAT rule:

sudo iptables -t nat -A POSTROUTING -s 10.45.0.0/16 ! -o ogstun -j MASQUERADE
sudo ip6tables -t nat -A POSTROUTING -s 2001:db8:cafe::/48 ! -o ogstun -j MASQUERADE

Make sure the firewall isn't blocking traffic. Some OSes (Ubuntu included) enable firewall rules by default that will block this:

sudo ufw status
# Status: active
sudo ufw disable
# Firewall stopped and disabled on system startup
sudo ufw status
# Status: inactive

Optionally, for better security once things are working, consider:

# Accept packets in the INPUT chain arriving on the ogstun interface
sudo iptables -I INPUT -i ogstun -j ACCEPT

# Prevent UEs from connecting directly to the host running the UPF
sudo iptables -I INPUT -s 10.45.0.0/16 -j DROP
sudo ip6tables -I INPUT -s 2001:db8:cafe::/48 -j DROP

# If your core network spans multiple hosts, block UE-originated traffic
# from reaching other network functions. Replace x.x.x.x/y with the
# relevant NF's IP/subnet.
sudo iptables -I FORWARD -s 10.45.0.0/16 -d x.x.x.x/y -j DROP

UERANSIM Setup¶

Requirements:

• Ubuntu 16.04+
• CMake 3.17+
• gcc 9.0.0+
• g++ 9.0.0+

Step 1 — Build UERANSIM¶

cd ~
git clone https://github.com/aligungr/UERANSIM
cd UERANSIM
sudo apt install make gcc g++ libsctp-dev lksctp-tools iproute2 # (1)!
sudo snap install cmake --classic # (2)!

1. make, gcc/g++, and cmake are only needed for building UERANSIM. libsctp-dev, lksctp-tools, and iproute2 are also required at runtime.
2. Don't install cmake with sudo apt-get install cmake — it installs a very old version by default. Use sudo snap install cmake --classic, or build cmake from source.³

cd ~/UERANSIM
make # (1)!

1. If it builds successfully, you'll find nr-gnb, nr-ue, and nr-cli inside ~/UERANSIM/build.³

Step 2 — Configure the gNB & UE¶

Unlike a single-machine setup, the default config files won't work as-is — they point at loopback addresses that don't mean anything across two VMs.

Edit ~/UERANSIM/config/open5gs-gnb.yaml:

mcc: '999'          # Mobile Country Code value
mnc: '70'           # Mobile Network Code value (2 or 3 digits)

nci: '0x000000010'  # NR Cell Identity (36-bit)
idLength: 32        # NR gNB ID length in bits [22...32]
tac: 1              # Tracking Area Code

linkIp: <RAN_VM_IP>   # gNB's local IP address for Radio Link Simulation (usually same as local IP)
ngapIp: <RAN_VM_IP>   # gNB's local IP address for the N2 interface (usually same as local IP)
gtpIp: <RAN_VM_IP>    # gNB's local IP address for the N3 interface (usually same as local IP)

# List of AMF address information
amfConfigs:
  - address: <CORE_VM_IP>
    port: 38412

# List of supported S-NSSAIs by this gNB
slices:
  - sst: 1

# Indicates whether or not SCTP stream number errors should be ignored.
ignoreStreamIds: true

# Cell access type. When set to one of the satellite types (nr-leo, nr-meo,
# nr-geo, nr-othersat), the gNB attaches the NR-NTN TAI Information extension
# to every UserLocationInformationNR it sends to the AMF. Defaults to "nr".
cellAccessType: nr

In ~/UERANSIM/config/open5gs-ue.yaml, update the gNB search list to point at the RAN VM:

# List of gNB IP addresses for Radio Link Simulation
gnbSearchList:
  - <RAN_VM_IP>

Nothing else in open5gs-ue.yaml needs to change — its supi (imsi-999700000000001) already matches the subscriber you registered, and it doesn't need to know either VM's IP directly beyond the gNB search list above.

Running & Testing¶

Step 1 — Run It¶

In one terminal, start the simulated gNB:

cd ~/UERANSIM
./build/nr-gnb -c config/open5gs-gnb.yaml

You should see the SCTP connection to the AMF come up successfully, followed by an NG Setup exchange — this is the gNB-to-core equivalent of the state described in RRC states.

In a second terminal, start the simulated UE:

cd ~/UERANSIM
sudo ./build/nr-ue -c config/open5gs-ue.yaml

Watch for a line like:

[app] [info] PDU Session establishment is successful, TUN interface[uesimtun0, ...] is up.

That uesimtun0 interface is your simulated UE's data path — exactly what a real UE's cellular data interface represents, just implemented as a Linux TUN device.

Step 2 — Test Connectivity¶

Ping through the tunnel to confirm the full path (UE → gNB → UPF) actually carries traffic:

ping -I uesimtun0 8.8.8.8

sudo sysctl -w net.ipv4.ip_forward=1
sudo iptables -t nat -A POSTROUTING -s 10.45.0.0/16 ! -o ogstun -j MASQUERADE

If that ping succeeds, you have a complete, working 5G SA data path — Registration → PDU Session Establishment → user-plane traffic — running across two VMs, with no physical radio involved anywhere.

Debugging & Log Collection¶

Once things are running, here's how to actually see what's happening at each layer.

Wireshark¶

On either VM, capture the interface carrying the traffic you care about:

sudo tcpdump -i <interface> -w capture.pcap

• On the Core VM, capture on the interface facing the RAN VM to see NGAP and GTP-U.
• On the RAN VM, uesimtun0 shows the UE's actual user-plane traffic post-decapsulation.

Open the resulting .pcap in Wireshark and filter on ngap, gtpv2, or nas-5gs to isolate the signalling you're interested in — this is a good way to see the RRC and NAS messages from earlier pages as real captured packets rather than diagrams.

Open5GS Debug Logs¶

Each Open5GS NF logs independently via systemd. To follow the AMF live, for example:

sudo journalctl -u open5gs-amfd -f

For more verbose output, set logger: level: debug in the relevant NF's config file (e.g., /etc/open5gs/amf.yaml) and restart that NF.

UERANSIM Logs¶

UERANSIM logs directly to the terminal it's running in — the nr-gnb/nr-ue output you already saw in Step 8. To keep a copy for later, redirect it:

./build/nr-gnb -c config/open5gs-gnb.yaml | tee gnb.log

Troubleshooting¶

Useful Resources¶

• Open5GS Quickstart — official install and configuration guide
• Open5GS GitHub
• UERANSIM Installation Wiki
• UERANSIM Configuration Wiki
• MongoDB 8.0 on Ubuntu — official install guide
• 3GPP TS 23.501 — 5G System architecture, the specification both projects implement
• 3GPP TS 38.413 — NGAP, the protocol carrying gNB ↔ AMF signalling you'll see in the logs
