LwM2M

Summary

  • LwM2M (Lightweight Machine-to-Machine) is a device management standard from OMA SpecWorks, purpose-built for IoT devices too constrained for heavier management protocols — think a microcontroller with a fraction of a megabyte of RAM, running for years on a battery.1
  • It's built as a stack: LwM2M (device management logic) on top of CoAP (a lightweight, REST-like transport) on top of DTLS (security) on top of UDP.
  • Everything a device exposes — its battery level, its firmware version, a sensor reading, a configuration setting — is modeled the same standardized way: as a Resource, inside an Object, addressable by a simple URI-like path.

Why LwM2M Exists

Managing millions of deployed IoT devices — checking they're online, reading their status, updating their configuration, pushing firmware updates — is a genuinely different problem from managing servers or PCs. LwM2M was designed specifically for devices with real constraints: as little as 40 MHz of CPU, 100 KB of flash, and 10 KB of RAM, expected to run for years on limited power over unreliable, low-bandwidth networks (cellular, LPWA).2 Heavier device-management protocols built for a different era (SNMP, TR-069/CWMP) simply assume more headroom than devices like this have.

Architecture

LwM2M follows a client-server model, with three roles:

  • LwM2M Client — runs on the constrained device itself, exposing its data and accepting management operations. Everything a Client exposes is organized into a strict three-level hierarchy:3
    • Object — a category of functionality (e.g., Object 3 is "Device," Object 5 is "Firmware Update")
    • Object Instance — a specific instance of that Object (most Objects have exactly one instance; some, like Connectivity, can have several)
    • Resource — an individual data point or action inside that instance (e.g., Resource 1 on the Device Object is the manufacturer name)
      • Every Resource is addressable by a simple path: /{Object ID}/{Instance ID}/{Resource ID} — for example, /1/0/8 is the Registration Update Trigger Resource on Instance 0 of the Server Object.4
  • LwM2M Server — the management platform (often cloud-hosted) that talks to Clients — reads their data, writes configuration, triggers actions
  • LwM2M Bootstrap Server — a separate, specialized server whose only job is provisioning a Client with the credentials and Server address it needs before it can talk to a real LwM2M Server

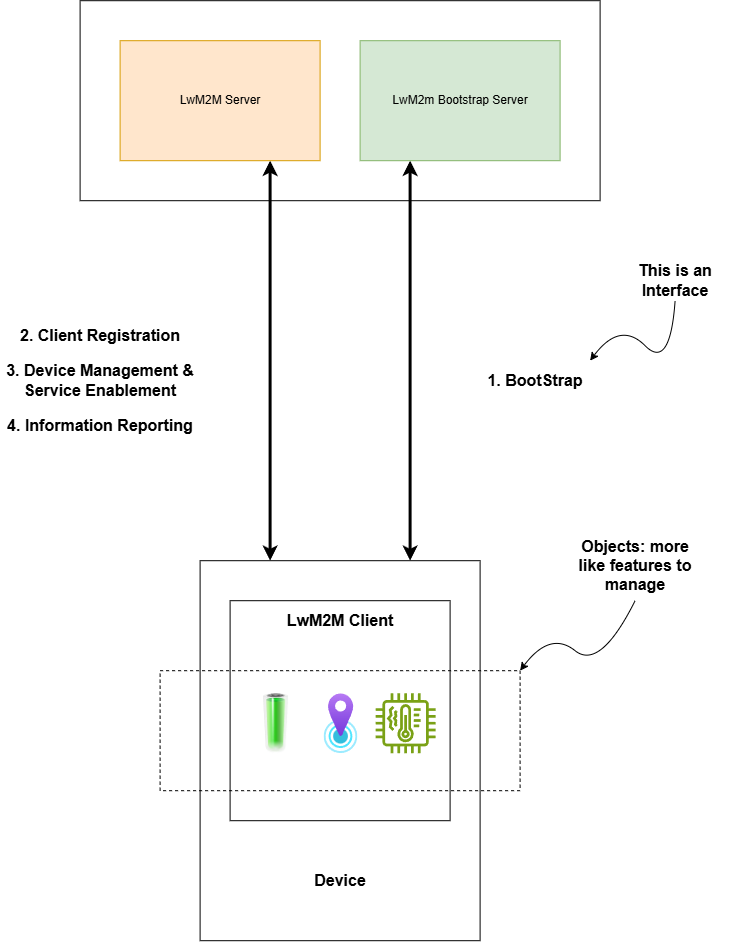

LwM2M Architecture Overview

Figure 1. LwM2M architecture overview — Client, Server, and Bootstrap Server3

Why bootstrapping is a separate role?

A device fresh off the factory line doesn't know which server to register with, or what credentials to use — that's a chicken-and-egg problem a regular LwM2M Server can't solve on its own. The Bootstrap Server exists specifically to hand a Client everything it needs (security keys, the target Server's address) so it can then perform a normal registration.

The Object Registry

Unfinished Object Registry Table

Haven’t implemented a searchable table here yet. I’ll add it if I have time....

Object ID Object Purpose
0 Security Credentials and keying material for talking to a Server/Bootstrap Server
1 Server Server connection parameters (lifetime, binding mode)
3 Device Manufacturer, model, firmware version, battery level, and similar device info
4 Connectivity Monitoring Network bearer type, signal strength, and similar connectivity info
5 Firmware Update Triggers and reports on firmware update operations

Table 1. Core LwM2M Objects

The Object catalog isn't fixed

Beyond the core Objects, the IPSO Smart Objects project (also under OMA SpecWorks) defines a much larger, reusable catalog of common sensor/actuator Objects, and anyone can register a custom Object with OMNA (Open Mobile Naming Authority) to get their own unique Object ID.1

The Four Interfaces

All Client-Server communication happens through exactly four defined interfaces:3

Interface Purpose
Bootstrap Provisions the Client with the credentials and Server info it needs to register
Client Registration The Client registers with a Server, advertising which Objects it supports
Device Management & Service Enablement The Server reads, writes, or executes Resources on the Client
Information Reporting The Client sends ongoing updates (observations) of Resource values to the Server

Protocal Stack Overview

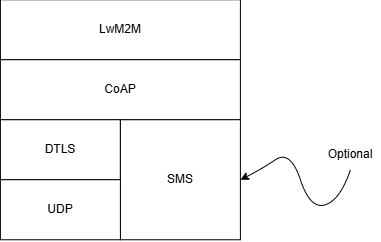

LwM2M Protocal Stack Overview

Figure 2. LwM2M Protocal Stack Overview

CoAP: The Transport Underneath

LwM2M doesn't invent its own wire protocol — it's built entirely on CoAP (Constrained Application Protocol), defined by the IETF CoRE working group specifically to bring REST-style interaction to constrained devices, over UDP instead of TCP.5

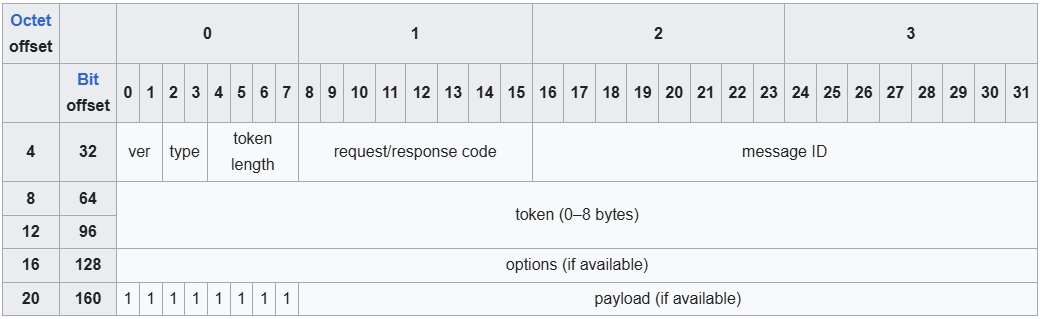

CoAP Message Header Format

Figure 3. CoAP message header format7

CoAP deliberately mirrors HTTP where it makes sense, and diverges where constrained devices need it to:

  • Same basic methods — GET, POST, PUT, DELETE, mapping cleanly onto LwM2M's read/write/execute/delete operations
  • A tiny, fixed 4-byte header, instead of HTTP's larger, text-based headers
  • Asynchronous, message-based exchange over UDP, instead of HTTP's synchronous, connection-oriented model
  • Confirmable (CON) vs. Non-confirmable (NON) messages — CON messages are retransmitted until acknowledged, giving UDP a reliability layer HTTP gets for free from TCP; NON messages are fire-and-forget

The Observe option is what powers Information Reporting

CoAP's Observe extension lets a client subscribe to a resource and receive updates whenever it changes, without repeatedly polling — this is the exact mechanism behind LwM2M's Information Reporting interface.

DTLS: Securing LwM2M

Because CoAP runs over UDP rather than TCP, LwM2M can't use ordinary TLS — TLS assumes a reliable, ordered stream that UDP doesn't provide. Instead, LwM2M secures every interface with DTLS (Datagram Transport Layer Security), which adapts TLS's same guarantees (confidentiality, integrity, authentication) to work over UDP's unreliable, unordered delivery.3

Every Security Object Instance on the Client holds the keying material DTLS needs — which security mode is in use, the relevant keys or certificates — and that same Object is used whether the DTLS session in question is with a Bootstrap Server or a regular LwM2M Server.6

LwM2M Security Modes

The Security Object supports several distinct ways to establish a DTLS session:6

Mode How it works
NoSec No security at all — plain CoAP, no DTLS. Acceptable only in trusted, isolated environments (e.g., local testing)
PSK (Pre-Shared Key) Both sides already share a secret key, provisioned out-of-band. LwM2M distinguishes strong (high-entropy) PSKs from weak (low-entropy, PIN-like) ones, which require a specific, more conservative cipher suite
RPK (Raw Public Key) Public-key cryptography without a full X.509 certificate chain — a lighter-weight alternative to full certificate-based auth
Certificate Full X.509 certificate-based authentication, the same general model as standard web TLS

Table 2. LwM2M Security Modes
